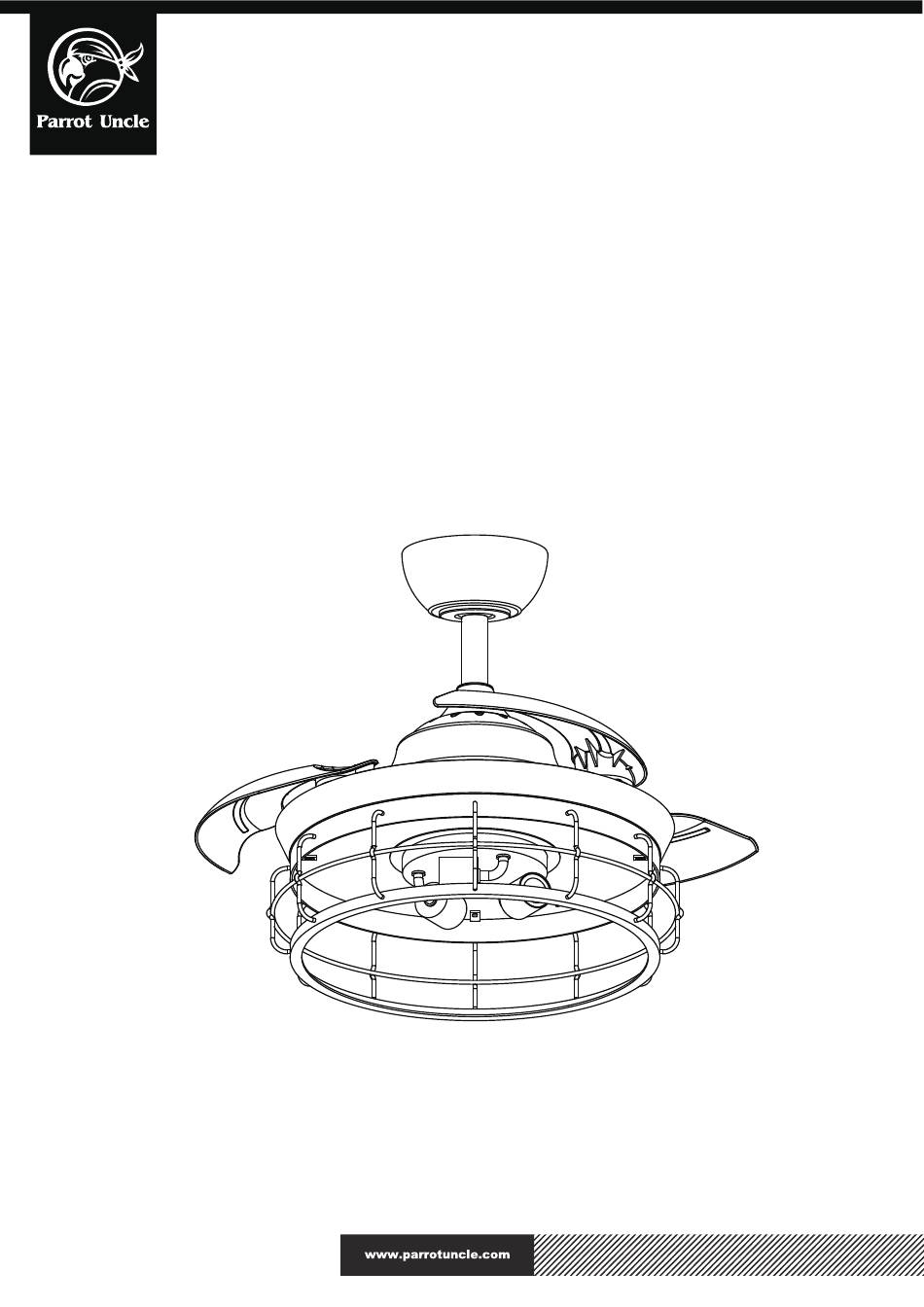

- Page 1 F3504QQ110V CEILING FAN INSTALLATION MANUAL READ AND SAVE THESE INSTRUCTIONS English...
-
Page 2: Safety Information
F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Safety Information To reduce the risk of electric shock, the electricity WARNING: To reduce the risk of personal injury, has been turned off at the circuit breaker or fuse do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Safety Tip
F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER THANK YOU FOR YOUR PURCHASE Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all instructions before using the product. - Page 4 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Mounting screws Wood screws (2PCS) (4PCS) Plastic wire nut Washer (2PCS) (7PCS) Balance tapes (2PCS) Spring washer Screw for light...
- Page 5 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Loose 2 screws of the mounting bracket under the canopy, removed the mounting bracket from the canopy. INSTALLING THE MOUNTING BRACKET: The ceiling fan must be installed in a location so that the blades are 12”...
- Page 6 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Install the suspension system components of the product as shown in the diagram. Carefully lift the fan motor assembly onto the mounting bracket that was attached to the outlet box. Turn the entire assembly until the check tab (stopper of bracket) drops into the notch of the downrod ball and seats firmly.
- Page 7 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Connect the wires of the fan main unit with remote controller, connect the remote controller to the power supply using wire nuts.
- Page 8 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Install 3 E26 LED bulbs (not included). Use the 3 screws removed to lock the light base to the main unit.
-
Page 9: Remote Controller
F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Remote controller INSTRUCTION OF INSTALLATION AND OPERATION 1. INSTALLING RECEIVER IN FAN: a. Remove power from the circuit. INPUT CODE CODE b. - Page 10 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER 2. OPERATING TRANSMITTER: Operating the buttons on the panel of the transmitter. 3 key -for fan high speed. 2 key-for fan medium speed.
- Page 11 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER WARNING INGESTION HAZARD: KEEP This product contains a new and used batteries OUT OF BEACH OF CHILDREN button cell or coin battery.
-
Page 12: Product Size
F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER PRODUCT SIZE Dia 5.9 in. (Ø150mm) Dia 1.04 in. x4 in. or 10 in. (Ø26.5mm x100mm or 250mm) Dia 16.1 in. (Ø410mm) Dia 16.9 in. - Page 13 F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER TROUBLESHOOTING GUIDE Table of Contents 1. Fan / Remote is not working 2. Fan is noisy 3. Fan Wobbles 4. Light is not working...
-
Page 14: After Installation
F3504QQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER AFTER INSTALLATION WOBBLE The fan blades have been adjusted in the factory to minimize any wobble NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER CROMMET.
