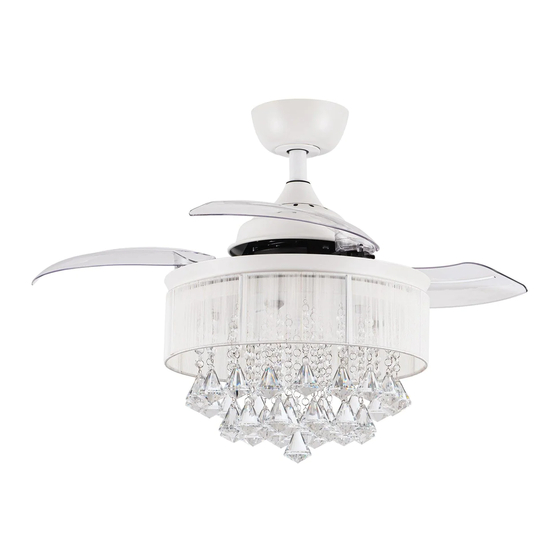

Parrot Uncle F3502Q110V Installation & Operating Instructions Manual

Parrot Uncle F3502Q110V Installation & Operating Instructions Manual

Advertisement

Quick Links

Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all
instructions before using the product
SAFETY TIP
1.
To avoid possible electric shock, turn off the electricity at the main fuse box or circuit panel before you begin the fan installation or
before servicing the fan or installing accessories.
2.
Read all instructions and safety information carefully before installing your fan and save these instructions.
3.
Make sure all electrical connections comply with local codes or ordinances and the National Electrical Code. If you are unfamiliar with
electric wiring, please use a qualified and licensed electrician.
4.
Make sure you have a location selected for your fan that allow clear space for the blades to rotate,and at least seven (7) feet of clearance betweem
the floor and the fan blade tips. The fan should be mounted at leaet thirty (30) inches ftom walls or other upright structures.
5.
WARNING: The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 pounds. To
reduce the risk of fire, electric shock or personal injury, mount to the outlet box marked acceptable for fan supported and use mounting
screws provided with the outlet box. The box must be supported directly by the building structure.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting
6.
screws provided with the outlet box most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
7.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must UL listed and marked suitable for use with the
model fan you are installing. Switches must be UL. general use switches. Refer to the instructions packaged with the light kits and
switches for proper assembly.
8.
After installation is complete, check that all connections are absolutely secure.
9.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device, or rheostat.
10.
11.
Do not separate the reverse switch until the fan has come to a complete stop.
12.
Do not insert anything into the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as "flanges") during assembly or after
13.
installation. Do not insert objects in the path of the blades.
14.
To avoid personal injury or damsge to the fan and other items,be cautious when working around or cleaning the fan.
15.
Do not use water or detergent when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may
may occur. It must be understood that common sense and caution are necessary factors in the nstallation and operation and operation of this fan.
NOTE: This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities are
different or are impaired, or lack of experience or knowledge, unless such persons are supervised or trained to operate the appliance
by a person responsible for their safety.
NOTE: Children should be supervised to ensure that they do not use appliances as a toy.
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
THANK YOU FOR YOUR PURCHASE
F3502Q110V/F3502BK110V
F3502WH110V
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the F3502Q110V and is the answer not in the manual?

Questions and answers

Summary of Contents for Parrot Uncle F3502Q110V

  • Page 1 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER THANK YOU FOR YOUR PURCHASE Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all...
  • Page 2 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Wood screws (2PCS) Mounting screws (2PCS) Wood screws (4PCS) Balance tapes (2PCS) washer (2PCS) Screws for light (1PCS) spring washer (2PCS)
  • Page 3 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Outlet box washers spring washer...
  • Page 4 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Finish Finish...
  • Page 5 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Use wire connecting nuts supplied with the fan FROM POWER SOURCE AC 110- 120 VOLT 60Hz 3.5AMPS. RED or BLACK...
  • Page 6 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER White Blue White Blue...
  • Page 7 F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Finish Finish...
  • Page 8: Care And Cleaning

    F3502Q110V/F3502BK110V F3502WH110V Installation & Operating Instructions for the Parrotuncle Owner's Installation ,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION WOBBLE” The fan blades have been adjusted in the factory to minimize any wobble NOTE:CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER CROMMET.
  • Page 9: Conseils De Sécurité

    F3502 Instructions d'installation et de fonctionnement Manuel d'installation du propriétaire de Parrotuncle Avertissement: coupez l'alimentation au fusible ou au disjoncteur Merci pour votre achat Merci d'avoir acheté ce produit de qualité. Pour assurer le bon fonctionnement et la sécurité, veuillez lire et conserver toutes les instructions avant utilisation.
  • Page 10 Wood screws (2PCS) Mounting screws (2PCS) Wood screws (4PCS) Balance tapes (2PCS) washer (2PCS) Screws for light (1PCS) spring washer (2PCS) Plastic wire nut (6PCS) White White Black Black or Red Blue 2h 4h 8h REMOTE CONTROL(1PCS) Light shade Crystal A (18PCS) Crystal B (12PCS)
  • Page 11 Outlet box washers spring washer...
  • Page 12 Finish Finish...
  • Page 13 Use wire connecting nuts supplied with the fan FROM POWER SOURCE AC 110- 120 VOLT 60Hz 3.5AMPS. RED or BLACK WHITE INPUT OUTPUT BLUE BLACK WHITE BLACK RECEIVER WHITE BLUE WIRE NUT CANOPY Use wire connecting nuts supplied with the remote controller.
  • Page 14 White Blue White Blue...
  • Page 15 Finish Finish...
  • Page 16 F3502 Instructions d'installation et de fonctionnement Manuel d'installation du propriétaire de Parrotuncle Avertissement: coupez l'alimentation au fusible ou au disjoncteur Après l'installation Swing Les pales du ventilateur ont été ajustées en usine pour minimiser toute oscillation Remarque: Les ventilateurs de plafond ont tendance à se déplacer pendant le fonctionnement car ils sont montés sur des anneaux en caoutchouc.
