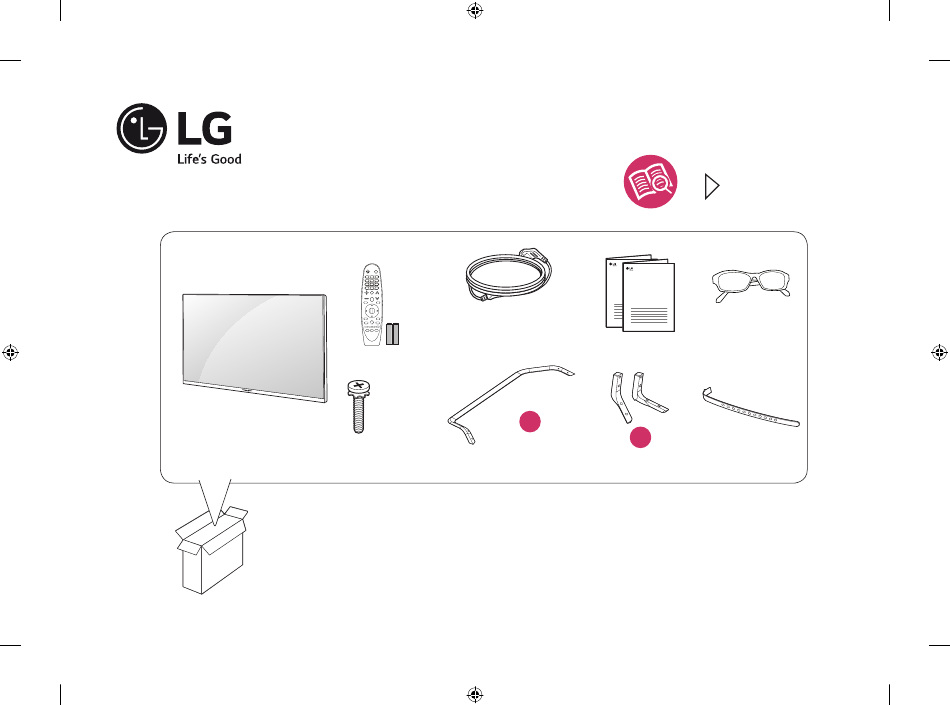

40/43/49/55/60/65UF77**
40/43/49/55/60/65UF80**
49/55/60/65UF85**
AA
X 8
(M4 X L14)
a
LED TV
UF77**
UF80**
UF85**
www.lg.com
UF85**
b
P/No: MFL68901402 (1503-REV04)
Printed in Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UF80 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG UF80 Series

Summary of Contents for LG UF80 Series

  • Page 1 LED TV UF77** UF80** UF85** www.lg.com 40/43/49/55/60/65UF77** UF85** 40/43/49/55/60/65UF80** 49/55/60/65UF85** (M4 X L14) P/No: MFL68901402 (1503-REV04) Printed in Korea...
  • Page 2 English Read Safety and Reference. У а а П а П а а а а Р П Р O’zbekcha а а а а а а а а А а а аа аа а аа Română Citiţi Siguranţă şi referinţe.
  • Page 5 UF77** UF80** SVC ONLY 13/18V ANTENNA / 700mA Max CABLE IN Satellite IN VIDEO AUDIO VIDEO AUDIO MONO...
  • Page 6 UF85** SVC ONLY 13/18V 700mA Max ANTENNA / CABLE IN Satellite IN VIDEO AUDIO MONO VIDEO AUDIO...
  • Page 8 40UF778V-ZA 43UF778V-ZA 40UF7787-ZA 43UF7787-ZA 40UF7789-ZA 43UF7789-ZA 40UF800V-ZA 43UF800V-ZA 40UF8007-ZA 43UF8007-ZA 40UF8009-ZA 43UF8009-ZA 906 X 576 X 218 971 X 625 X 218 (mm) 906 X 524 X 56.7 971 X 570 X 56.4 (mm) 10.0 11.4 (kg) 10.5 (kg) AC 100 - 240 V ~ 50 / 60 Hz Power requirement 110 W 110 W...
  • Page 9 49UF850V-ZB 55UF850V-ZB 60UF850V-ZB 65UF850V-ZB 49UF8507-ZB 55UF8507-ZB 60UF8507-ZB 65UF8507-ZB 49UF8509-ZB 55UF8509-ZB 60UF8509-ZB 65UF8509-ZB 49UF851V-ZC 55UF851V-ZC 60UF851V-ZC 65UF851V-ZC 49UF8517-ZC 55UF8517-ZC 60UF8517-ZC 65UF8517-ZC 49UF8519-ZC 55UF8519-ZC 60UF8519-ZC 65UF8519-ZC 49UF852V-ZE 55UF852V-ZE 60UF852V-ZE 65UF852V-ZE 49UF8527-ZE 55UF8527-ZE 60UF8527-ZE 65UF8527-ZE 49UF8529-ZE 55UF8529-ZE 60UF8529-ZE 65UF8529-ZE 49UF853V-ZE 55UF853V-ZE 60UF853V-ZE 65UF853V-ZE 49UF8537-ZE 55UF8537-ZE 60UF8537-ZE...
  • Page 10 Данные по энергоэффективности для моделей телевизоров LG * Указанные модели телевизоров не имеют «выключенного режима» Для полного отключения телевизора - отсоедините его от сети питания. Удельная Потребляемая Потребляемая Удельная Потребляемая Потребляемая мощность мощность мощность мощность мощность мощность Модель рабочего режима: изделием...
  • Page 11 Удельная Потребляемая Потребляемая Удельная Потребляемая Потребляемая мощность мощность мощность мощность мощность мощность Модель рабочего режима: изделием в изделием в Модель рабочего режима: изделием в изделием в Вт/см режиме ожидания: выключенном Вт/см режиме ожидания: выключенном Вт режиме Вт режиме 49UF850V-ZB 60UF850V-ZB 49UF8507-ZB 60UF8507-ZB 49UF8509-ZB...
  • Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL68780141* P/NO : MFL68780141 (1603-REV05) Printed in Korea...

  • Page 14: Safety Instructions

    Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with WARNING Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Do not place the TV and/or remote control in the following environments: • ...
  • Page 15 Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or inflammable objects such as paper and matches. Children must pay particular attention.
  • Page 16 Only use the attachments / accessories specified by the manufacturer. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. When installing the antenna, consult with a qualified service technician.
  • Page 17 We recommend that you maintain a distance of at least 2 to 7 times When connecting external devices such as video game consoles, make the diagonal screen size when watching TV. If you watch TV for a long sure the connecting cables are long enough. Otherwise, the product period of time, this may cause blurred vision.
  • Page 18 As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.
  • Page 19 Viewing 3D imaging (Only 3D models) WARNING If the product feels cold to the touch, there may be a small “flicker” Viewing environment when it is turned on. This is normal, there is nothing wrong with product. •  Viewing Time - - When watching 3D contents, take 5 - 15 minute breaks every hour.
  • Page 20 < 18 mm Cautions when using the 3D glasses •  Make sure to use LG 3D glasses. Otherwise, you may not be able to •  Use a certified cable with the HDMI logo attached. view 3D videos properly. •  If you do not use a certified HDMI cable, the screen may not display • ...

  • Page 21: Maintenance

    These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies. (Depending on model) AG-F*** AN-MR600 AG-F***DP Cinema 3D Glasses Magic Remote Dual Play Glasses AN-VC550 LG Audio Device Smart camera...

  • Page 22: Lifting And Moving The Tv

    Lifting and moving the TV Using the joystick button Please note the following advice to prevent the TV from being scratched (Image shown may differ from your TV.) or damaged and for safe transportation regardless of its type and size. You can simply operate the TV functions, pressing or moving the joystick • ...

  • Page 23: Mounting On A Table

    We recommend the use The Kensington security system connector is located at the rear of the of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with TV. For more information of installation and using, refer to the manual cables connected.
  • Page 24 •  If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

  • Page 25: Connections (Notifications)

    Antenna connection •  Depending on the shape of the stand, use a flat tool to remove the stand cover as illustrated below. (e.g., a flat screwdriver) (Only Connect the TV to a wall antenna socket with an RF cable (75 Ω). when the item of the following form is provided) • ...

  • Page 26: Remote Control

    Remote control CI module connection (Depending on model) The descriptions in this manual are based on the buttons on the remote View the encrypted (pay) services in digital TV mode. control. Please read this manual carefully and use the TV correctly. • ...
  • Page 27 (Depending on model) Adjusts the volume level. Accesses your favourite programme list. Used for viewing 3D video. Mutes all sounds. Scrolls through the saved programmes. Moves to the previous or next screen. .,;@ Shows the previous history. (HOME) Accesses the Home menu. PAGE Shows the list of Recommended, Programmes, Search and Recorded.

  • Page 28: Magic Remote Functions

    pqrs wxyz Q.VIEW GUIDE MUTE Magic remote functions RECENT MY APPS (Depending on model) When the message “Magic remote battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) LIVE MENU EXIT BACK...
  • Page 29 Adjusts the volume level. Used for viewing 3D video. (Only 3D models) (Voice recognition) (Depending on model) Scrolls through the saved programmes. Network connection is required to use the voice recognition function. (MUTE) Mutes all sounds. 1 Press the voice recognition button. * By Pressing and holding the button, audio descriptions wxyz...

  • Page 30: Open Source Software Notice Information

    •  Use the remote control within the specified range (within 10 m). LG Electronics will also provide open source code to you on CD-ROM You may experience communication failures when using the device...

  • Page 31: Troubleshooting

    Troubleshooting Specifications Cannot control the TV with the remote control. Wireless module specification •  Check the remote control sensor on the product and try again. •  Because band channel used by the country could be different, the •  Check if there is any obstacle between the product and the remote user can not change or adjust the operating frequency and this control.
  • Page 32 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV Analogue TV...
  • Page 33 LG Recycling Policy (Only EU) LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products’...
  • Page 34 EU ecolabel (Only EU ecolabel applied model) Better for the environment... •  High Energy Efficiency •  Reduced CO2 emissions •  Designed to facilitate repair and recycling ... better for you. EU Ecolabel : PL/22/004 LGE announced the  ‘ LG Declaration for a Cleaner Environment  ‘ in 1994, and this ideal has served as a Guiding managerial principle ever since. The  Declaration is a foundation that has allowed us to undertake Environmentally friendly activities in careful consideration of economic, environmental,  and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of  environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental  characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for  recycling and a host of other features.  The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu Restriction of Hazardous Substances (Only Ukraine) Обмеження...

  • Page 35: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 36: Key Codes

    KEY CODES key CODeS • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 37 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 38 (TV) (PC) EXTERNAL CONTROL DEVICE SETUP (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 39 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 40 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 41 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 42 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 43 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 44 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 45 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 46 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
