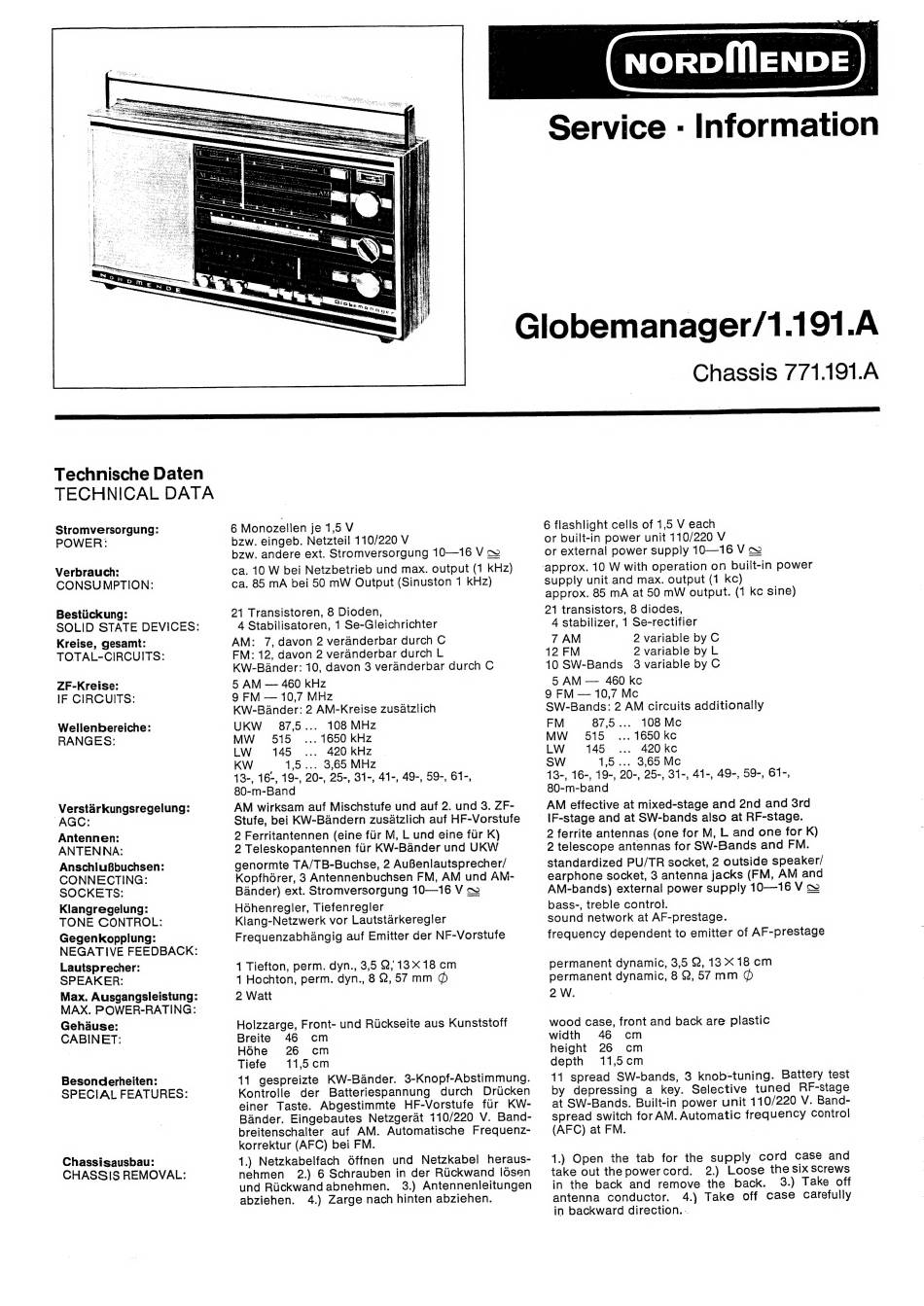

Nordmende Globemanager 1.191.A Service Information
Nordmende Globemanager 1.191.A Service Information

Nordmende Globemanager 1.191.A Service Information

Chassis 771.191.a

Advertisement

Quick Links

NORDMENDE
Technische Daten
TECHNICAL
DATA
Stromversorgung:
POWER:
Verbrauch:
CONSUMPTION:
Bestiickung:
SOLID STATE DEVICES:
Kreise, gesamt:
TOTAL-CIRCUITS:
ZF-Kreise:
IF CIRCUITS:
Wellenbereiche:
RANGES:
Verstarkungsregelung:
AGC:
Antennen:
ANTENNA:
AnschluBbuchsen:
CONNECTING:
SOCKETS:
Klangregelung:
TONE CONTROL:
Gegenkopplung:
NEGATIVE FEEDBACK:
Lautsprecher:
SPEAKER:
Max. Ausgangsleistung:
MAX. POWER-RATING:
Gehause:
CABINET:
Besonderheiten:
SPECIAL FEATURES:
Chassisausbau:
CHASSIS REMOVAL:
6 Monozellen je 1,5V
bzw. eingeb. Netzteil 110/220 V
bzw. andere ext. Stromversorgung 10—16 V ~&
21 Transistoren, 8 Dioden,
4 Stabilisatoren, 1 Se-Gleichrichter
AM:
7, davon 2 veranderbar durch C
FM: 12, davon 2 veranderbar durch L
KW-Bander: 10, davon 3 veranderbar durch C
5 AM — 460 kHz
9 FM — 10,7 MHz
KW-Bander: 2 AM-Kreise zusatzlich
UKW
87,5...
108 MHz
MW
515.
... 1650 KHz
LW
145...
420 kHz
KW
1,5... 3,65 MHz
13-, 16-, 19-, 20-, 25-, 31-, 41-, 49-, 59-, 61-,
80-m-Band
AM wirksam auf Mischstufe und auf 2. und 3. ZF-
Stufe, bei KW-Bandern zusaizlich auf HF-Vorstufe
2 Ferritantennen (eine fur M, L und eine fur K)
2 Teleskopantennen fur KW-Bander und UKW
genormte TA/TB-Buchse, 2 AuBenlautsprecher/
Kopfhorer,
3 Antennenbuchsen
FM, AM und AN-
Bander) ext. Stromversorgung 10—16 V ~
Hodhenregler, Tiefenregler
Klang-Netzwerk vor Lautstarkeregler
Frequenzabhangig auf Emitter der NF-Vorstufe
1 Tiefton, perm. dyn., 3,5 92,1318 cm
1 Hochton, perm. dyn., 8 2,57 mm @
2 Watt
Holzzarge, Front- und Rickseite aus Kunststoff
Breite
46
cm
Hohe
26
cm
Tiefe
11,5cm
1.) Netzkabelfach
6Offnen und Netzkabel
heraus-
nehmen
2.) 6 Schrauben
in der Ruckwand
ldosen
und Ruckwandabnehmen.
3.) Antennenleitungen
abziehen.
4.) Zarge nach hinten abziehen.
6 flashlight cells of 1,5 V each
or built-in power unit 110/220 V
or external power supply 10—16 V ~
'approx. 10 W with operation on built-in power
supply unit.and max. output (1 kc)
approx. 85 mA at 50 mW output. (1 kc sine)
21 transistors, 8 diodes,
4 stabilizer, 1 Se-rectifier
7 AM
2 variable by C
12 FM
2 variable by L
10 SW-Bands
3 variable by C
5 AM —
460 kc
9 FM — 10,7 Mc
SW-Bands: 2 AM circuits additionally
FM
87,5...
108 Mc
MW
515... 1650 ke
LW
145:
...
420kc
SW
1,5... 3,65 Mc
13-, 16-, 19-, 20-, 25-, 31-, 41-, 49-, 59-, 61-,
80-m-band
AM effective at mixed-stage and 2nd and 3rd
IF-stage and at SW-bands also at RF-stage.
2 ferrite antennas (one for M, L and one for K)
2 telescope antennas for SW-Bands and FM.
standardized PU/TR socket, 2 outside speaker/
earphone socket, 3 antenna jacks (FM, AM and
AM-bands) external power supply 10—16 V <2
bass-, treble control.
sound network at AF-prestage.
permanent dynamic, 3,5 2, 13 * 18 cm
permanent dynamic, 8 2, 57 mm ®
2W.
wood case, front and back are plastic
width
46
cm
height
26
cm
depth
11,5cm
