Section | - FAMILIARIZATION
This manual covers the Snapper Model 14221, 5241 &
6241 two stage snow throwers. In addition to the
recommended operating instructions, it includes
routine service and adjustment procedures. Com-
prehensive
overhaul/repair
and parts manuals
are
available from your Snapper Dealer at nominal Cost.
Refer to the Enigne Owner's Manual accompanying
your unit for specific details involving engine opera-
tion and service. Refer to the illustration below for
location of controls and other points of interest.
Make sure all operators become thoroughly faimiliar
SPARK PLUG WIRE*
(REMOVE BEFORE SERVICING
OR ADJUSTING UNIT)
EXPLANATION OF MODEL NUMBERS
FOUR DIGIT MODEL NUMBERS
1st Digit-Engine HP
2nd Digit-
3rd Digit- Blower Housing Width (Approx.)
4th Digit-*
FIVE DIGIT MODEL NUMBERS
1st Digit-Engine HP
2nd Digit
3rd Digit-Blower Housing Width (Approx.)
4th Digit-
5th Digit-*
* Reserved for any major model change.
FUEL TANK FILLER CAP*
(KEEP TIGHTENED)
DISCHARGE DEFLECTOR CAP
DISCHARGE CHUTE
SCRAPER BLADE
COLLECTION AUGERS
SKID SHOES
with controls and carefully read and understand all
safety instructions relating to the engine and Snow
Thrower.
SINGLE CONTROL FEATURE: If you continue
holding the TRACTION CLUTCH handle down while
blowing snow, you can release the BLOWER
CLUTCH handle without stopping the blower. This
feature frees your right hand to turn the chute crank
to discharge snow in a new direction. Releasing the
TRACTION CLUTCH handle stops motion and the
blower.
BLOWER
CLUTCH
HANDLE
DISCHARGE
CHUTE
CONTROL
TRACTION
CLUTCH
HANDLE
FORWARD-REVERSE
DIRECTIONAL CONTROL
THROTTLE CONTROL'
(ENGINE SPEED)
CONTROL PANEL
BELT GUARD
TIRES (INFLATE 12-15 PSI
WITHOUT CHAINS - 15 TO
20 PSI WITH CHAINS)
IMPELLER HOUSING
WHEEL RETAINING SCREWS
BLOWER HOUSING
* LOCATION VARIES for DIFFERENT ENGINE MODELS

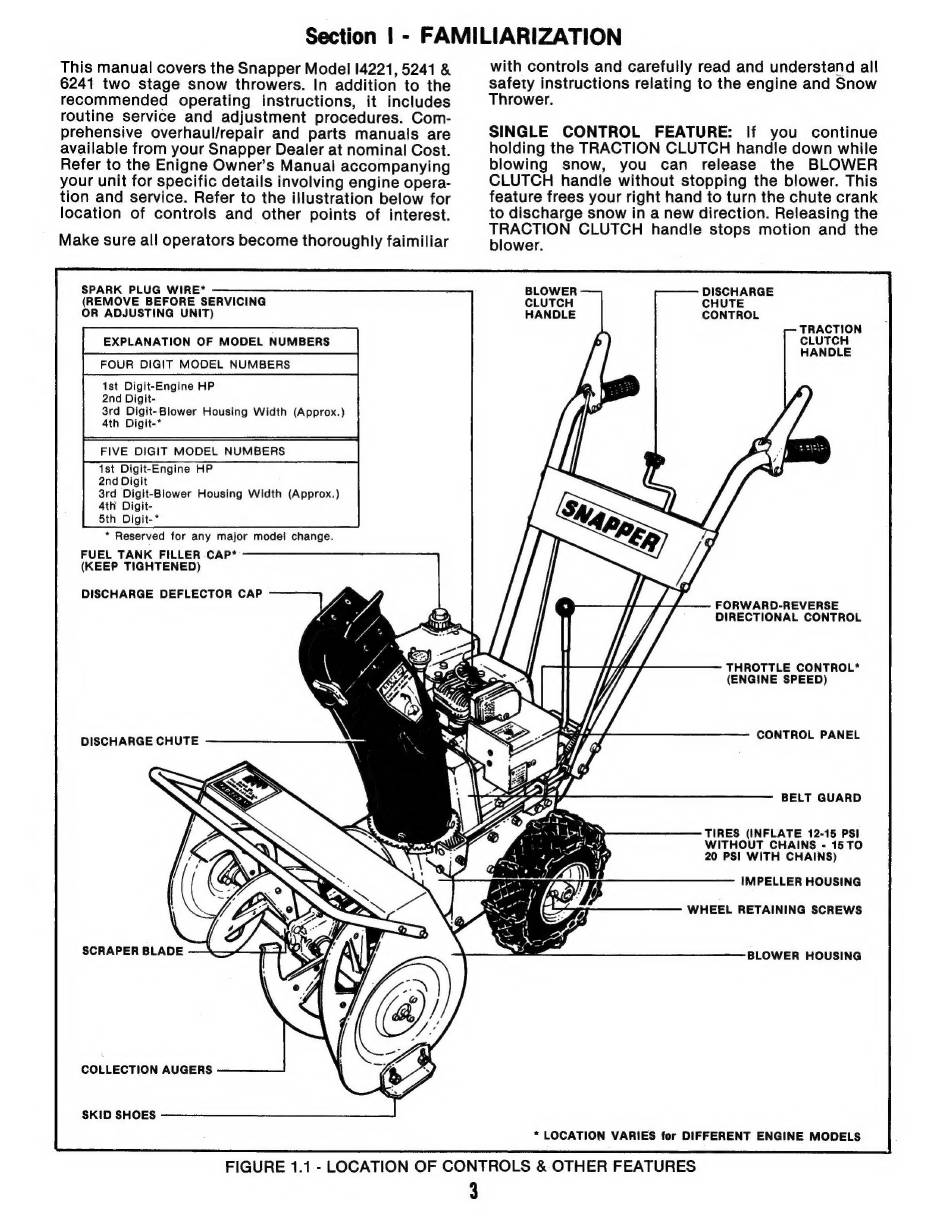

FIGURE 1.1 - LOCATION OF CONTROLS & OTHER FEATURES
3
