Snapper EI Parts Manual

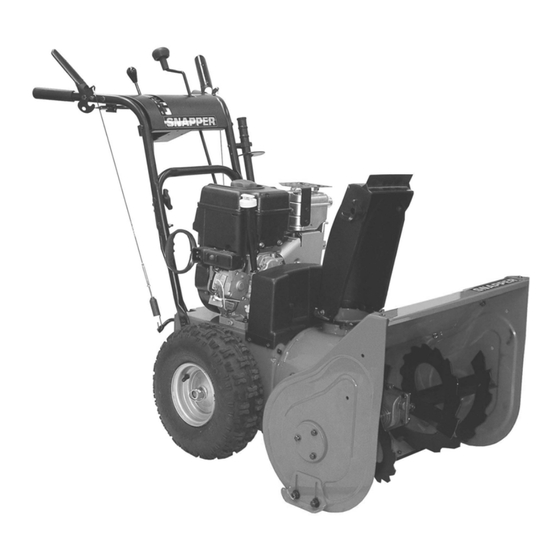

Two-stage intermediate frame snow thrower series 5 & 6
Hide thumbs
Table of Contents

Advertisement

Quick Links

TWO-STAGE INTERMEDIATE FRAME
COPYRIGHT © 2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
McDonough, GA, 30253 U.S.A.
Revision 2,
10/3/2006
Parts Manual for

SNOW THROWER

SERIES 5 & 6
Manual No.
MODEL
EI5225
EI75225
EI75246
EI75246E
EI8245
EI85245
I5225
I75225
I75246E
I8245E
I85245E
7006070
TP 400-5038-2-IS-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EI and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper EI

Summary of Contents for Snapper EI

  • Page 1: Snow Thrower

    TWO-STAGE INTERMEDIATE FRAME COPYRIGHT © 2006 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for SNOW THROWER McDonough, GA, 30253 U.S.A. Revision 2, 10/3/2006 SERIES 5 & 6 MODEL EI5225 EI75225 EI75246 EI75246E EI8245 EI85245 I5225 I75225 I75246E I8245E I85245E Manual No.

  • Page 3: Table Of Contents

    PAGE GROUP UPPER HANDLES, DASH, CONTROLS CHUTE CRANK CONTROL COLLECTOR HOUSING (3 Piece Bolted) DISCHARGE CHUTE AUGERS, IMPELLER, GEAR CASE, SHAFT TRACTION DRIVE GROUP ENGINE, PULLEYS, IDLER (5 HP Tecumseh) ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) WHEELS DECALS ELECTRIC START COMPONENTS TWO-STAGE INTERMEDIATE FRAME SERIES 5 &...

  • Page 4: Upper Handles, Dash, Controls

    UPPER HANDLES, DASH, CONTROLS Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 5 UPPER HANDLES, DASH, CONTROLS Item Part No Description 1919438 NUT, 5/16-18 Hex Nyloc 1726727 BRACKET, Snow Stick- Lower 1921332 SCREW, 5/16-18 x 3/4” Hex Head Cap 7027426 CLUTCH CABLE, Auger Drive- RH 1726574 HANDLE, Upper, Right Hand 1722638 GRIP, Clutch, RH 1726317 GRIP, Foam, Black 1722460...
  • Page 6 UPPER HANDLES, DASH, CONTROLS Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 7 UPPER HANDLES, DASH, CONTROLS Item Part No Description 1726573 HANDLE, Upper, Left Hand 1922837 SCREW, 1/4-20 x 1-1/2” Hex Head Cap 1715654 SPACER, .268 ID x .394 x .165 1960671 SCREW, 1/4-20 x 3/4” Pan Head Torx Self-Tap 1921221 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5 1722631 LEVER, Pivot 1920397...

  • Page 8: Chute Crank Control

    CHUTE CRANK CONTROL Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 9 CHUTE CRANK CONTROL Item Part No Description 1960093 PUSH NUT, Pal. .375 Dia. Stud Cap 1714084 KNOB, Spinner 1667588 BUSHING, .376 x .437 x .20 7028152 ROD, Chute, Upper 1960074 CLIP, .093 Dia. Hair Pin 1720577 SPLICE, Chute Handle 1926228 SPRING PIN, .156 x 1.000 1726939 ROD, Chute Lower...

  • Page 10: Collector Housing (3 Piece Bolted

    COLLECTOR HOUSING (3 Piece Bolted) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 11 COLLECTOR HOUSING (3 Piece Bolted) Item Part No Description 7072542 END PLATE, RH- Auger Housing- Red 7072547 WELDMENT, Auger Housing - 22” - Red 7072567 WELDMENT, Auger Housing - 24” - Red 1930659 RETAINER NUT, 5/16-18 7072544 END PLATE, LH- Auger Housing- Red 7300099 BLADE, Scraper- 22”...

  • Page 12: Discharge Chute

    DISCHARGE CHUTE Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 13 DISCHARGE CHUTE Item Part No Description 7028217 CHUTE, Discharge 7091021 SCREW, 5/16-24 x 3/4” Hex Head Cap, GR 5 7028846 DEFLECTOR, Chute 7035744 WING KNOB, 5/16-18 7028253 WIRE PIN 7039765 CHUTE RING 7011938 RETAINER, Spout 7091075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap 7091077 BOLT, 5/16-18 x 5/8”...

  • Page 14: Augers, Impeller, Gear Case, Shaft

    AUGERS, IMPELLER, GEAR CASE, SHAFT Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 15 AUGERS, IMPELLER, GEAR CASE, SHAFT Item Part No Description 1715091 PULLEY, Auger Input 7090848 SET SCREW, 5/16-18 x 1/2” Square Head Cup Point 7012699 KEY, 3/16 x 3/4” Woodruff 1960474 SET SCREW, 3/8-16 x 1/2” Square Head 1715120A WELDMENT, Impeller 1612093 OIL SEAL 1666425...

  • Page 16: Traction Drive Group

    TRACTION DRIVE GROUP Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 17 TRACTION DRIVE GROUP Item Part No Description 1930601 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap 1673994A BRACKET, Bushing 7091302 NUT, 3/8-16 Hex, GR 5 or B 7091320 WASHER, 3/8” Split Lock 1669256 ASSEMBLY, Shift Arm w/Bushing 1666114 BUSHING, Spacer, .380 ID x .750 OD x 1.030 Long 7090122 WASHER, 3/8”...
  • Page 18 TRACTION DRIVE GROUP Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 19 TRACTION DRIVE GROUP Item Part No Description 7091214 KEY, Hi-Pro, #HP-506 1719879 DRIVE DISC, w/ Spindle 1715131 ROD, Pivot 7091598 COTTER PIN, 1/8 x 3/4” 7091575 NUT, 5/16-18 Hex Nyloc Light 1919326 WASHER, .312 (.34 ID x .75 OD) 1700473 BELLCRANK 1666106 BUSHING...

  • Page 20: Engine, Pulleys, Idler (5 Hp Tecumseh

    ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 21 ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Item Part No Description 7090233 SCREW, 5/16-24 x 3/4” Hex Head Cap, GR 5 1924874 WASHER, 5/16” Flat 1715136 WIRE, Belt Stop 7090395 LOCKWASHER, 5/16” Exterior Tooth * ENGINE, 5HP Tecumseh 1726942 HOSE, Oil Drain 1931277 NUT, 5/16-18 Hex Flange Lock- small 931277...
  • Page 22 ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 23 ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Item Part No Description 925160 RIVET, Blind 7500303 ASSEMBLY, Idler Arm w/Brake Pad 7091158 BOLT, 3/8-16 x 1-3/4 Short Square Neck Carriage, GR 5 1922755 WASHER, 3/8” Flat (.41 ID x 1.00 OD x .13 Thick) 1668477 PULLEY, Idler 1725379...

  • Page 24: Engine, Pulleys, Idler (7-1/2, 8, 8-1/2 Hp Briggs

    ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 25 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Item Part No Description 1921982 SCREW, 5/16-24 x 1-1/4” Hex Head Cap, GR 5 1924874 WASHER, 5/16” Flat 1725424 BELT STOP, Wire 7100117 BELT GUIDE, LH, Traction Drive Belt 7100118 BELT GUIDE, RH, Traction Drive Belt 7090395 LOCKWASHER, 5/16”...
  • Page 26 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 27 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Item Part No Description 7072554 COVER, Bottom- Red 7090362 SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap 1925125 WASHER, 7/16” Flat 7091598 COTTER PIN, 1/8 x 3/4” 1725369 WELDMENT, Idler Arm 1960268 BOLT, 3/8-16 x 1-1/4” Short Square Neck Carriage 174870 SPACER, .377 ID x .75 OD x .312 Long 118414...
  • Page 28 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 29 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs) Item Part No Description 7090391 WASHER, 5/16” Internal Tooth Lock Footnotes: NOTE: * See your local Briggs distributor for engine service parts. TWO-STAGE INTERMEDIATE FRAME SERIES 5 & 6 Note Manual No. 7006070 TP 400-5038-2-IS-N...

  • Page 30: Wheels

    WHEELS Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 31 WHEELS Item Part No Description 1666969 KLIK- PIN, .310 ID x 1-3/4” Long 172353 VALVE STEM AND CAP 1664090 TUBE, Tire 1723286 RIM, 6 x 3.25 (Weldment) 7027866 TIRE, 15 x 5.00-6, 2 Ply, Carlisle Snow Hog 7041271 ASSY, Tire and Wheel, 15 x 5.00-6 Carlisle Sno Hog Footnotes: TWO-STAGE INTERMEDIATE FRAME SERIES 5 &...

  • Page 32: Decals

    DECALS Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...
  • Page 33 1727021 DECAL, Dashboard- LH- Euro 7100821 DECAL, Dashboard, Top, LH 7100822 DECAL, Dashboard, Top, LH (Euro) 1726721 DECAL, Dash Front - SNAPPER *DECAL, OPEI 1716532 DECAL - Danger, Auger 1727208 DECAL, CE- Auger Warning 1727027 DECAL, Stripe- SNAPPER (5hp, 22”) 1727028 DECAL, Stripe- SNAPPER (8hp, 24”)

  • Page 34: Electric Start Components

    ELECTRIC START COMPONENTS Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME TP 400-5038-2-IS-N SERIES 5 & 6...

  • Page 35: Electric Start Components

    ELECTRIC START COMPONENTS Item Part No Description 7600016 KIT, Electric Start, 230 volt (incl. items 1 thru 6 below) 7011263 STRAP, Ground (not shown) 7011264 CLAMP, Regulator (not shown) 7011265 BRACKET, Regulator (not shown) 7011267 SCREW, Hex Head 7011268 BOLT, 5/16-18 x 3/4” Hex Head Cap 7011266 CLIP, Speed Footnotes:...
  • Page 38 TWO-STAGE INTERMEDIATE FRAME SNOW THROWER SERIES 5 & 6 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
