Summary of Contents for ONE ElektraLite Fresnel RGBW 350w

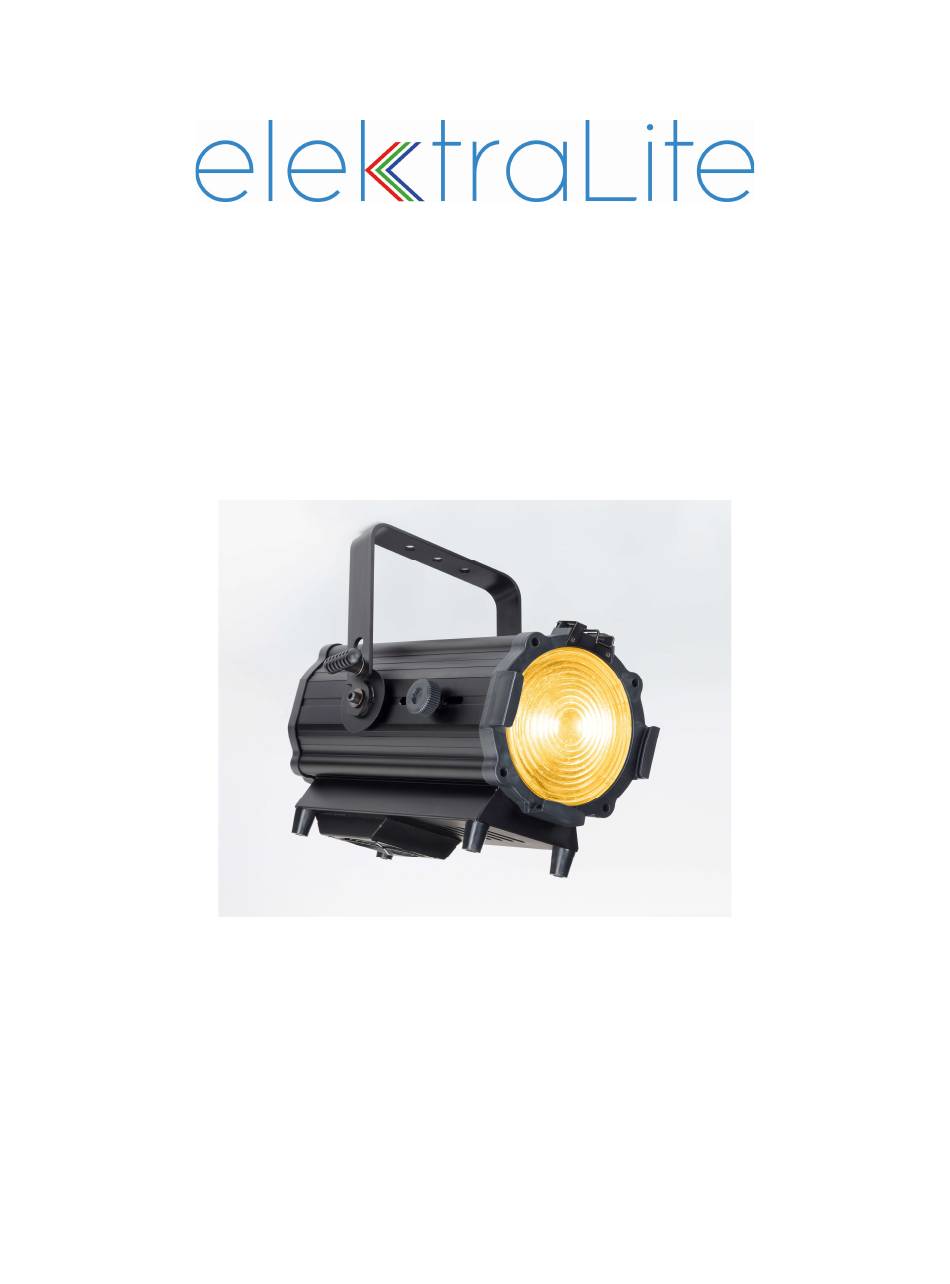

- Page 1 Stingray Fresnel RGBW 350w USER MANUAL (Version 1.4) ElektraLite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...
-
Page 2: General Guidelines
RGBW 350w be grounded. So under no circumstances break off the ground pin on the Edison plug or use the fixture where a ground is not present. A ground pin, like the fuse for the elektraLite Fresnel RGBW 350w is there for safety. -
Page 3: Installation During Construction
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point. A secondary safety point is any point that will adequately hold the elektraLite Fresnel RGBW 350w if the "C" clamp or half cheesboro fails. - Page 4 7. Menus. Dsiplay Screen at Root Menu. Reverse Display Running Status Menu Buttons Mode Display Description DMX Mode Axxx “A” is standard channel mode, 9 channels Master-slave Dxxx “D” is basic channel mode, 5 channels Manual M-MC “M” is Master mode，“MC” is “Mixed Color” Auto run M-Ax “M”...
- Page 5 Status Menu Description Software Name of software Version Version number of the software Temperature Shows the temperature of lighting fixture DMX Status Will display the status Settings Menu Operation Option Description Touch Screen Calibration Touch screen adjust PWM Frequency adjustment Choose dimmer From 500Hz frequency...
- Page 6 8.DMX Profiles Standard or Basic Standard channel mode (9CH) Channel Data Function Remark 000-255 Dimmer 000-255 Color 1 Red 000-255 Color 2 Green 000-255 Color 3 Blue 000-255 Color 4 White (3200K color temp) 000-010 No function 011-255 Strobe speed（255 is the fastest） 000-009 Null 010-019...
-
Page 7: Cleaning And Maintenance
The shutter blades sometimes require cleaning as well. With the elektraLite Fresnel RGBW 350w turned off, use only a moist lint-free cloth. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture. -
Page 8: Other Products
Other Products. For other great products that are manufactured under the elektraLite product line, please go to the website at www.myelektraLite.com A preview of the products include:- elektraLite Paint Can Pendant House Light. The ideal pendant light. Made specifically for the installation market. Can be simply installed by an electrical contractor. - Page 9 elektraLite Stingray RGBW (where W= 3200K) The Stingray RGBW (where W is at 3200K) is available in a 200 watt version & 350 watt version. There is also a 350 watt RGBAL version as well as 300 watt Warm White and Cool White. The line is completed with a huge 600 watt Variable White Stingray.
