STEP 1:
•

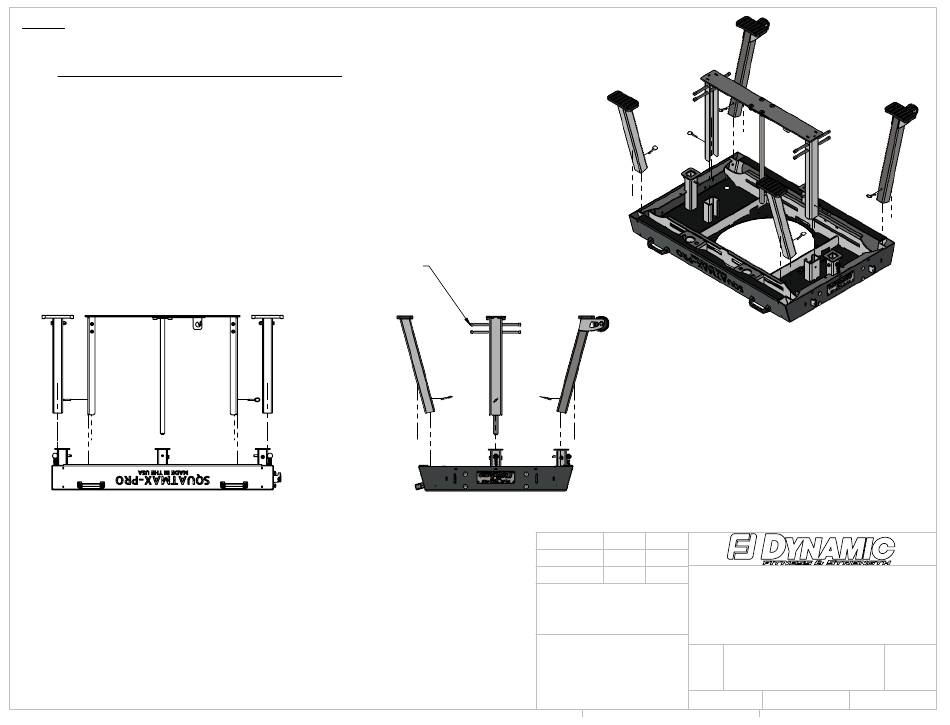

POSITION BASE WITH TOP FACE DOWN AND ONE END PROPPED UP ENOUGH
FOR THE LOAD PIN TO PROTRUDE THROUGH AFTER ASSEMBLY (APPROX 6 INCHES).
•
USE CARE WHEN REMOVING BASE FROM CRATE NOT TO DRAG TOP SURFACE ACROSS
METAL BRACKETS CAUSING DAMAGE TO FINISH.
•
INSERT LEGS AND FOOT PLATE. WHEELED LEGS ARE LOACTED OPOSIDE THE BASE HANDLES.
INSERT 6X 1" QUICK RELEASE PINS AS SHOWN TO SECURE LEGS AND FOOTPLATE.
•
REMOVE RUBBER SHIPPING CAPS FROM BAND PEGS ON FOOT PLATE AND LOAD PIN.
5
REMOVE AND DISCARD CAPS
NAME
DATE
KW
2/27/2025
DRAWN
TITLE:
CHECKED
COMMENTS:
SIZE
A
SCALE: 1:18 WEIGHT:
2
SQUATMAX PRO
ASSEMBLY STEP 1
DWG. NO.
REV
713038
165.9411
SHEET 1 OF 3
1
-
