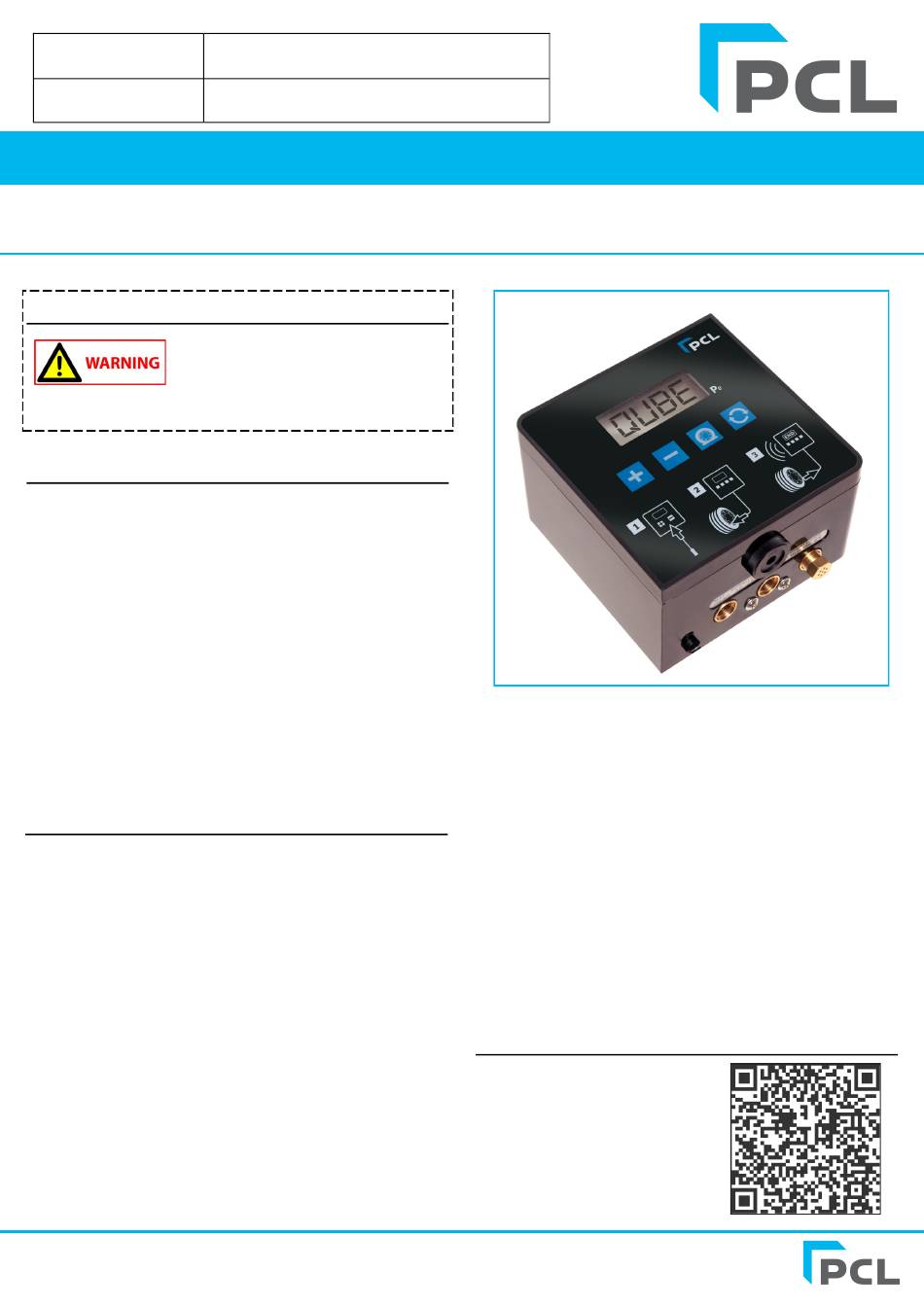

pcl QUBE Quick Start Manual

PART NUMBER
SERIAL NUMBER
Bluetooth QUBE
Please read these instructions carefully before attempting to assemble, install, operate or maintain the product. Protect yourself and
others by observing all safety information. Failure to do so could result in personal injury and/or damage to property. Retain these
instructions for future reference.
Safety Guidelines
Please read and follow the accompanying
Safety Instructions before continuing.
Please ensure all operators are familiar
with the Safety Instructions.
General Specifications
Min recommended air supply:
Max air supply:
12 Volt units
Max operating pressure:
Min operating pressure:
Display resolution:
Max outlet hose length:
Max permissible error (MPE):
Voltage:
Power:
IP rating:
Operating temperature range:
Bluetooth operating range:
Bluetooth Version:
Bluetooth Max Transmit Power:
Android compatibility
Installation
Please ensure all safety information is visible to the
operator.
Wall mounted products should be secured to the wall using 4
screws onto the wall brackets. The mass of the product is 1.8 kg
(excluding hoses).
Electrical supply (for models not fitted with a standard electrical
plug)
For safe operation the equipment should be connected to an
approved disconnect device such as a mains isolator or switched
spur that is correctly rated according to local national standards
and regulations. The unit must be earthed and protected with a
HBC type F fuse or circuit breaker rated at 3 A and approved and
rated according to local national standards and regulations. The
disconnect device must be marked as the disconnecting device for
the equipment, it must be located close to the equipment and be
accessible at all times.
76569 Issue 1
Inflator
0.7 bar above the max target
pressure
16 bar
12 bar
10 bar or 5.5 bar
(see product rating label)
0.3 bar
0.1 bar
20m
0.08 bar
230V 50/60Hz - 12V dc
18VA max.
IP31 For indoor use only
-10 °C to +55 °C
14 meters (with aerial attached)
Bluetooth V4.2
2.50 dBm
9—14
www.pclairtechnology.com
Quick Start Manual
Air supply
Ensure the air supply is filtered and dry. This will minimise the
accumulation of dirt and water in the inflator line filters.
For efficient tyre inflation, ensure that the air supply is at least 10
psi / 0.7 bar above the intended maximum target pressure.
It is recommended that when tightening any hose connections to
the unit, two spanners are used. Hold the filter housing with one
spanner, to ensure it does not spin, then tighten the hose
connection with the other spanner.
Contact details
Pneumatic Components Ltd
Holbrook Rise
Holbrook Industrial Estate
Sheffield, UK
S20 3GE
+44 (0)114 248 2712
sales@pclairtechnology.com
