Ameriwood HOME Cosmo Living Valencia 7958013COM Instruction Booklet

Ameriwood HOME Cosmo Living Valencia 7958013COM Instruction Booklet

Dresser with desk
Hide thumbs

Advertisement

Table of Contents

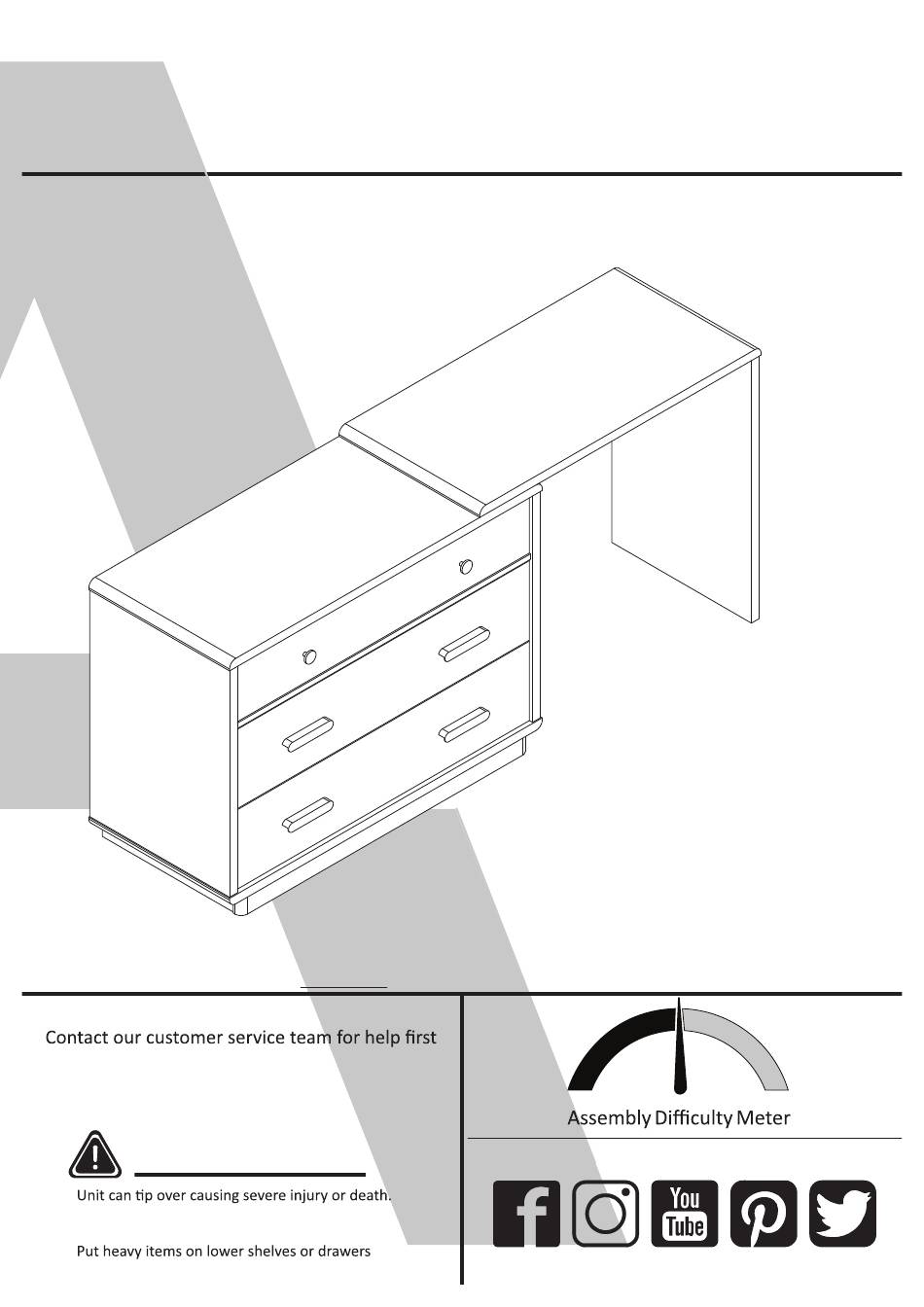

7958013COM (Taupe & White)
Cosmo Living Valencia Dresser with Desk
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Call: 1-800-489-3351 (toll free)
Visit: www.ameriwoodhome.com
WARNING
–
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–
Contact Us!
Helpful Hints
B347958XXXCOM00SW
Easy
Follow Ameriwood Home
042024SW
Tough

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cosmo Living Valencia 7958013COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME Cosmo Living Valencia 7958013COM

Summary of Contents for Ameriwood HOME Cosmo Living Valencia 7958013COM

  • Page 1 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Do Not Return This Product! Call: 1-800-489-3351 (toll free) Visit: www.ameriwoodhome.com Easy Tough WARNING Follow Ameriwood Home – –Anchor unit to stud in wall (if instructed to) –Do not allow children climb on unit –...

  • Page 2: Helpful Hints

    Contact Us! Contact Us! Do NOT return this product! Call us! Visit ameriwoodhome.com 1-800-489-3351 Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 - Compression Wood Dowels are tapped in with a hammer. - Make sure to always face the point on the top of the Cam Lock towards the outer edge.

  • Page 3: Before You Start

    Before You Start  Read through each step carefully and follow the proper order.  Separate and count all your parts and hardware.  Give yourself enough room for the assembly process.  Have the following tools: Phillips Head Screwdriver and Hammer. ...
  • Page 4 Before You Start Please Note: You may need to lightly tap the Wood Dowels with a hammer into the holes during your assembly process. Insert Wood Dowel completely into the hole. Not Actual Size Wood Dowel Actual Size Wood Dowel will extend out approximately 3/8”.

  • Page 5: Board Identification

    Board Identification Not actual size TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL MIDDLE SHELF BOTTOM PANEL FRONT STRETCHER SIDE STRETCHER LEFT SIDE STRETCHER RIGHT BACK STRETCHER...
  • Page 6 Board Identification Not actual size DESK TOP MODESTY PANEL DESK SIDE PANEL BACK PANEL UPPER DRAWER FACE UPPER SIDE DRAWER (LEFT) UPPER SIDE DRAWER (RIGHT) UPPER BACK DRAWER LOWER DRAWER FACE...
  • Page 7 Board Identification Not actual size LOWER SIDE DRAWER (LEFT) LOWER SIDE DRAWER (RIGHT) LOWER BACK DRAWER DRAWER BOTTOM DRAWER SUPPORT For any replacement part, see page 9.
  • Page 8 Board Identification Not actual size...

  • Page 9: Part Number Reference

    Part Number Reference Each part has a unique part number. Please refer to the appropriate part number when Before throwing any packaging, please verify all contents and make sure you have received all the part listed above. 7958013COM LABEL PART NAME (Taupe &...

  • Page 10: Part List

    Part List Actual Size For any replacement hardware, see page 12. TSW0002 TSW0004 TSW0007 TSW0001 CAM LOCK DOWEL SCREW CAM BOLT 15-10 M8 x 30 CBS 3.5 x 14 TSW0009 TSW3006 TSW0008 TSW0015 JCBC SCREW HANDLE SCREW SCREW NAIL M6 x 35 CBS 4 x 38...
  • Page 11 Part List Not Actual Size TSW0010 TSW3003 TSW3004 FLAT WASHER HANDLE ROUND KNOB x3 SETS TSW0011 x1 SET TSW1003 HEX KEY TSW2004 DRAWER SLIDE ANTI TIPPING KIT 300 MM...
  • Page 12 Hardware Number Reference Each part has a unique part number. Please refer to the appropriate part number when contacting customer service for replacement parts. Before throwing any packaging, please verify all contents and make sure you have received all the part listed above. 7958013COM MODEL# (Taupe &...
  • Page 13 Step 1 Insert Cam Bolts (A) x 4, to Top Panel (1). Attach Anti Tipping Kit (M) to Top Panel (1) and use (Mc) to tighten. “Note : this (Mc) will be fully tighten in step 34”. Turn over Top Panel (1), then insert Wood Dowel (C) x 2. “Turn Over”...
  • Page 14 Step 2 Insert Cam Bolts (A) x 2, Cam Locks (B) x 4 and Wood Dowels (C) x 4 to Left Side Panel (2). Insert Cam Bolts (A) x 2, Cam Locks (B) x 4 and Wood Dowels (C) x 4 to Right Side Panel (3). FINISHED EDGE...
  • Page 15 Step 3 Attach Drawer Slides (L) CL x 3 to Left Side Panel (2), secure with Screws (D) x 9 as illustrated. FINISHED EDGE Use these holes : Slide CL , screw position on Left Side Panel (2)
  • Page 16 Step 4 Attach Drawer Slides (L) CR x 3 to Right Side Panel (3), secure with Screws (D) x 9 as illustrated. Turn over the Panel, then insert Cam Bolts (A) x 2. “Turn Over” FINISHED EDGE Use these holes : Slide CR , Screw position on Right Side Panel (3)
  • Page 17 Step 5 Insert Cam Locks (B) x 4 and Wood Dowels (C) x 4 to the Middle Shelf Panel (4).
  • Page 18 Step 6 Insert Cam Bolts (A) x 3 to Desk Top (10).
  • Page 19 Step 7 Insert Cam Bolts (A) x 2 and Wood Dowels (C) x 2 to the Front Stretcher (6). Insert Cam Bolt (A) x 1 and Cam Lock (B) x 1 to Side Stretcher Left (7) and Side Stretcher Right (8). Insert Cam Locks (B) x 2 to Back Stretcher (9).
  • Page 20 Step 8 Attach Side Stretcher Left (7) and Side Stretcher Right (8) to Back Stretcher (9), tighten the Cam Locks clockwise. Important! Ensure the small holes facing up!
  • Page 21 Step 9 Attach Front Stretcher (6) to Side Stretcher Left (7) and Side Stretcher Right (8), tighten the Cam Locks clockwise. Dowel facing up...
  • Page 22 Step 10 Attach Stretcher (6), (7), (8) and (9) to the Bottom Panel (5), secure with Screw (E) x 10. Turn over the Panel (5), insert Cam Bolts (A) x 4. “Turn Over” UNFINISHED EDGE Curve facing up...
  • Page 23 Step 11 Insert Cam Locks (B) x 5 and Wood Dowel (C) x 4 to Modesty Panel (11). Insert Cam Bolts (A) x 2, Cam Locks (B) x 2 and Wood Dowel (C) x 2 to Desk Side Panel (12).
  • Page 24 Step 12 Attach Middle Shelf (4) to Left Side Panel (2), tighten the Cam Locks clockwise. FINISHED EDGE FINISHED EDGE Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 25 Step 13 Attach Middle Shelf (4) to the Right Side Panel (3), tighten the Cam Locks clockwise. FINISHED EDGE FINISHED EDGE Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 26 Step 14 Attach Bottom Panel (5) to the Left Side Panel (2) and Right Side Panel (3), tighten the Cam Locks clockwise. FINISHED EDGE FINISHED EDGE FINISHED EDGE Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 27 Step 15 Attach Top Panel (1) to the Left Side Panel (2) and Right Side Panel (3), tighten the Cam Locks clockwise. FINISHED EDGE FINISHED EDGE FINISHED EDGE Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 28 Step 16 IMPORTANT ! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. With the assistance of second person, carefully lay the Unit face down. Attach the Back Panel (13) with nails (F) x 20. Ensure the Unit is square. Distance from corner to corner must be equal.
  • Page 29 Step 17 Attach Modesty Panel (11) to Desk Side Panel (12), tighten the Cam Locks clockwise. UNFINISHED EDGE Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 30 Step 18 Attach the Modesty Panel (11) to the Right Side Panel (3), tighten the Cam Locks clockwise. Pro Tip : Second person is recomended for ease of assembly on this step...
  • Page 31 Step 19 Attach Desk Top (10) to Top Panel (1), Modesty Panel (11) and Desk Side Panel (12),tighten the Cam Locks clockwise. Insert JCBC Screws (H) x 2 with Spring Washer (I) x 2 to secure Top Panel (1) and Desk Top (10), fully tighten by using Hex Key (N).
  • Page 32 Step 20 Insert Cam Bolts (A) x 15 to Upper Drawer Face (14) and Lower Drawer Face (18) x 2.
  • Page 33 Step 21 Insert Cam Locks (B) x 15 to Upper Side Drawer Left (15), Upper Side Drawer Right (16), Lower Side Drawer Left (19) x 2, Lower Side Drawer Right (20) x 2 and Drawer Support (23) x 3.
  • Page 34 Step 22 Attach Upper Side Drawer Left (15) and Upper Side Drawer Right (16) to the Upper Drawer Face (14), tighten the Cam Locks clockwise.
  • Page 35 Step 23 Attach Drawer Support (23) to the Upper Drawer Face (14), tighten the Cam Lock clockwise.
  • Page 36 Step 24 Insert Drawer Bottom (22) through the grooves of Panel (15) and (16) then slot into groove of Panel (14) as illustrated. UNFINISHED EDGE...
  • Page 37 Step 25 Line up the groove of Upper Back Drawer (17) with Drawer Bottom (22), secure with Screws (E) x 5 as illustrated.
  • Page 38 Step 26 x1 SETS Attach Drawer Slide (L) (DL) to Upper Side Drawer Left (15), secure with Screws (D) x 3 as illustrated. Attach Drawer Slide (L) (DR) to Upper Side Drawer Right (16), secure with Screws (D) x 3 as illustrated. Use these holes : Use these holes : (DR)
  • Page 39 Step 27 Attach Round Knob (K) x 2 onto Upper Drawer Face (14), secure with Screws (G) x 2 as illustrated.
  • Page 40 Step 28 Attach Lower Side Drawer Left (19) and Lower Side Drawer Right (20) to the Lower Drawer Face (18), tighten the Cam Locks clockwise.
  • Page 41 Step 29 Attach Drawer Support (23) to the Lower Drawer Face (18), tighten the Cam Lock clockwise.
  • Page 42 Step 30 Insert Drawer Bottom (22) through the grooves of Panel (19) and (20) then slot into groove of Panel (18) as illustrated. UNFINISHED EDGE...
  • Page 43 Step 31 Line up the groove of Lower Back Drawer (21) with Drawer Bottom (22), secure with Screws (E) x 5 as illustrated.
  • Page 44 Step 32 x2 SETS Attach Drawer Slide (L) (DL) to Lower Side Drawer Left (19), secure with Screws (D) x 3 as illustrated. Attach Drawer Slide (L) (DR) to Lower Side Drawer Right (20),secure with Screws (D) x 3 as illustrated. Use these holes : Use these holes : (DR)
  • Page 45 Step 33 Attach Handle (J) x 2 onto Lower Drawer Face (18), secure with Screws (G) x 4 as illustrated.
  • Page 46 Step 34 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
  • Page 47 Step 35 Carefully insert Drawers into the unit as illustrated.
  • Page 48 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 100 lbs 45 kg 25 lbs. 11 kg 27 lbs. 12kg each Drawer Warning: Risk of serious injury to person - do not place a television on this furniture. This furniture is not approved for use with a television.
  • Page 49 We would like to extend a big “Thank You” to all to assemble this our customers for taking the of our customers for taking the time to assemble Seeds product, and to give us your valuable this Ameriwood Home product, and to give us your feedback. valuable feedback...
  • Page 50 Español Cubierta Delantera futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489- Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte. Anclar el mueble a un poste de madera en la pared (si esto se requiere). No Permita que los niños monten el mueble.
  • Page 51 Español Lista de (página 10&11) Para cualquier hardware de reemplazo,ver página 12. Referencia del número de hardware (página 12) Cada pieza tiene un número de pieza único. Consulte el número de pieza correspondiente cuando se comunique con el servicio de atención al cliente para obtener piezas de repuesto. Antes de tirar cualquier embalaje, verifique todo el contenido y asegúrese de haber recibido todo la parte listada arriba.
  • Page 52 Español Página 26 (Paso 14) Conecte el panel inferior (5) al panel lateral izquierdo (2) y al panel lateral derecho (3). Apriete las cerraduras de leva en el sentido de las agujas del reloj. Página 27 (Paso 15) Conecte el panel superior (1) al panel lateral izquierdo (2) y al panel lateral derecho (3). Apriete las cerraduras de leva en el sentido de las agujas del reloj.
  • Page 53 Español Página 41 (Paso 29) Conecte el soporte del cajón (23) a la cara inferior del cajón (18), apriete las cerraduras de leva en el sentido de las agujas del reloj. Página 42 (Paso 30) Conecte la parte inferior del cajón (22) a través de la ranura de los paneles (19) y (20) y luego colóquela en la ranura del panel (18).como se ilustra.
  • Page 54 Español Página 46,47,48,49 ADVERTENCIA Lesiones por aplastamiento graves o fatales puede ocurrir desde la punta del mueble. Para evitar volcar: * Instale la restricción de vuelco provista en los cajones más bajos acomodar, no instale televisores u otros objetos pesados en la parte superior de este producto * Nunca permita que los niños trepen o cuelguen de los cajones, puertas o estanterías * Nunca abra más de un cajón a la vez El uso de restricciones sobre volteos solo puede reducir, pero no eliminar, el riesgo...
  • Page 55 Français capot avant ultérieure. Ne pas retourner ce produit! Contactez notre équipe de service à la clientèle amical pour aider. Appel: 1-800-489-3351 (gratuit) Visite: www.ameriwoodhome.com MISE EN GARDE Ce mobilier peut basculer et causer des blessures graves et / ou la mort. Ancrer les meubles à...
  • Page 56 Français Liste des (pages 10 et 11) Pour tout matériel de remplacement, voir page 12. Référence du numéro de matériel (page 12) Chaque pièce possède un numéro de pièce unique. Veuillez vous référer au numéro de pièce correspondant lorsque vous contactez le service client pour les pièces de rechange.
  • Page 57 Français Page 25 (étape 13) Fixez l'étagère du milieu (4) au panneau latéral droit (3). Serrez les verrous à came dans le sens des aiguilles d'une montre horloge. Page 26 (Étape 14) Fixez le panneau inférieur (5) au panneau latéral gauche (2) et au panneau latéral droit (3). Serrez les verrous à...
  • Page 58 Français Page 36 (étape 24) Fixez le fond du tiroir (22) à travers la rainure des panneaux (15) et (16), puis insérez-le dans la rainure du panneau (14). comme illustré. Page 37 (étape 25) Alignez la fente du tiroir arrière supérieur (17) avec le bas du tiroir (22), fixez avec les vis (E) x 5 comme illustré.
  • Page 59 Français Pages 46,47,48,49 Avert ssement Des lésions graves ou fatales par écrasement peuvent survenir à part r de la pointe du meuble. Pour éviter de se retourner : * Placez les objets les plus lourds dans les boîtes inférieures L’ut lisat on de restrict ons sur les virages ne peut que réduire, mais pas éliminer, le risque de virage OPTION 1: mur.
