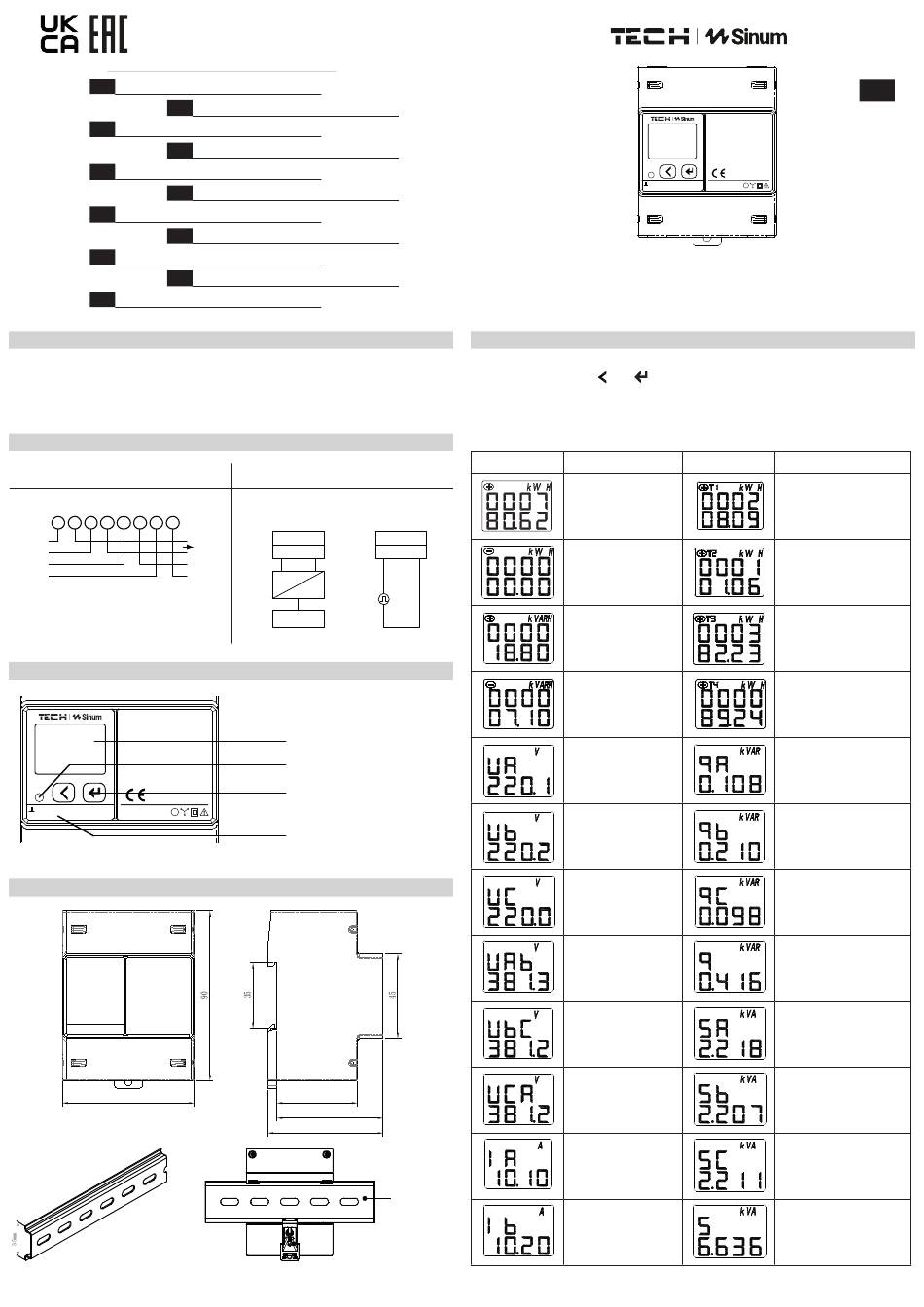

Product description
The LE-3x230mb energy meter is mounted on a DIN rail (TH-35). Thanks to the use of advanced
integrated circuits for energy measurement and the use of digital sample processing and SMT
technology, the device accurately shows the user's actual energy consumption.
The LE-3x230mb is a certified energy meter.
Installation and wiring
Wiring mode
1 2 3 4 5 6 7 8
N
L1
L2
L3
three phase four wire
bezpośrednie połaczenie trójfazowe,
direct connection
czteroprzewodowe
Device description
400imp/kWh EN50470-1/3 3K6
B
3×230/400V 0.25-5(63) A 50Hz 0120/SGS0392
Dimensions and assembly
72
TECH STEROWNIKI II Sp. z o.o.
ul. Biała Droga 31
34-122 Wieprz
Service
tel: +48 33 875 93 80 www.tech-controllers.com
support.sinum@techsterowniki.pl
tel: +421 918 943 556 www.tech-reg.sk
sk.servis@tech-reg.com
tel. +31 341 371 030 www.tech-controllers.com
e-mail: info@eplucon.nl
tel. +36-300 919 818, +36 30 321 70 88
www. tech-controllers.hu szerviz@tech-controllers.com
tel. +38 096 875 93 80 www.tech-controllers.com
servis.ua@tech-controllers.com
Signal terminal wiring diagram
licznik impulsów
communication komunikacja energy pulse
A B
58 59
RS485
RS232
PC
LCD display interface
Energy pulse indication light
Buttons
Parameters
45.2
58
63
DIN-rail mounted energy meters show the measured data of voltage, current, power, power factor,
frequency and energy. Press
interfaces.
Energy and electrical variables display interfaces
Display
energii
AP
47 48
+
-
szyna DIN
DIN rail
400imp/kWh EN50470-1/3 3K6
3×230/400V 0.25-5(63) A 50Hz 0120/SGS0392
LE-3x230mb
www.sinum.eu
Display
and buttons at the same time to switch between different display
Description Display
Import active energy:
EP = 780.62 kWh
Export active energy
EP- = -0.00 kWh
Import reactive energy
EQ = 18.80 kvarh
Export reactive energy
EQ- = -7.10 kvarh
Phase voltage Ua:
Ua = 220.1 V
Phase voltage Ub:
Ub = 220.2 V
Phase voltage Uc:
Uc = 220.0 V
Line voltage Uab:
Uab = 381.3V
Line voltage Ubc:
Ubc = 381.2 V
Line voltage Uca:
Uca = 381.2 V
Phase A current:
Ia = 10.10A
Phase B current:
Ib = 10.20A
EN
B
Description
Total multi-rate energy
under T1
208.09 kWh
Total multi-rate energy
under T2
101.06 kWh
Total multi-rate energy
under T3
382.23 kWh
Total multi-rate energy
under T4
89.24 kWh
Phase A reactive
power:
Qa = 0.108 kvar
Phase B reactive power:
Qb = 0.210 kvar
Phase C reactive power:
Qc = 0.098 kvar
Total reactive power:
Q = 0.416 kvar
Phase A apparent power:
Sa = 2.218 kVA
Phase B apparent power:
Sb = 2.207 kVA
Phase C apparent power:
Sc = 2.211 kVA
Total apparent power:
S = 6.636 kVA
