Installation Clearance Requirements

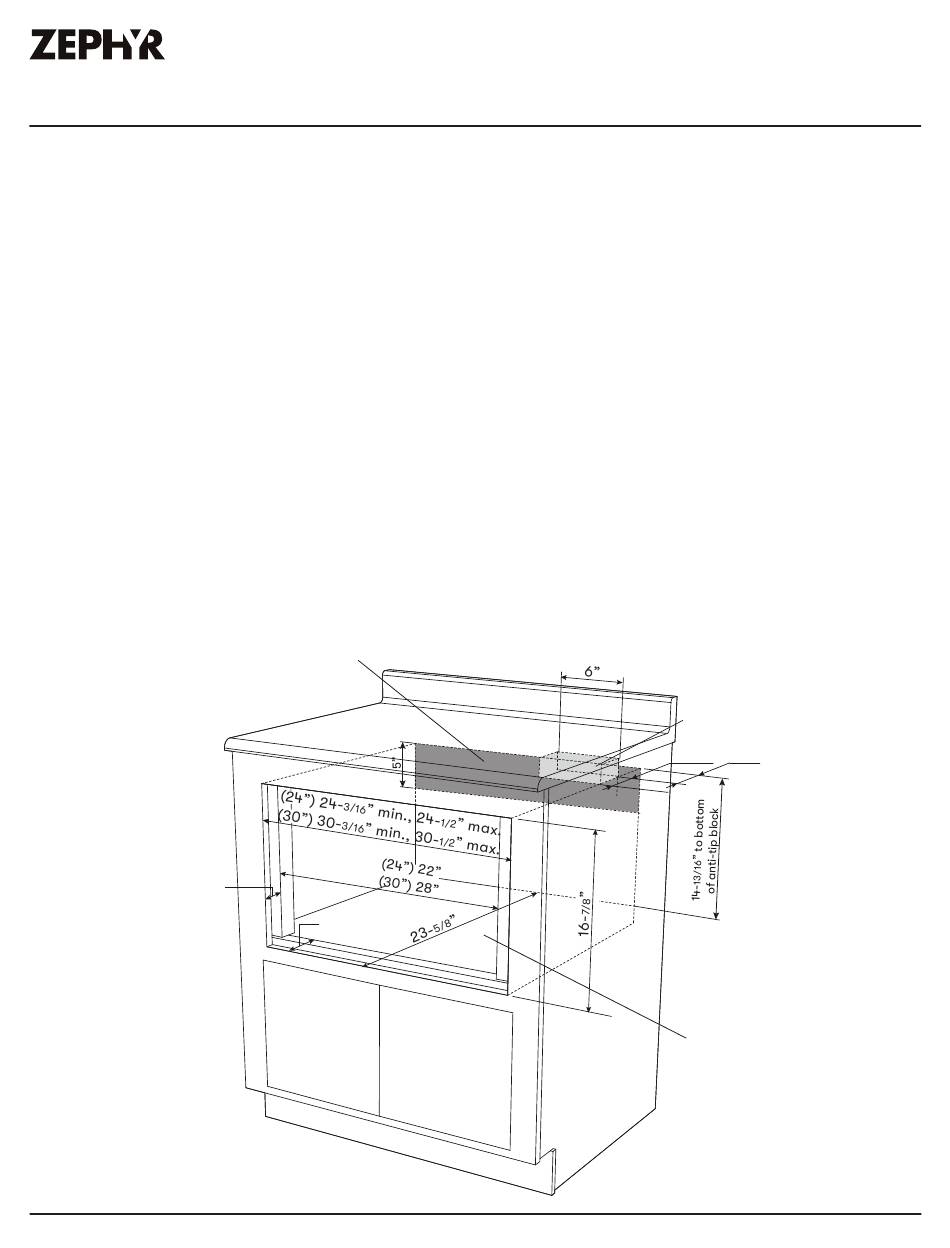

When installing the microwave drawer into a counter, follow the recommended spacing dimensions
shown. The given dimensions provide minimum clearance.
►
The microwave drawer can be built into a cabinet, standalone wall, or under a gas or an electric
wall oven where both standard installation and flush mount installation are available. Standard
installation is a standing proud installation.
►
Make sure the clearance of the floor between the wall oven and microwave drawer is a minimum of
2".
►
The power supply cord is located on the back of the unit and has a length of 51-1/8" to
accommodate multiple outlet locations, including installation to an adjacent cabinet. The power
supply cord access hole should be a minimum 1-1/2" diameter hole and debarred of sharp edges.
►
The contact surface must be solid and level. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven (about 100lbs).
►
This microwave drawer can be fully built-in to cabinetry and does not require any additional
clearances besides what is referenced below.
1-
1/2
MWD2401AS & MWD3001AS Use, Care, and Installation Guide
Suggested electrical
outlet location
"
2"

Installation Instructions

100lb minimum
Anti-tip
block
3- " 4"
1/2
Must support
15
