HOOKER FURNISHINGS Flynn RC611-PHLL4-010 Assembly Instruction

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loose during
shipment. Read all instruction and study the drawing carefully before starting the assembly process.
CAUTION: Make sure to read the instructions below before assembling your four motor lift chair. We suggest two people
be used in the assembly of your lift chair.

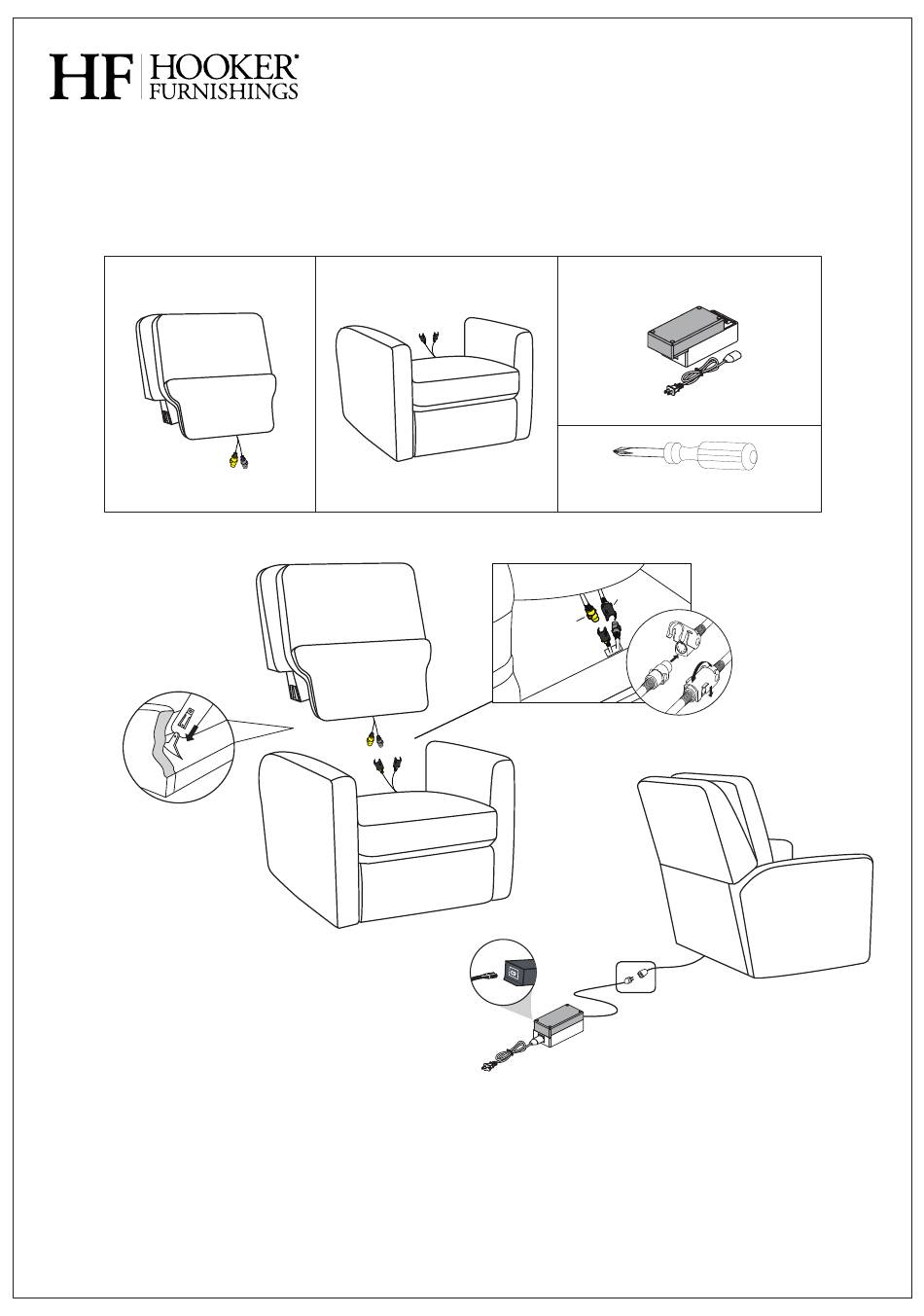

A×1
Ensure both clips on back are
aligned, then press top of back
frame downward until a clicking
sound is heard.
Do Not plug the power cord into a power outlet until your recliner is fully assembled and in place.
Notes:
1) To help prevent shock and or damage to your product only plug the power cord into a grounded outlet.
2) Read the operating instructions carefully before operating your lift chair.
IMPORTANT NOTE
· To avoid any risk of suffocation to children or pets, dispose of all plastic bags immediately.
· To ensure proper performance, occasionally check for loose screws and tighten as needed.
ASSEMBLY INSTRUCTION
ITEM: RC611-PHLL4-010 Flynn Power Recliner w/ PH, Lumbar, and Lift
B×1
A
The headrest leadwires is yellow.
The lumbar leadwires is grey.
B
Transformer
Power
Cord
C×1
Not Included
Lumbar
Headrest
C
Power Transformer and Cord
Page 1 of 2
