Summary of Contents for Midea MFM80-U1401B/C14E-AU

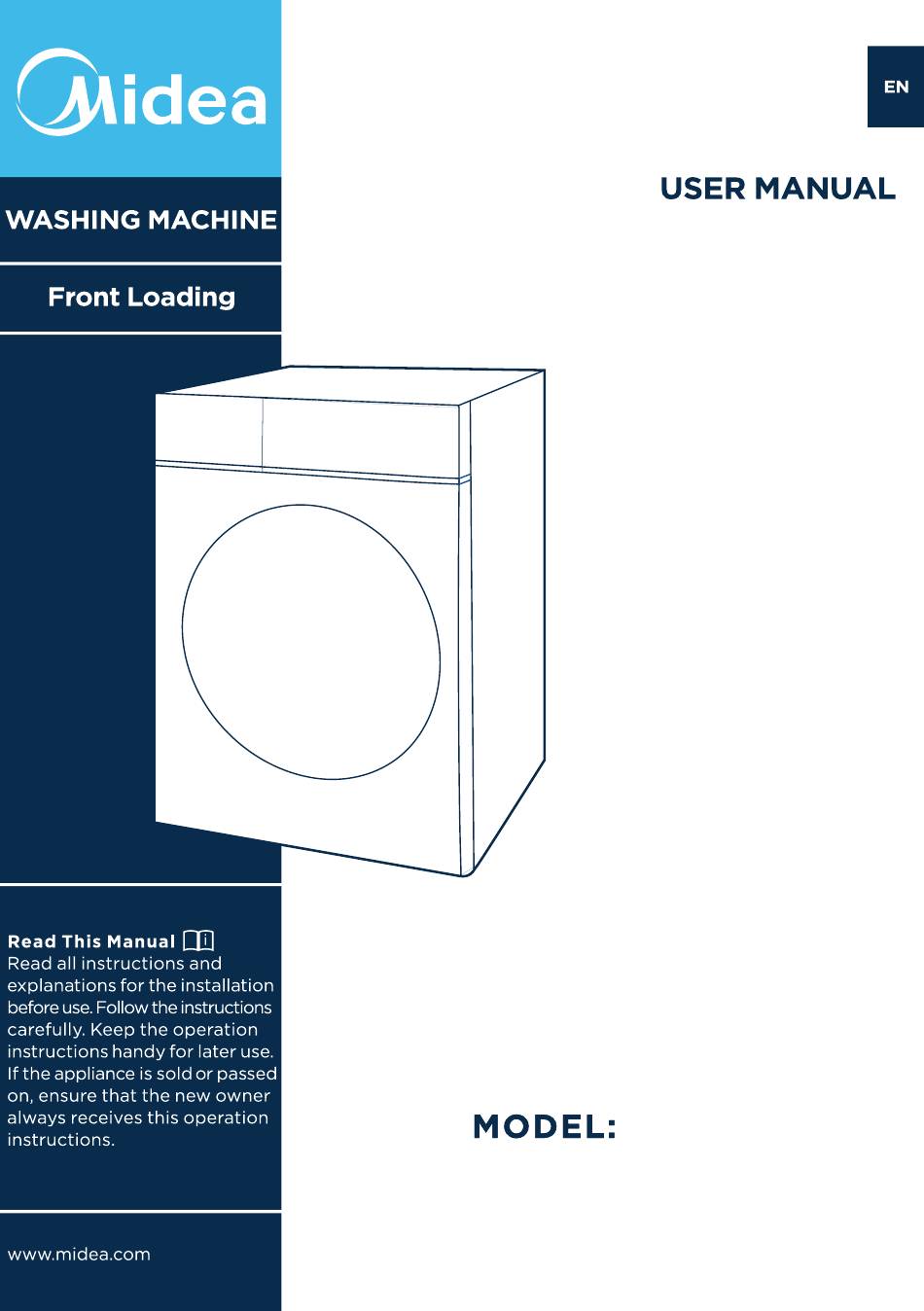

- Page 1 360487...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Programmes............Washing Programmes Table ........MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Customer Service ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. ！... - Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Installation
SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost. -
Page 6: Water Connections
SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off. -
Page 7: Operation And Maintenance
SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE •Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. •Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. -
Page 8: Intended Use
SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 9: Packaging/Old Appliance
They return and can take this product for environmental safe recycling. Model Washing Capacity 8.0kg 360487 MFM80-U1401B/C14E-AU... -
Page 10: Installation
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual Acoustic sponge 1 x Supply hose... -
Page 11: Installation Area
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •... -
Page 12: Levelling The Washing Machine
INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps. -
Page 13: Drain Hose
INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. -
Page 14: Operation
OPERATION Quick Start Caution! • Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. -
Page 15: Before Washing
OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Open tap Load Close door Add detergent Plug in Note! • Detergent need to be added in compartment I if the Pre Wash function is selected. Do not put laundry beads into the detergent dispenser. •... -
Page 16: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5 -40°C. If used under °C 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 17: Detergent Dispenser
OPERATION Detergent Dispenser Pre Wash Main Wash Softener Release button to pull out the dispenser Caution! Caution! • Detergent only need to be added in compartment I ”after selecting Pre Wash “ function. • Do not put laundry beads into the detergent dispenser. Programme Programme Cotton... -
Page 18: Control Panel
OPERATION Control Panel Start/Pause Power Product is on/off. Press the button to start or pause the washing cycle. Programmes Option This allows you to select an additional Available according to the laundry type. function. Display The display shows the settings, estimated time remaining, options, and status messages for your washer. - Page 19 OPERATION Option Temp. When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C. Spin When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-600-800-1000-1200-1400 Programme Default Speed(rpm)
- Page 20 OPERATION STAIN MASTER STAIN MASTER offers specific treatments for five scenarios(Food, Drinks, Sports & Fitness, Outdoor & Workers, Health & Beauty) to professionally solve according to laundry problems. Wash Cycles Typical stain STAIN MASTER scenarios Fresh Vegetables, Fresh Juice, Cotton， Synthetic， Mix ， Baby Care， Jeans Food Food Sauce Cotton，...
- Page 21 OPERATION My Cycle To memory the frequently used programme. After choosing the programme and setting the options, press [Spin] and [STAIN MASTER] button 3 sec. before start to wash. The default setting course is Cotton. Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum.
-
Page 22: Programmes
OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Cotton Wash synthetic articles, for example: shirts, coats, blending. Synthetic While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 23: Washing Programmes Table
OPERATION Washing Programmes Table Programme Load(kg) Default Temp.(℃) Default Time Quick 45’/15’ 0:45 Steam Hygiene 2:28 ECO Wash 0:59 20°C 1:01 Wool 1:07 Spin Only 0:12 – – 1:18 Drum Clean Jeans 1:35 Sports 0:47 Baby Care 2:01 0:58 Synthetic 1:25 1:28 Cotton... -
Page 24: Maintenance
MAINTENANCE Cleaning and Care ！ Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 25: Cleaning The Inlet Filter
MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine. -
Page 26: Cleaning The Drain Pump Filter
MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •... -
Page 27: Trouble Shooting
MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck. -
Page 28: Customer Service
MAINTENANCE Customer Service Spare part for your appliance are available for a minimum of 10 years. In case of questions please contact our customer service at: ！ Warning! Risk of electric shock • Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger.Only authorised specialists are allowed to carry out this repair work. -
Page 29: Technical Specifications
MAINTENANCE Technical Specifications Model 360487 MFM80-U1401B/C14E-AU Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 8.0kg Dimension 595mm 850mm 475mm Weight 63kg Rated Power 1950W Reference Dimension 540mm 521mm 985mm 135mm... -
Page 30: Testing Methods
MAINTENANCE Testing Methods Model:360487 MFM80-U1401B/C14E-AU ADDITIONAL INFORMATION FOR Standard performance TESTING:(AS/NZS 2040.1:2021, AS/NZS 2040.2:2021, AS/NZS 6400:2016 AS/NZS 2040.1:2005+A1+A2+A3:2010, AS/NZS 2040.2:2005+A1:2012) 1. Water connections:Cold water connection 2. Water supply pressure: 320 kPa 3. Energy Warm wash Program: ECO Wash 1400rpm, 60℃ Display:6:29 4. - Page 31 V1.0 16138100A38043...
