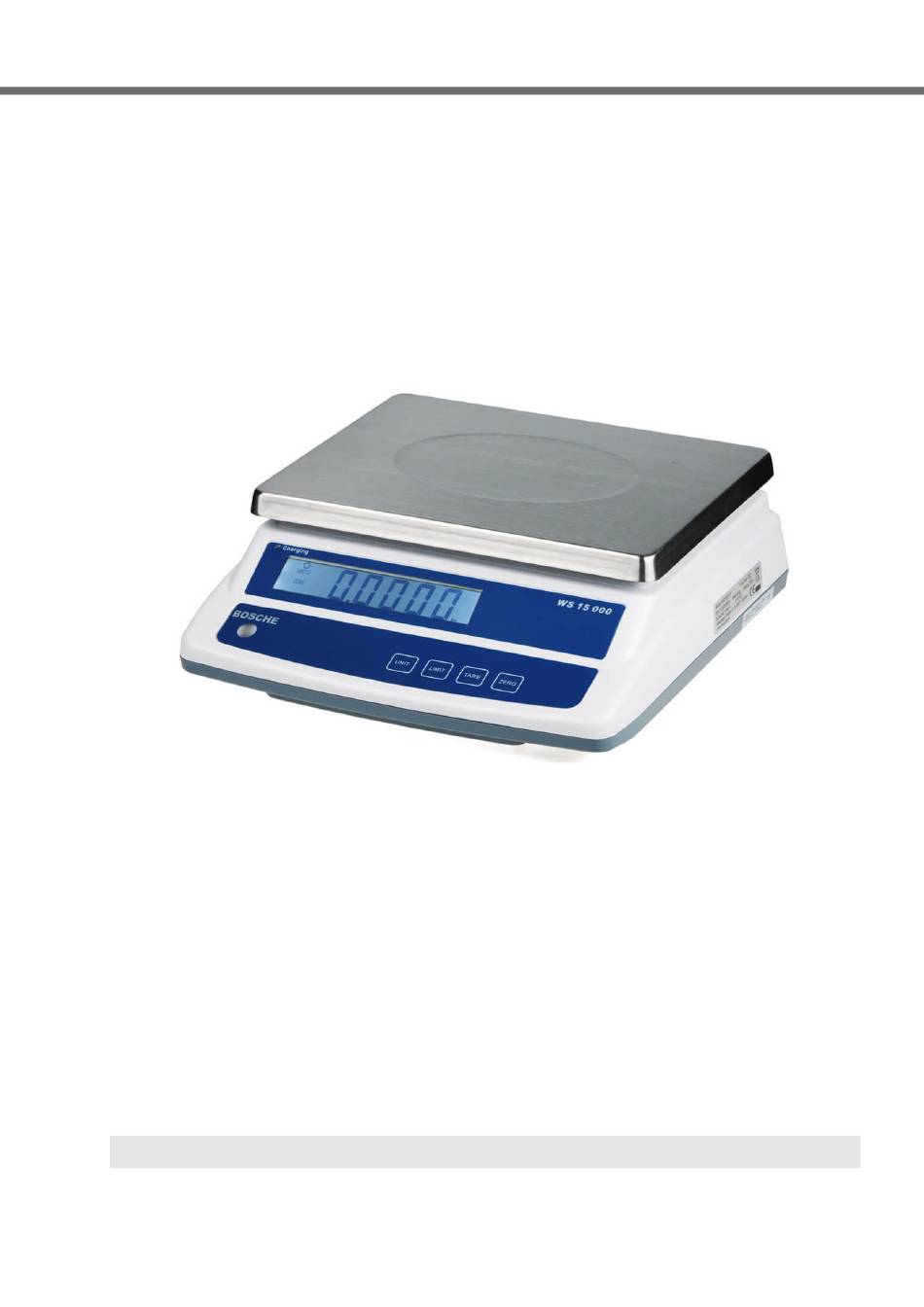

- Page 1 BOSCHE Compact scale WS 15000 Operating manual - Translation of the original - (keep for future use) Last revised: 2025-02-28...
- Page 3 This manual has been created on: 2025-02-28 Copyright Bosche GmbH & Co. KG retains all rights for this document. Copying, disclosure to third parties or use of its contents are forbidden without our express approval © 2025 Type plate example...
- Page 5 Note Errors and omissions in the documentation reserved. If necessary, please inform Bosche GmbH & Co. KG of any errors in the documentation. We would also be grateful for any suggestions for improvements that you may have. The manufacturer's contact data is listed on the reverse of the title page. If you have any queries or problems, please contact the manufacturer without delay.
-
Page 6: Table Of Contents
Table of contents Compact scale WS 15000 Table of contents 1 Safety ........................4 1.1 For your safety ....................4 1.1.1 General ....................4 1.1.2 Safety symbols in this manual ............... 4 1.2 Intended use ....................5 1.3 Inappropriate use .................... 5 1.4 Obligations of the owner/user ................. - Page 7 Compact scale WS 15000 Table of contents 8 Troubleshooting ....................27 8.1 In the event of a malfunction ................. 27 8.2 Error messages of the scales................ 27 8.3 Customer service contact data..............28 8.4 Information for the contact to the customer service ........28 9 Technical data ....................
-
Page 8: Safety
1 | Safety Compact scale WS 15000 Safety This chapter warns against possible risks when handling the device. The information for detection of risks contained in this chapter is intended to allow a save and correct operation. It is important to read and adhere to this operating manual and particularly this chapter prior to operating this device. -
Page 9: Intended Use
Safety | 1 Intended use The compact scale WS 15000 is used to determine the weight of loads. It is intended to be used as a "non-automatic" scale. Any further use is considered as not in accordance with the intended use. The manufacturer does not assume any liability for resulting damage. -
Page 10: Description Of The Dangers
The BOSCHE company offers a restricted warranty for components, which became faulty due to strain or material faults. The warranty starts with the date of delivery. The BOSCHE company retains the right to repair or replace components. Repair work executed during the warranty period will not extend the period of warranty. -
Page 11: Description
Compact scale WS 15000 Description | 2 Description Construction View from below Item Designation LCD display Voltage indicator (lights up when an external power supply is connected) Stainless steel weighing platform Control panels for the various functions of the unit. -
Page 12: Display
2 | Description Compact scale WS 15000 Display The LCD display is equipped with a backlight. 2.2.1 Display overview Battery must be charged. Net weighing TARE Stability indicator, weight is sta- Percent weighing ble. above the control range inside the control area... -
Page 13: Legend For The Weighing Value Display
Compact scale WS 15000 Description | 2 2.2.2 Legend for the weighing value display Last revised: BOSCHE Weighing Systems Page 9 2025-02-28... -
Page 14: Keybord Overview
2 | Description Compact scale WS 15000 Keybord overview The keyboard, consisting of pressure point keys with acoustic signal, is water- protected. Operating level Functional level Change of the weighing units on the display from g, kg to lb or oz. -
Page 15: Transport, Installation, Connection | 3
Compact scale WS 15000 Transport, installation, connection | 3 Transport, installation, connection Control When the device is delivered, check the packaging, the device and possible accessories for visible damage. Packaging and disposal Keep all parts of the original packaging for a possible return. -
Page 16: Installation Works
3 | Transport, installation, connection Compact scale WS 15000 Installation works • Transport the compact scale carefully, load cells are sensitive electromechanical sensors. • Remove the transport lock below the scale (if available). • Place the compact scale on a level and stable surface. -
Page 17: Installation Of The Battery
Compact scale WS 15000 Transport, installation, connection | 3 3.5.1 Installation of the battery • Switch off the scale and disconnect the main plug. • Remove the weighing platform. • Remove the protective cover (if available). • Open the battery case. -
Page 18: Operation
4 | Operation Compact scale WS 15000 Operation Attention A warm-up time of 15 minutes stabilises the measured values after switching Attention If the load on the scale exceeds the weighing range, the following message - - - - - "... -
Page 19: Weighing
Compact scale WS 15000 Operation | 4 Weighing 4.5.1 Simple weighing If the weight of the weighing sample will exceed the set weighing range the following message is displayed: > Please remove the load from the platform, immediately to avoid damage. -
Page 20: Tare Weighing
4 | Operation Compact scale WS 15000 Tare weighing 4.6.1 Determination of tare by weighing The weight of each weighing container can be removed by pressing the “Tare“ key, so that the net weight is displayed. Tare (with stable weight) -
Page 21: Check Weighing
Compact scale WS 15000 Operation | 4 Check weighing Note With the check weighing you can specifically check weights. Depending on the setting (beep), an acoustic signal (beep) sounds and an “Ok“ appears on the display. Note The set limits (max. / min.) are stored permanently and are also available after a power failure. -
Page 22: Seting Limits
4 | Operation Compact scale WS 15000 4.7.1 Seting limits ▲ ▲ Last revised: BOSCHE Weighing Systems Page 18 2025-02-28... -
Page 23: Request Of The Limit Values
Compact scale WS 15000 Operation | 4 4.7.2 Request of the limit values ▲ 4.7.3 Clear the limit values As described in Chapter 4.7.1 "Setting Limits" use the "LIMIT" and "TARE" keys to reset the limits to zero. Last revised:... -
Page 24: Parameter
5 | Parameter Compact scale WS 15000 Parameter Note To set parameters, briefly press the “LIMIT“ and “UNIT“ keys simultaneously. Navigation in the menu Navigation Change settings, increases the activa- ted digit. Save settings Change settings, moves the activated digit to the right. - Page 25 Compact scale WS 15000 Parameter | 5 d15000 EL AU A2 2d Ut on UT oFF bP 1 SPd 15 oF 0 P Cont b 9600 return Changes to the weighing mode Last revised: BOSCHE Weighing Systems Page 21 2025-02-28...
-
Page 26: Function Menu - Short Description
5 | Parameter Compact scale WS 15000 5.1.1 Function menu - short description Menu Submenu Function d 6000 Change of the digit increment, e.g. in the event of d 15000 vibrations, wind or other climatic conditions. d 3000 Digit increment... - Page 27 Compact scale WS 15000 Parameter | 5 Menu Submenu Function bEEp 0 bP 1 No beep during tolerance weighing. Akustic signal bEEp 1 Beep when weight is within tolerance. bEEP 2 Beep when weight is out of tolerance. SPd 30...
-
Page 28: Calibration
6 | Calibration Compact scale WS 15000 Calibration Example: WS 15000-06 • Switch on the unloaded scale. • While the scale counts down, press the “UNIT“ and “TARE“ keys simultaneously. - “UnLoAd“ appears on the display. • Wait a moment. - Page 29 Compact scale WS 15000 Calibration | 6 • While the self-test, remove the calibration weights from the weighing platform. - The scale changes to the weighing mode. Last revised: BOSCHE Weighing Systems Page 25 2025-02-28...
-
Page 30: Maintenance And Care
Attention Replace defective or damaged cables or cable glands as a unit. Maintenance, servicing Only trained service engineers who have been authorised by Bosche are allo- wed to open the compact scale Danger Before opening the compact scale, you must ensure that it has been safely deenergised and disconnected from the mains. -
Page 31: Troubleshooting
- Damaged electronics If any other malfunctions or error messages occur, please switch off the scales and after a short while on again. If error messages occur again, please contact the Bosche customer service. Last revised: BOSCHE Weighing Systems Page 27... -
Page 32: Customer Service Contact Data
8 | Troubleshooting Compact scale WS 15000 Customer service contact data Bosche GmbH & Co. KG Reselager Rieden 3 D-49401 Damme Phone +49 5491 999 689 0 +49 5491 999 689 9 Email info@bosche.eu Information for the contact to the customer service... -
Page 33: Technical Data | 9
Compact scale WS 15000 Technical data | 9 Technical data Dimensions Technical data Feature Value / Unit Total dimensions (W x H x D) 320 x 125 x 340 mm Dimensions weighing platform 300 x 225 mm Weight without batteries approx. -
Page 34: Scope Of Delivery
9 | Technical data Compact scale WS 15000 Max. weighing Type Readability Max. resolution range WS 15000-06 6 kg 0,5 g 1/12.000 WS 15000-15 15 kg 1/15.000 WS 15000-30 30 kg 1/15.000 Scope of delivery Component Note Compact scale Dust cover... -
Page 35: Declaration Of Conformity | 10
EN 61000-4-3:2011 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 2011/65/EU RoHS EN IEC 63000:2018 Unterzeichnet für und im Namen von Bosche: Damme, 25.11.2021 Geschäftsführer • Managing Director Directeur général • Directeur • Director general Last revised: BOSCHE Weighing Systems Page 31... - Page 36 BOSCHE GmbH & Co. KG 05491 999 689 0 Reselager Rieden 3 Fax 05491 999 689 9 49401 Damme www.bosche.eu Germany info@bosche.eu...
