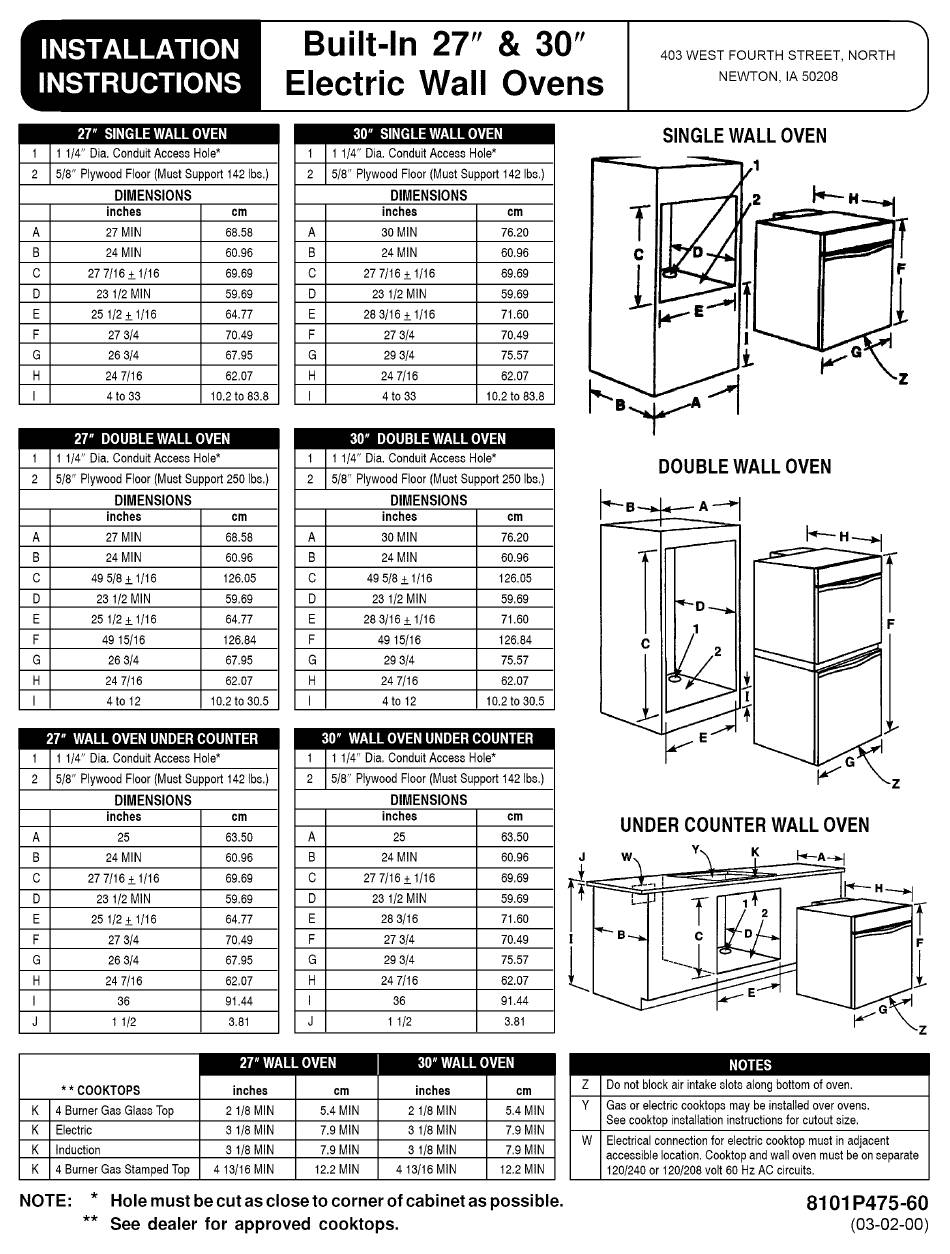

Jenn-Air JJW8527CAB Installation Instructions Manual

27" SINGLE WALL OVEN 30" SINGLE WALL OVEN
INSTALLATION
Built-In 27" & 30"
Nipestifensre) im Electric Wall Ovens
403 WEST FOURTH STREET, NORTH
NEWTON, IA 50208
1 1/4" Dia. Conduit Access Hole* 1 1/4" Dia. Conduit Access Hole*
2 | 5/8" Plywood Floor (Must Support 142 lbs.) 2 | 5/8" Plywood Floor (Must Support 142 lbs.)
DIMENSIONS DIMENSIONS
inches em inches em
A 27 MIN 68.58 A 30 MIN 76.20
B 24 MIN 60.96 B 24 MIN 60.96
c 27 7/16 + 1/16 69.69 c 27 7/16 + 1/16 69.69
D 23 1/2 MIN 59.69 D 23 1/2 MIN 59.69
E 25 1/2 + 1/16 64.77 E 28 3/16 + 1/16 71.60
F 27 3/4 70.49 F 27 3/4 70.49
G 26 3/4 67.95 G 29 3/4 75,57
H 24 7/16 62.07 H 24 7/16 62.07
| 4 to 33 10.2 to 83.8 | 4 to 33 10.2 to 83.8
27" DOUBLE WALL OVEN
1 1 1/4" Dia. Conduit Access Hole*
Mes ae eS
1 1 1/4" Dia. Conduit Access Hole*
2 | 5/8" Plywood Floor (Must Support 250 lbs.) 2 | 5/8" Plywood Floor (Must Support 250 lbs.)
DIMENSIONS DIMENSIONS
inches em inches em
A 27 MIN 68.58 A 30 MIN 76.20
B 24 MIN 60.96 B 24 MIN 60.96
Cc 49 5/8 + 1/16 126.05 Cc 49 5/8 +1/16 126.05
D 23 1/2 MIN 59.69 D 23 1/2 MIN 59.69
E 25 1/2 41/16 64.77 E 28 3/16 + 1/16 71.60
F 49 15/16 126.84 F 49 15/16 126.84
G 26 3/4 67.95 G 29 3/4 75.57
H 24 7/16 62.07 H 24 7/16 62.07
| 4to 12 10.2 to 30.5 | 4to 12 10.2 to 30.5
7" WALL OVEN UNDER COUNTER
1 1 1/4" Dia. Conduit Access Hole*
SMe eS See
1 | 1 1/4" Dia. Conduit Access Hole*
SINGLE WALL OVEN
DOUBLE WALL OVEN
~B
a
KH
G
2 | 5/8" Plywood Floor (Must Support 142 Ibs.) 2 | 5/8" Plywood Floor (Must Support 142 Ibs.) ja Zz
DIMENSIONS DIMENSIONS
inches = mehes = UNDER COUNTER WALL OVEN
A 25 63.50 A 25 63.50
B 24 MIN 60.96 B 24 MIN 60.96
c 27 7/16 + 1/16 69.69 c 27 7/16 + 1/16 69.69
D 23 1/2 MIN 59.69 D 23 1/2 MIN 59.69
E 25 1/2 + 1/16 64.77 E 28 3/16 71.60
F 27 3/4 70.49 F 27 3/4 70.49
G 26 3/4 67.95 G 29 3/4 75,57
H 24 7/16 62.07 H 24 7/16 62.07
| 86 91.44 | 86 91.44
J 11/2 3.81 J 11/2 3.81
27" WALL OVEN | 30" WALL OVEN NOTES
** COOKTOPS inches cm inches cm Z_ | Do not block air intake slots along bottom of oven.
K | 4 Burner Gas Glass Top 2 1/8 MIN 5.4 MIN 2 1/8 MIN 5.4 MIN Y | Gas or electric cooktops may be installed over ovens.
- See cooktop installation instructions for cutout size.
K | Electr 8 1/8 MIN 79 MIN 8 1/8 MIN 79 MIN W | Electrical connection for electric cooktop must in adjacent
K_| Induction 8 1/8 MIN 7.9 MIN 8 1/8 MIN 7.9 MIN accessible location. Cooktop and wall oven must be on separate
K | 4 Burner Gas Stamped Top | 4 13/16 MIN 42.2 MIN 4 13/16 MIN 12.2 MIN 120/240 or 120/208 volt 60 Hz AC circuits.
NOTE: * Holemustbecutas close to corner of cabinet as possible. 8101P475-60
** See dealer for approved cooktops.
(03-02-00)
