BDE -2007 User Manual

Weighing indicator & controller
Hide thumbs Also See for BDE-2007:
Table of Contents

Advertisement

Quick Links

Download this manual

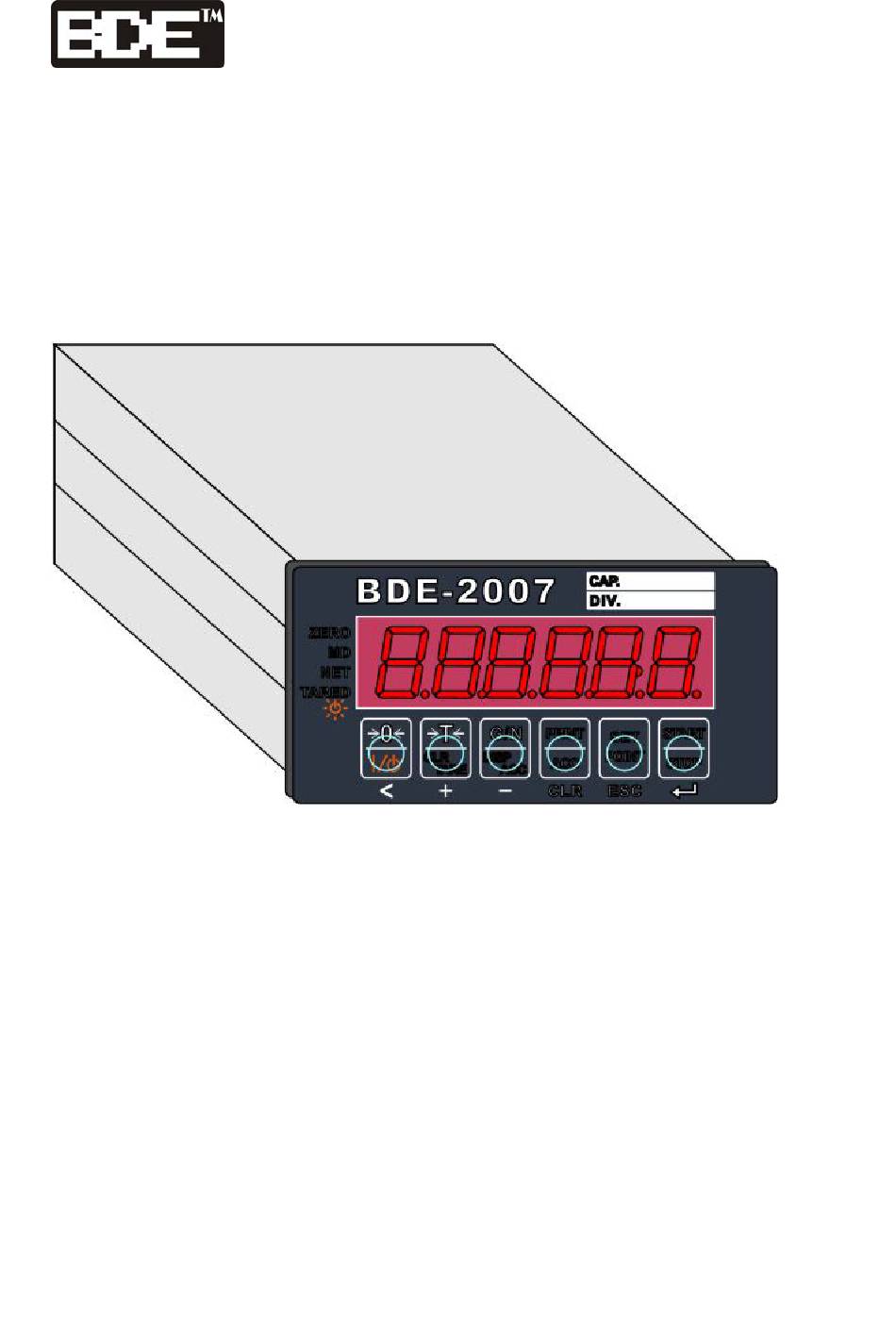

BENEDICTION ENTERPRISE CO., LTD.
BDE-2007
Weighing Indicator & Controller
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDE-2007 and is the answer not in the manual?

Questions and answers

Related Manuals for BDE BDE-2007

Summary of Contents for BDE BDE-2007

  • Page 1 BENEDICTION ENTERPRISE CO., LTD. BDE-2007 Weighing Indicator & Controller User’s Manual...

  • Page 2: Table Of Contents

    Contents * CHAPTER 1 INTRODUCTION 1-1 Items in Carton ------------------------------------------------------------------------ 1 * CHAPTER 2 INSTALLATION 2-1 Best Conditions for Use ------------------------------------------------------------- 2 2-2 Connecting the Load Cell ----------------------------------------------------------- 2 2-3 Front and Rear Panel Dimensions ----------------------------------------------- 3 * CHAPTER 3 SPECIFICATIONS 3-1 Analog Input and A/D Conversion --------------------------------------------------- 5 3-2 General ----------------------------------------------------------------------------------- 5 3-3 Front Panel Description -------------------------------------------------------------- 6...

  • Page 3: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION § 1-1 Welcome The BDE-2007-6KEY weighing indicator can be applied to many industries. The purpose of designing BDE-2007-6KEY is to perform quick and accurate controls. Please contact us immediately for further technical services and support if needed.

  • Page 4: Chapter 2 Installation

    CHAPTER 2 INSTALLATION § 2-1 Best Conditions for Use When installing and wire connecting on BDE-2007-6KEY, please follow the points and guide for preventing any abnormal situation occurred. ◎ Before connecting the Electric Power Supply, please identify the input electric voltage type is DC 12V or DC 24V.

  • Page 5: Front And Rear Panel Dimensions

    Do not bind these cables together as it could result in cross-walk interface. Please keep them away from AC power cables. § 2-3 Front and Rear Panel Dimensions Front View of BDE-2007-6KEY Rear View of BDE-2007-6KEY...
  • Page 6 § 2-4 Side View and Mounting Dimensions Side View of BDE-2007-6KEY Mounting Cut for BDE-2007-6KEY...

  • Page 7: Chapter 3 Specifications

    CHAPTER 3 SPECIFICATIONS § 3-1 Analog Input and A/D Conversion ◎ Analog Input and A/D Conversion Model BDE-2007-6KEY 0.12μV/D or above Input Sensitivity ZERO Adjustment Range 0 ~ 12mV DC 5V ±5%, 120mA, Remote sensing. Load Cell Excitation It can be connected up to 8 load cells (350 Ω...

  • Page 8: Front Panel Description

    § 3-3 Display and Signs ◎ 3-3-1 Front Panel of BDE-2007-6KEY ◎ Front Panel Description Display Description Six digits, 8.8.8.8.8.8 ① including decimal point ( positive) Kg、g、t、lb Unit of measurement ② ZERO 〝 ZERO 〞 Unstable 〝 M.D.〞 〝 NET 〞...
  • Page 9 POINT Enter value START Start / Stop when setting STOP ◎ 3-3-3 Rear Panel of BDE-2007-6KEY Description Description ① DC power input ② Serial interface ③ Load cell input 7 pins ④ SET cover ⑤ Lead sealing screw...

  • Page 10: Chapter 4 System Functions

    § 4-1 System Check A system check should be run in the following situations: after initial installation, after moving your BDE-2007-6KEY, after connecting or disconnecting an attachment from the Rear Panel and as means of locating any unexplained system error.
  • Page 11 After entering the value, please press  key to confirm. If you press ESC key, then it will not save the value that you already set or changed, and will skip to next step. Step 5: Press ESC key, and back to last layer. Please hold ESC key to end function setting, then it will go back to normal mode.
  • Page 12 F005 Motion Detection Stable 0.5 SEC., 1 DIV. 1 SEC., 1 DIV. 0.5 SEC., 2 DIV. 1 SEC., 2 DIV. ● 0.5 SEC., 3 DIV. 1 SEC., 3 DIV. 0.5 SEC., 4 DIV. 1 SEC., 4 DIV. 0.5 SEC., 5 DIV. 1 SEC., 5 DIV.
  • Page 13 F101 Batching Mode Customer Programmed Control Mode: Normal Batching Customer Programmed Control Mode: Loss-in-Weight Batching Built-in Automatic Program Mode: Normal Batching ● Built-in Automatic Program Mode: Loss-in Weight Batching PEAK Hold Function (Only available when weight value is positive.) Timer-Comparator Inhibitor F102 Set between 0.0 and 2.0 sec.
  • Page 14 F104 Pulse Width of Finish Signal Set between 0.0 and 2.0 sec. ● Initial: 0.5 sec. ※ Finish signal sent ON at 0.0 sec., and stays ON until the next START signal. ※ Only apply to Batching Mode 3 and 4. Output 8 F105 Unstable...
  • Page 15 Set Data Length, Parity, Stop Bit F201 D8, N, 1 D7, E, 1 ● D7, O, 1 D8, N, 2 D8, E, 1 D8, O, 1 Only 3. 4. 5 applicable to Modbus (RTU) Output Data F202 Same as the display ●...
  • Page 16 ◎ 4-2-4 Analog Output F500 Analog Output Data Output 4~20mA ● Output 0~+10V Output Mode F501 Same as the Display ● GROSS Weight NET Weight Loss-in-Weight Absolute Value F502 ● Not Read Absolute Value Read Absolute Value F503 Output Current When Display ZERO 0.0 through 99.9 ●...

  • Page 17: Calibration

    FL01 Output Data Same as the Display ● GROSS Weight NET Weight TARE Weight GROSS Weight, NET Weight, Tare Weight FL02 Output Mode Stream ● Stable and automatic print Manual Print Mode Accumulate and Print § 4-3 Calibration ◎ 4-3-1 Set Calibration STEP 1: Turn off the POWER, Rear panel SET 1 It shows CAL →F-CAL.

  • Page 18: System Initialize

    ◎ Calibration Errors C.Err 1: The resolution exceeds 1: 30,000.  Change the minimum division and maximum capacity within 1/30,000. 【Resolution ratio = Minimum division / Maximum capacity】 C.Err 2: The load cell output is too large at ZERO calibration. ...

  • Page 19: Accumulation

    finishing operation. If you choose YES, it will show …… to execute Initialization. When finishing Initialization, it will show END. STEP 4: Please slide rear panel SET 1 OFF, and back to normal mode. § 4-5 Accumulation ◎ 4-5-1 Display Accumulation Press DISP ACC key more than 2 seconds, it will display Accumulation Count.

  • Page 20: Batching Modes

    § 5-2 Batching Modes Batching Modes  1. Customer Programmed Control Mode: Normal Batching 2. Customer Programmed Control Mode: Loss-in-Weight Batching 3. Built-in Automatic Program Mode: Normal Batching 4. Built-in Automatic Program Mode: Loss-in-Weight Batching 5. 正 hold 功能 ◎ 5-2-1 Customer Programmed Control Mode: Normal Batching (F101 =1) SP1 –...
  • Page 21 by using the ZERO band (Pin 13) output ON signal. 10. Now you are ready for your next batching event. ◎ 5-2-2 Customer Programmed Control Mode: Loss-in-Weight Batching (F101 =2) SP1 – Supplying Bin Gate SP2 – Full Flow Gate Free –...
  • Page 22 OFF. If both outputs are OFF then the batch is completed correctly. 10. An Automatic Free Fall Compensation Command (Min. 200ms pulse to Pin 21) may be given at this time. 11. If the GROSS weight of the weighing hopper is below the ZERO band (Pin 13), the ZERO band output will be ON.
  • Page 23 ◎ 5-2-3 Automatic Program Mode: Normal Batching (F101 =3) SP1 – Full Flow Gate SP2 – Medium Flow Gate Free – Dribble Flow Gate Start signal – Pin 22 1. The weighing hopper is empty, the display shows “0”, and all gates are closed. If the display is not at ZERO, input a TARE signal (Pin 24) to re-ZERO the display.
  • Page 25 ◎ 5-2-4 Automatic Program Mode: Loss-in-Weight Batching (F101 =4) SP1 – Supplying Bin Gate SP2 – Full Flow Gate Free – Dribble Flow Gate Start signal – Pin 22 1. The weighing hopper / supplying bin is empty. The display shows “0”, and all Gates are closed.
  • Page 26 16. Ready for the next batching event. 17. If an Abort signal is sent (Pin 21) anytime after the Start Signal is received, then (1) SP1, SP2, and Free signals will go OFF, and Gates will be closed. (2) Batch Finish and Data Output signals will be sent. (3) NET weight data will be accumulated.

  • Page 27: Chapter 6 Options

    ZERO Input Pulse BDE-2007-6KEY will ZERO according to F004. Pin 24 TARE Input Pulse BDE-2007-6KEY will return to zero and store tared weight. Pin 23 TARE Reset Pulse Clear tared weight. Pin 21 Automatic free fall Pulse When Pin 21 and COM1 get a short compensation when batching.

  • Page 28: Serial Interface

    Pin 25 ZERO Input Pulse BDE-2007-6KEY will ZERO according to F004. Pin 24 TARE Input Pulse BDE-2007-6KEY will return to zero and store tared weight. Pin 23 TARE Reset Pulse Clear tared weight. Pin 22 Batch/Loss-in- weight Pulse Start batch.
  • Page 29 ◎ 6-2-1 OP-02A (RS-232 )  Specifications Type EIA-RS-232C Transmission Half Duplex, Asynchronous Transmission 2400、4800、9600BPS Baud Rate 8 bit 7 bit Parity Non- parity Odd / even parity Stop bit 1 bit Output Code ASCII 25 Pin assignments: Assignment Pin 1 TxD2 (Transmit Data) Pin 2 SG (Signal Ground)
  • Page 30  ： Pins when connect PC ◎ 6-2-3 Data Format for Serial Output Interface (OP-02) F205＝0 （Standard）: ※ format1（F002）  UNIT S T ， N T ， 0 0 5 4 3 2 ‧ 1 k g Cr Lf Header1 Header2 Data（8 digits in length） ※...
  • Page 31 R01 Cr Lf〈READ〉 (Data format depends on F202) BDE-2007-6KEY display will ZERO. K01 Cr Lf〈ZERO〉 K01 Cr Lf will be sent by BDE-2007-6KEY . BDE-2007-6KEY will go to NET Mode and display will K02 Cr Lf〈TARE〉 TARE. K02 Cr Lf will be sent by BDE-2007-6KEY .
  • Page 32 R04 Cr Lf BDE-2007-6KEY, 〈READS FINAL NET〉 that means batching is still in process. (Only F101=3,4) Signal “S Cr Lf ” will send back by BDE-2007-6KEY. W02: Data Cr Lf BDE-2007-6KEY will send back SET POINT CODE until totally 〈SETPOINT〉...

  • Page 33: Analog Output

    ◎ 6-2-6 W01 Command Format Zero Range  ※ Please setup F204 first and give command @XX（XX＝F204） Ex: @XX R01 Cr Lf @XX K01 Cr Lf § 6-3 Analog Output (OP-05) Please refer to ◎ 4-2-4 F500 ~ F504 ◎ 6-3-1 OP-05 Analog Output 4~20mA ＊...
  • Page 34 When Output at Full Scale is set at 36mA, and Output Current at Display ZERO is set at 4mA, then at 1/2 Capacity (5000kg) the Output Current will be 20mA. ※ NOTE: The Maximum Output will be saturated at 24mA. Output Circuit：...

  • Page 35: Relay Control Interface Op-08

    § 6-4 Relay Control Interface (OP-08) This option is to connecting BDE-2007-6KEY OP-01 Control I/0, which enable OP-01 to RELAY OUTPUT. Specifications: Power： Standard：DC 24V from Outside. Accessory： （1）5 PIN Male to Female Wire 1.8 Meter. (A) RELAY TYPE Input (IN): CONTROL I/O Pins Number of Pins: 8.

  • Page 36: Modbus

    § 6-5 Modbus Please refer to ◎ 4-2-3 F200 ~ F204  Modbus: Address 1~99 Baud Rate 2400BPS、4800BPS、9600BP 8 bit Non-parity、Odd parity、Even parity Parity 1 bit、2 bit Stop bit Output Code Modbus RTU ◎ 6-5-1 Modbus Data Address Table Data Register Modbus Address R/W Type Function...
  • Page 37 Bit I/O Address Modbus Address SCALE Intput R/W Type Function R/W Bit R:01,W:05 00001 ZERO R/W Bit R:01,W:05 00002 TARE R/W Bit R:01,W:05 00003 TARE Cleared R/W Bit R:01,W:05 00004 Display G.W. R/W Bit R:01,W:05 00005 Display N.W. R/W Bit R:01,W:05 00049 Add 1 R/W Bit R:01,W:05...
  • Page 38 6-5-2 Function codes descriptions 01(0x01) Read Coils Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x01 Starting Address 2 Bytes 0x0000 to 0x00FF Quantity of coils 2 Bytes 1 to 53(0x35) CRC Check 2 Bytes Response: Field Name (Hex)
  • Page 39 02(0x02) Read Discrete inputs Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x02 Starting Address 2 Bytes 0x0000 to 0x00FF Quantity of Inputs 2 Bytes 1 to 57(0x39) CRC Check 2 Bytes Response: Field Name (Hex) Address 1 Bytes 0 to 99(0x63)
  • Page 40 03(0x03) Read Holding Registers Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x03 Starting Address 2 Bytes 0x0000 to 0x00FF Quantity of Registers 2 Bytes 1 to 12(0x0C) CRC Check 2 Bytes Response: Field Name (Hex) Address 1 Bytes...
  • Page 41 04(0x04) Read Input Registers Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x04 Starting Address 2 Bytes 0x0000 to 0x00FF Quantity of Input Registers 2 Bytes 1 to 14(0x0E) CRC Check 2 Bytes Response: Field Name (Hex) Address...
  • Page 42 05(0x05) Write Single Coil Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x05 Output Address 2 Bytes 0x0000 to 0x00FF Output Value 2 Bytes 1 to 53(0x35) CRC Check 2 Bytes Response: Field Name (Hex) Address 1 Bytes 0 to 99(0x63)
  • Page 43 06(0x06) Write Single Register Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x03 Register Address 2 Bytes 0x0000 to 0x00FF Register value 2 Bytes 1 to 12(0x0C) CRC Check 2 Bytes Response: Field Name (Hex) Address 1 Bytes 0 to 99(0x63)
  • Page 44 16(0x10) Write Multiple Register Request: Field Name (Hex) Address 1 Bytes 0 to 99(0x63) Function code 1 Bytes 0x10 Starting Address 2 Bytes 0x0000 to 0x00FF Quantity of Registers 2 Bytes 1 to 12(0x0C) Byte Count 1 Bytes 2*N CRC Check 2 Bytes Response: Field Name...
  • Page 45 Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo Register value Hi Register value Lo...
  • Page 46 【CHARACTERS】...
