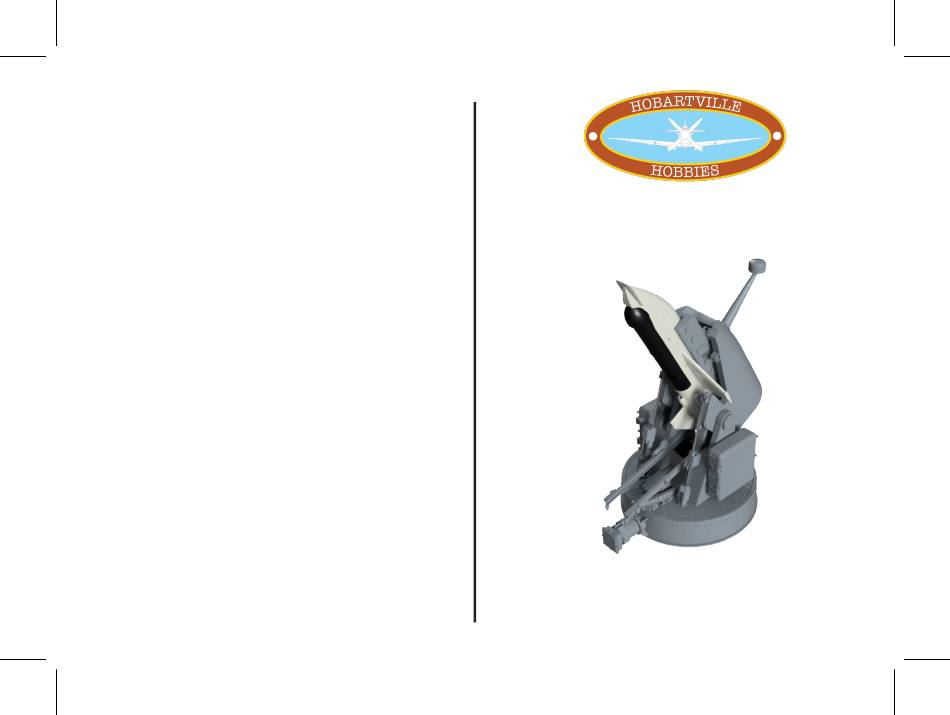

- Page 1 GAF Ikara and launcher 1/72 scale model kit ASSEMBLY GUIDE HHK-72011...
-
Page 2: Before You Begin
BEFORE YOU BEGIN Please go through these instructions carefully before beginning assembly. Many parts will need painting before glueing into place. Always test-fit parts before glueing. Kit and instructions ©2024 Hobartville Hobbies. Proudly made in Australia. -
Page 3: Parts List
PARTS LIST There are only two parts to this kit - the Ikara missile and its launcher. A length of brass wire has also been included which must be cut to 2 x 10mm and 2 x 13mm lengths. CAUTION! The base of the two hydraulic struts are EXTREMELY FRAGILE! Great care must be taken when handling the launcher and working working with the struts because they are very easily broken! - Page 4 PAINTING GUIDE Fit 10mm rods through upper holes down to lower holes in hydraulic ram assembly Fit 13mm rod into upper hole hydraulic ram assembly...
- Page 5 COLOUR KEY NAME SMS* TAMIYA HUMBROL GUNZE Insignia White PL72 AS-20 H316 Dark Ghost Grey PL165 (none) H307 Matt black PL33 XF-1 ...then place upper end of rod PL217 H327 under joiner point on cowling. Repeat for other side *SMS (The Scale Modellers Supply) is a range of high-quality, airbrush ready acrylic lacquer paints manufactured in Australia.
- Page 6 Spigot should support missile using hole as shown...
