CompAir Delcos Pro Quick Reference Manual

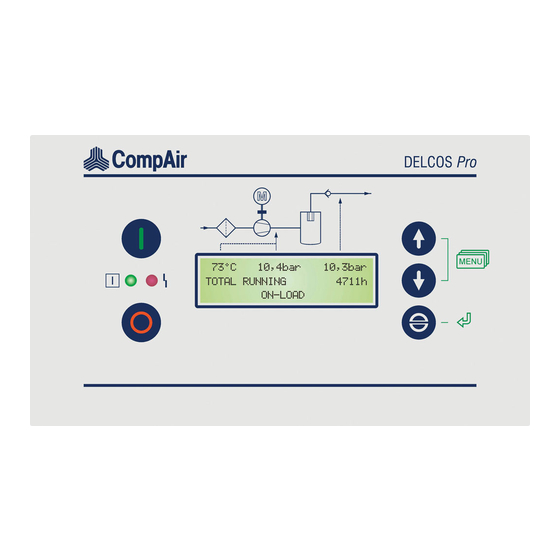

Key to Status & Message Display
1st Line:- 1a. Air End Discharge Temperature
1b. Compressor Pressure (Internal)
1c. Line Pressure (External)
Note: 1st line may also contain following symbols:-
(2nd pressure range/timer active)
P
2
(Remote start/stop activated)
2nd Line:- View/set menu values
3rd Line:- Status/Warning/Fault Messages
Key to Buttons
START UNIT
STOP UNIT
UP: Scrolls Up in Menu Routines /
Increases a value
DOWN: Scrolls Down in Menu Routines /
Decreases a value
RESET: Resets Faults & Warnings /
Acts as "Enter" Key (¿) in sub-menus
Key to L.E.D.s
Green L.E.D.
Flashing: Unit in standby
Steady: Unit running
Red L.E.D.
Flashing slowly: Warning/Service Due
Flashing rapidly: Fault - Shutdown
DL086AA CompAir Drucklufttechnik GmbH, Argenthaler Straße 11, D-55469, Simmern/Hunsrück, Germany.
1a
o
73 C
TOTAL RUNNING
2nd Line 3rd Line
(See 3rd line of display)
(See 3rd line of display)
Tel: +49 6761 8320 Fax:+49 6761 832409
Training Enquiries: product.training@compair.com
Quick Reference Guide
1c
1b
ELCOS
10,4bar 10,3bar
4711h
ON-LOAD
Language Selection
Press and hold
language using the
Access Codes
Customer
Factory Code
Setup Code
Rotation Off
Rotation On
Power Fail Time
Accessing Menus
Press &
• Call up or exit the main menu
• Exit a sub-menu
Press button to enter a sub-menu.
Main Menu Structure
Maintenance Sched.
Control Menu
Fault Memory
Timer Control
Limit Values
Optional In-Outputs
Extended Menus *
Diagnose Digital
Diagnose Analog
Diagnose Delcos
* Viewable via Master Access Code only
See overleaf for details of Main and Extended Menus
Email: info@compair.de
Delcos Pro
ro
MENU
SM 1504
button. Scroll to the required
buttons.
3031
3011
2222
9998
9997
8888
buttons simultaneously to:-
04/2008
