Summary of Contents for Lemmer DC-4200

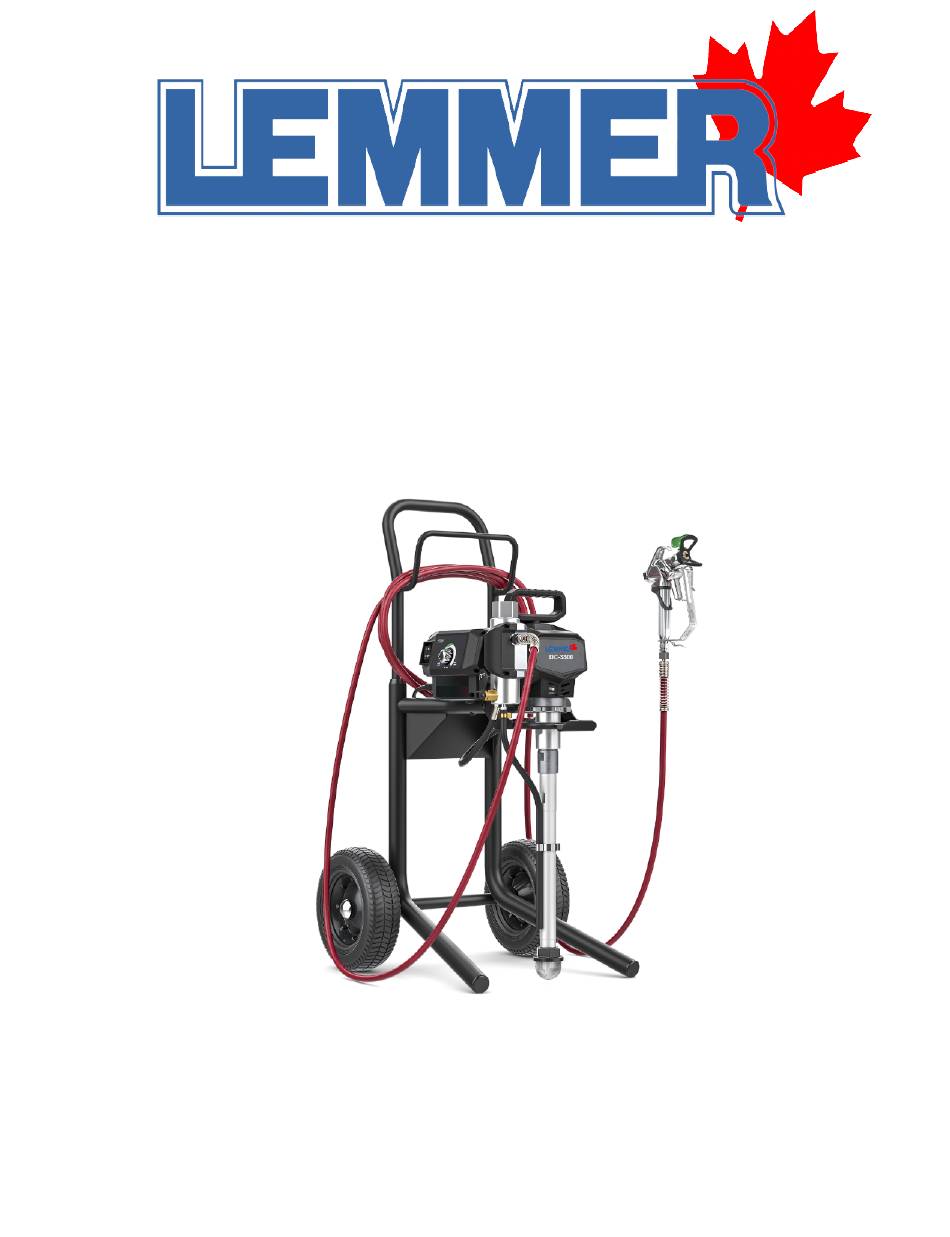

- Page 1 Part Diagram DC-4200 www.LEMMER.com...
-
Page 2: Safety Regulations For Airless Spraying
SAFETY PRECAUTIONS Check with a qualified electrician or serviceman if the grounding SAFETY REGULATIONS FOR AIRLESS instructions are not completely understood, or if you are in doubt SPRAYING as to whether the product is properly grounded. Do not modify the plug provided. - Page 3 1MΩ. • Avoid creating sparks from connecting and disconnecting power For reasons of function, safety and durability use only original Lemmer cords. high-pressure hoses. •...
-
Page 4: Maintenance
SAFETY PRECAUTIONS / MAINTENANCE MAINTENANCE WARNING: HAZARDOUS VAPORS Paints, solvents, and other materials can be harmful PRESSURE RELIEF PROCEDURE if inhaled or come in contact with body. Vapors can cause severe nausea, fainting, or poisoning. Be sure to follow the Pressure Relief Procedure when shutting down the sprayer for any purpose, PREVENTION: including servicing or adjusting any part of the... -
Page 5: General Repair And Service Notes
MAINTENANCE GENERAL REPAIR AND SERVICE NOTES REPLACING THE MOTOR The following tools are needed when repairing this sprayer: Perform the Pressure Relief Procedure and unplug the sprayer. Loosen and remove the four screws (Fig. 1, item 1) that secure the Needle Nose Pliers 7/16”... -
Page 6: Replacing The Gears
MAINTENANCE REPLACING THE GEARS Perform the Pressure Relief Procedure and unplug the sprayer. Inspect the armature gear (10) on the end of the motor for damage or excessive wear. If this gear is completely worn out, Loosen and remove the four screws (Fig. 2, item 1) that secure the replace the entire motor. -
Page 7: Replacing The Transducer
MAINTENANCE REPLACING THE TRANSDUCER REPLACING THE PRIME/SPRAY VALVE Using a T15 driver, remove the six control panel mounting screws Perform the following procedure using PRIME/SPRAY valve (Fig. 3, item 1). Pull back the control panel cover (2) for access to replacement kit P/N 700-258 the control panel board. -
Page 8: Servicing The Fluid Section
MAINTENANCE Skid units - Remove the retaining clip from the bottom of the SERVICING THE FLUID SECTION pusher stem housing. Remove the siphon assembly. For High Rider units the siphon tube can remain threaded into Perform the following steps before performing any the pusher stem housing. -
Page 9: Servicing The Valves
MAINTENANCE 2.7.2 Clean out any debris and examine the outlet valve retainer (10) SERVICING THE VALVES and seat (11). If the seat is damaged, reverse or replace the seat. Remove, clean, and inspect the outlet cage (14), crush washer The design of the fluid section allows access to the (13), and outlet valve ball (12). -
Page 10: Repacking The Fluid Section
MAINTENANCE 2.7.3 Place the lock nut (Fig. 11, item 9) over the cylinder (4). REPACKING THE FLUID SECTION Insert the piston guide (6) into the retainer nut (5). Thread the Remove the foot valve assembly using the steps in the “Servicing retainer nut (5) into the cylinder until it is hand tight. - Page 11 MAINTENANCE REPLACING THE FILTERS For more detail, part number information, and complete assembly drawings, please see the RX-80 PUMP FILTER Airless Gun Owner’s Manual. Loosen and remove the filter cap (Fig. 13, item 1). Slip the filter (2) off of the filter core (3). Inspect the filter (2).
-
Page 12: Replacing The Control Board
MAINTENANCE 2.10 Using a 1/4” socket or nut driver, remove the ground wire (Fig. 18, REPLACING THE CONTROL BOARD item 9). Unplug the power cord (10) connections from the control board. Remove the power cord. Perform the Pressure Relief Procedure and unplug the sprayer. Loosen and remove the six screws (Fig. -
Page 13: Troubleshooting
Faulty or loose wiring. Inspect or take to a Lemmer service center. Excessive motor temperature. Allow motor to cool. ON/OFF switch is defective. -
Page 14: Error Messages
TROUBLESHOOTING ERROR MESSAGES If there is a sprayer malfunction, the green motor running indicator will blink in a specific pattern to indicate the type of malfunction. See below for an explanation of the blinking patterns. • The number of blinks immediately following the long pause is the first number •... - Page 15 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO MAIN ASSEMBLY ENSEMBLE PRINCIPAL CONJUNTO PRINCIPAL...
- Page 16 Skid High Cart Description Description Descripción Qty. Qté. Cant. ------- ------- Screw Tornillo ------- ------- Screw Tornillo 2425879A 2425879A Motor shroud, rear Carter du moteur, arrière Cubierta del motor, trasero ------- ------- Drive assembly Boîte d’engrenages Ensamblaje de la caja de engranajes 2441852A -------...
- Page 17 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO SUCTION SET ASSEMBLY ENSEMBLE D’ASPIRATION ENSAMBLAJE DEL JUEGO DE SUCCIÓN...
- Page 18 Skid Description Description Descripción Qty. Qté. Cant. 2426336 Siphon tube assembly (includes Ensemble d’aspiration Ensamblaje del juego de succión items 1, 5-7) (comprend les articles 1, 5-7) (incluye articulos 1, 5-7) -------- Tie wrap Cord d’amarrage Amarra 2426337 Return tube (includes item 4) Tube de retour Tubo de retorno L045-581 Clip...
- Page 19 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO DRIVE ASSEMBLY ENSEMBLE MOTEUR ENSAMBLAJE DE LA CAJA DE ENGRANAJES All electrical work should be performed by an authorized service center. Tous les travaux d’électricité doivent être effectués par le personnel d’un centre de service autorisé.
- Page 20 Description Description Descripción Qty. Qté. Cant. 2425405A Housing assembly Logement de la pompe Caja de la bomba 2426582A Slider assembly Bielle Vara conectora 2440559 Fluid section assembly Ensemble de section des liquides Ensamblaje de sección de líquidos 2426228 Fluid hose Tuyau pour fluide Manguera de líquidos 704-174...
- Page 21 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO FLUID SECTION POMPE À PEINTURE ZONA DE PINTURA La partie surélevée et le Instale la empaquetadura Install upper packing joint torique du tampon superior con el reborde with raised lip and supérieur doivent être levantado y la junta tórica...
- Page 22 Description Description Descripción Qty. Qté. Cant. 2420537 Retainer Rondelle de retenue Retén Contratuerca 2418295 Locking nut Contre-écrou 700-587 Piston guide Guide-piston Guía de piston ------- Upper packing Tampon graisseur supérieur Empaquetadura superior 2418182A Pump cylinder Cylindre de pompe Cilindro de bomba ------- Lower packing Tampon graisseur inférieur...
- Page 23 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO CART ASSEMBLY ENSEMBLE DE CHARIOT ENSAMBLAJE DE CARRO...
- Page 24 High Cart Description Description Descripción Qty. Qté. Cant. 2426619A Handle kit Trousse de poignée Juego de mango ------- Screw Tornillo ------- Washer Rondelle Arandella 2426732A Cart Chariot Carro 278373 Wheel Roue Rueda ------- Wheel spacer Espaceur de roue Separador de rueda ------- Axle cap Chapeau...
- Page 25 SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO FILTER ASSEMBLY ENSEMBLE DU FILTRE ENSAMBLAJE DE FILTRO Description Description Descripción Qty. Qté. Cant. 2424931A Filter cap Bouchon du filtre Tapa de filtro 2424934 O-ring Joint torique Junta tórica 2424932 Filter core...
-
Page 26: Spare Parts Diagram
SPARE PARTS DIAGRAM ILLUSTRATION DES PIÈCES DE RECHANGE CUADRO DE PIEZAS DE RECAMBIO ELECTRICAL SCHEMATIC SCHÉMA DE RACCORDEMENT ÉLECTRIQUE ESQUEMA ELÉCTRICO All electrical work should be performed by an authorized service center. Tous les travaux d’électricité doivent être effectués par le personnel d’un centre de service autorisé.
