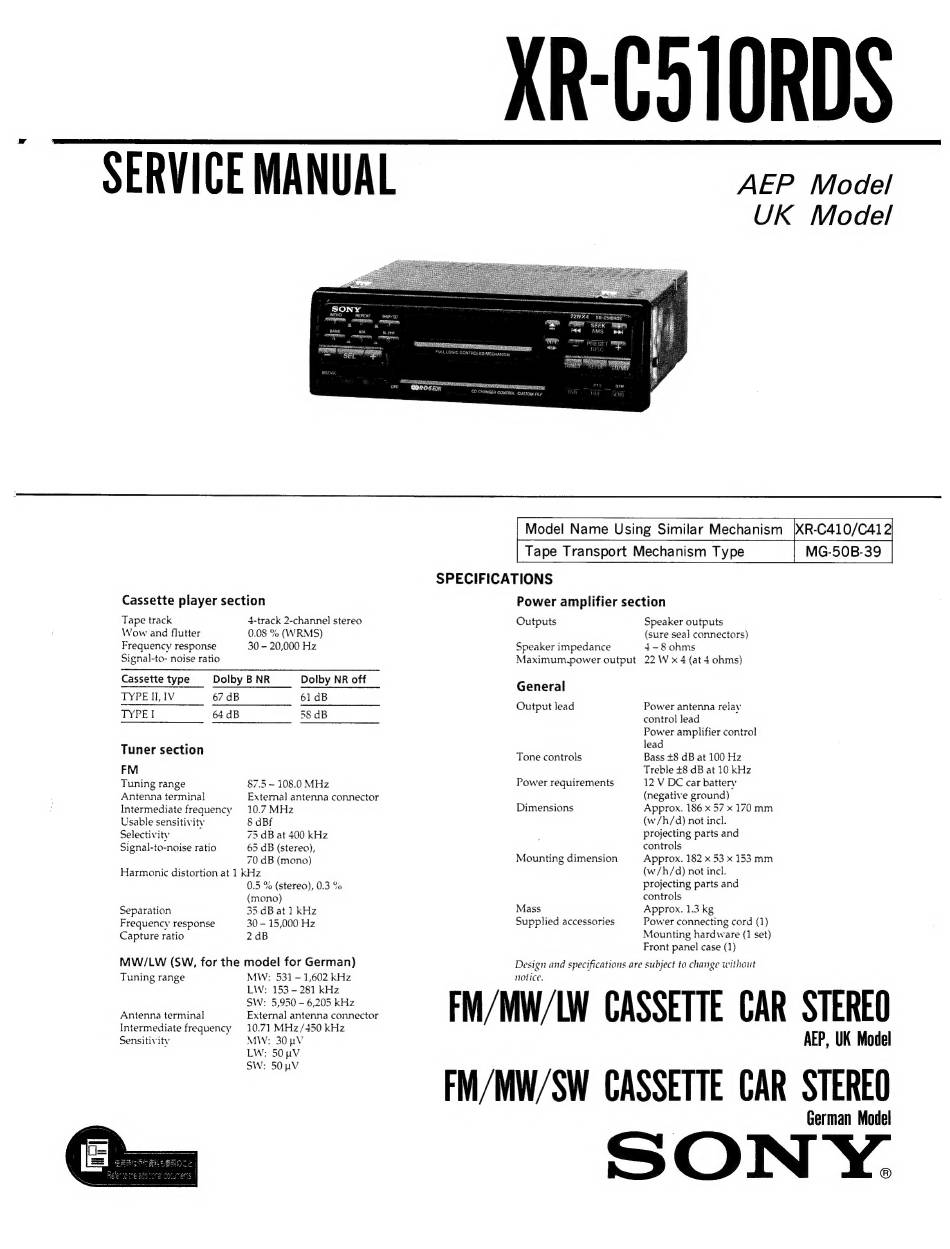

Sony XR-C510RDS Service Manual

SERVICE MANUAL
XR-ColORDS
AEP Model
UK Model
Cassette player section
Tape track 4-track 2-channel stereo
Wow and flutter 0.08 % (WRMS)
Frequency response 30 - 20,000 Hz
Signal-to- noise ratio
Cassette type Dolby B NR Dolby NR off
TYPE TI, IV 67 dB 61 dB
TYPE! 64 dB 58 dB
Tuner section
FM
Tuning range 87.5 ~ 108.0 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 dBf
Selectivity 75 GB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
70 dB (mono)
Harmonic distortion at 1 kHz
0.5 % (stereo), 0.3 %
(mono)
Separation 35 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Capture ratio 2 dB
MW /LW (SW, for the model for German)
Tuning range MW: 531 - 1,602 kHz
LW: 153 - 281 kHz
SW: 5,950 - 6,205 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity MW: 30 pV
LW: 50uV
SW: 50 nV
Model Name Using Similar Mechanism [XR-C410/C412
Tape Transport Mechanism Type MG-50B-39
SPECIFICATIONS
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4-8 ohms
Maximum.power output 22 W x 4 (at 4 ohms)
General
Output lead Power antenna relay
control lead
Power amplifier control
lead
Tone controls Bass +8 dB at 100 Hz
Treble +8 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 186 x 57 x 170 mm
(w/h/d) not incl.
projecting parts and
controls
Mounting dimension Approx. 182 x 53 x 153 mm
(w/h/d) not incl.
projecting parts and
controls
Mass Approx. 1.3 kg
Supplied accessories Power connecting cord (1)
Mounting hardware (1 set)
Front panel case (1)
Design and specifications are subject to change without
notice.
FM/MW/LW CASSETTE CAR STEREO
AEP, UK Model
FM/MW/SW CASSETTE CAR STEREO
German Model
SONY.
