Uniden R9w Quick Start Manual

UNIDEN
QUICK START GUIDE
This Quick Start Guide provides basic information on setting up the R9w. Refer to
the R9w Owner's Manual for details. This manual is located on the USB drive
included in the packaging.
ABOUT R9w
R9w is an advanced professionally-installed laser radar detector with laser
interruption capabilities. Front and rear radar detectors and laser transponders
provide outstanding detecting range while its sleek design blends with your vehicle's
interior. An alert LED lets you know if signals are coming from the front (red) or rear
(blue). If no signals are detected, the LED is green. If LED Initial Setting is ON, the LED
is green if no sigals are received. If LED Initial Setting is OFF, then the LED is also off if
no sigals are detected.

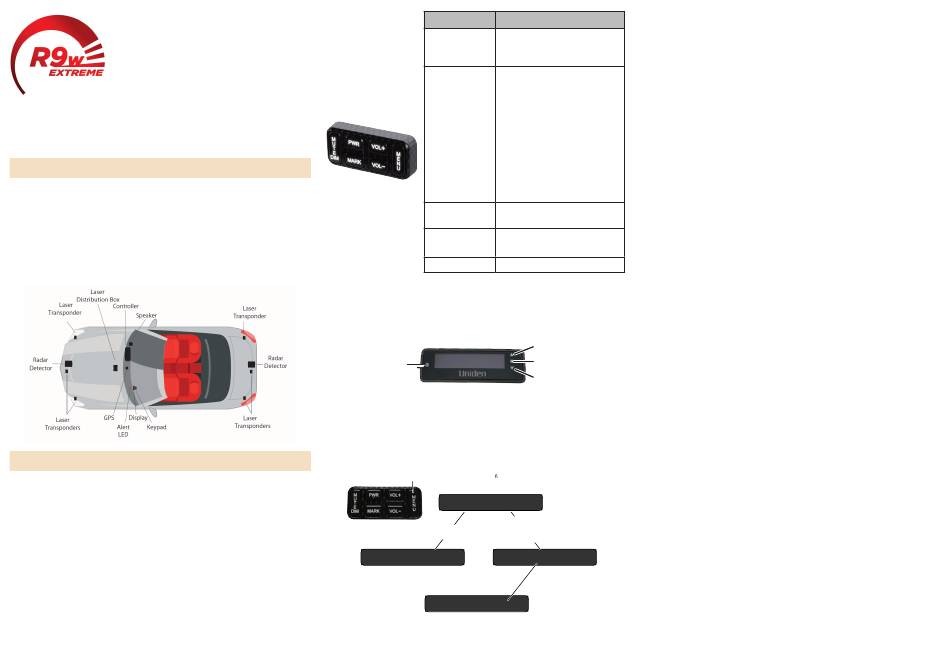

This illustration shows R9w's basic element placement (your installer will place these
elements according to your vehicle's specific layout).
R9w SETUP
After professional installers have set up your R9w system's hardware, it's time to
configure the firmware through the Menu system. Use the R9w keypad and display to
access the Menu system.
KEYPAD
The keypad provides menu selection as well as adjusts the volume, alarms, user
marks, and backlight.
R9w w
DISPLAY UNIT
The separate display unit works in conjunction with the keypad and is the visual
display for alarms, alerts, menu selections, etc. It also displays signal frequency, signal
strength, and from which direction the signals are coming.
ACCESSING MENU SYSTEM
Press the
MENU
view options within that menu item. Press
previous) menu item.
This graphic shows the menu path to set Mode, the first menu item.
R9w MENU SETUP
There are 3 main areas you'll want to set up:
KEY PURPOSE
MUTE/DIM Mutes Radar and Laser alarms
under certain conditions.
Controls backlight brightness.
PWR Press to turn the R9w on; press
and hold to turn the R9w off.
With the button, users can
PWR
set the Laser Transponder setting
as follows:
Press the button to disable
PWR
Laser Transponder (Receive
Mode) while R9w is operating.
Press the button again to return
to the user settings (Constant
Mode/Pulse Mode/Receive
Mode).
MARK Sets specific locations to be
recognized in the future.
VOL + / VOL - Raises and lowers volume.
Scrolls through menus.
MENU Scrolls through sub-menus.
Signal Direction
Front
Light
Side
Sensor
Rear
key on the keypad to show the menu on the display. Press again to
or to move to the next (or
VOL + VOL -
Press
MENU key
Display shows the rst menu item,
Operation Mode (Default = Basic).
Basic
To keep your selection as the Operation
Mode option, press VOL+ key. Display
Press MENU key again to cycle
shows the next menu item, Mode
between the Operation Mode options.
(Default = Highway).
Expert Highway
Press VOL+ key to save your selection
for Mode. Displays shows the next
menu item, GPS. (Default = ON)
GPS
x
R9w basics (turn GPS on, set time, set alarms, set alerts, etc.)
x
What band types you want to detect
x
How you want the display to look
R9w Basics Setup
Press , then to scroll through the menu to set up the following menu items:
MENU VOL+
x
Mode (Default = Highway). Lets you select different band sensitivities. (Highway =
Full Sensitivity; City = X, K sensitivity reduced with Ka at full sensitivity; Auto = City
mode is automatically changed to Highway or City depending on the Auto City
Speed setting (10 - 60 mph, Default = 40 mph), driving speed when you set the
City mode to Auto; and Advanced = Adjust sensitivity from 100% to 30% in 10%
increments)
x
GPS (Default = On). Determines your geographic location in relation to
established speed and red-light cameras. When GPS is on, other GPS-related
menus display throughout the menu system.
x
Speed Camera (Default = On). Speed camera icon displays on OLED screen and an
alarm sounds when you are within range of a speed camera.
x
Red Light Camera Alarm (Default = On). Red light camera icon displays on OLED
screen and alarm sounds when you are within range of a red light camera.
x
Voice (Default = On). Turn on voice to sound out menu items, alerts, alarms, etc.
x
Auto Mute (Default = On). Turn on Auto Mute to automatically reduce the alarm
volume to the level set in the Alarm Mute Volume menu (Auto Mute Volume =
0 - 7).
x
GMT. Sets time according to Greenwich Mean Time. Most common time zone
settings for North America are:
̶
GMT-05:00 - Eastern Standard
̶
GMT-06:00 - Central Standard
̶
GMT-07:00 - Mountain Standard
̶
GMT-08:00 - Pacific Standard
̶
GMT-09:00 - Yukon Standard
̶
GMT-10:00 - Alaska-Hawaii Standard
x
DST (Default = Off). Turn Daylight Saving Time on or off.
R9w Band Type Setup
Press , then to scroll through the menu to set up the following menu items:
MENU VOL+
x
Front Radar (Default = On). Turn off to ignore incoming frequencies.
x
Front X Band (Default = Off). Keep off to have the front detector ignore X band
frequencies.
x
Front K Band (Default = On). Turn off to have the front detector ignore K band
frequencies.
x
Front Ka Band (Default = On). Turn off to have the front detector ignore Ka band
frequencies.
x
Rear Radar (Default = On). Turn off to ignore incoming frequencies.
x
Rear X Band (Default = Off). Keep off to have the rear detector ignore X band
frequencies.
x
Rear K Band (Default = On). Turn off to have the rear detector ignore K band
frequencies.
x
Rear Ka Band (Default = On). Turn off to have the rear detector ignore Ka band
frequencies.
x
K Narrow/Wide/Extended (Default = K Wide). K Narrow scans for K band radar
guns used in the US only and reduces false alarms. K Wide scans for normal K
band radar guns operating at 24.050 – 24.250GHz. Extended detects signals
below 24.050 (23.900 – 24.250GHz).
R9w Display Setup
You can set up the OLED displays through the Menu system to show specific types of
information. For example, through MENU/Left Display, you can choose between 5
options for the left side display if GPS is on. This illustration shows those options as
well as icons that display as you approach recognized elements such as a red-light or
speed camera.
