Triton atmgurus Securam 06100-08176 Installation And Operations

Swingbolt electronic lock
Hide thumbs

Advertisement

Quick Links

Download this manual

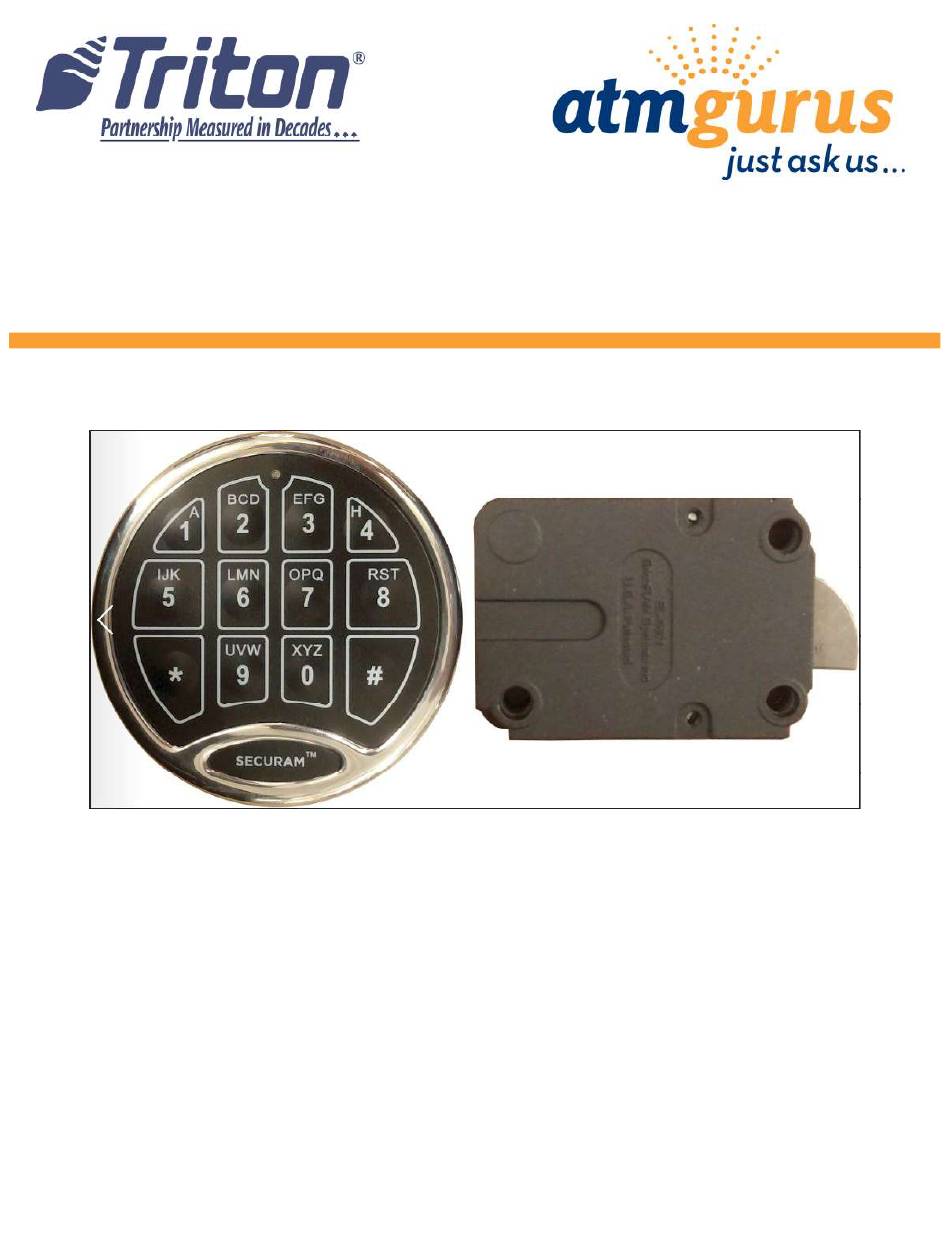

Securam Swingbolt Electronic Lock
Installation and Operations
©2024 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tag-
line, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC.  e third
party trademarks that may be identi ed herein are the trademark of their respective owners. Triton disclaims any
affi liation, connection, or association between its products and services, and those of the respective trademark
owners, or any sponsorship or approval of its products and services by such trademark owners.
Triton Systems ©
TDN 07103-08176
Rev: B

Advertisement

loading
Need help?

Need help?

Do you have a question about the atmgurus Securam 06100-08176 and is the answer not in the manual?

Questions and answers

Related Manuals for Triton atmgurus Securam 06100-08176

Summary of Contents for Triton atmgurus Securam 06100-08176

  • Page 1 ©2024 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tag- line, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC.  e third party trademarks that may be identi ed herein are the trademark of their respective owners. Triton disclaims any affi...

  • Page 2: Contact Information

      is guide covers installation and con guration information for all Business Hours cabinets.   is manual applies to all service personnel involved in installing, con guring, or upgrading Triton ATMs nationwide and abroad.   is guide provides removal and installation steps, with instructions for user setup.
  • Page 3 Spacer | Unthreaded | NO 8 Size | 1/4” Length | 230”OD 8-32” x 5/8” PHIL PAN HD EXT TOOTH STEEL TRIVALENT ZINC 6” TY Wrap Zip Bag : Qty 2 and Qty 3 screws Triton Systems © TDN 07103-08176 Rev: B...
  • Page 4 L R .............. E L: ..................... , ,   ..................   ................... M L.................... /   ..........     ................... C L: ...................... , ,  ......................   ................... Triton Systems © TDN 07103-08176 Rev: B...
  • Page 5 6. Ensure the wires are not pinched when installing the lock dial, Right Image. Slide the lock body over the two screws in Center Image. Push lock dial down until it locks into place. **NOTE** For Traverse units go to step 15. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 6 12. Le Image, ensure the wires lie in the lock body cutout area when installing the lock. Blank White faces out. markings placed against lock body. 13. Right Image, attach the lock body to the door with the three blue-tip screws, GREEN circles. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 7 Plug latch slides in opening above connector, YELLOW arrow. 17. Right Image, ensure the wires lie in the lock body cutout area when installing the lock. Blank White faces out. markings placed against the lock body. Triton Systems © TDN 07103-08176 Rev: B...

  • Page 8: Close The Door

    18. Ensure the at side of the bolt is located EXACTLY as shown below, YELLOW Arrow. 19. Use three blue-tip screws, Le Image and attach the lock body to the door, GREEN circles. Horizontal Vertical DO NOT close the door Triton Systems © TDN 07103-08176 Rev: B...
  • Page 9 • A low battery causes a repeat 8 beeps during unlock operation. Replace battery immediately. • Triton recommends (Duracell or Energizer) battery replaced annually. Programming Warning • Always perform operations with the safe lock system unlocked and the safe door open.
  • Page 10 Lock Codes as shipped from Triton • Admin: 123456 • User-none, user has been deleted How to change Admin or user Code • Open Level-1 door. • Press 000000 • Enter existing code • Enter new code twice • With door still open, test new code several times.
  • Page 11 25. Use a 7/16” socket or drive. Install two bolts and washer removed earlier to attach the lock cover to the door.  ATM    . E  S I L B H P Triton Systems © TDN 07103-08176 Rev: B...
  • Page 12 BLUE arrows. Set aside for later use. 4. Le Image, remove the three screws, BLUE circles. Do not drop the lock body. 5. Right Image, disconnect the Communication cable, arrow, from lock body. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 13 A er pressing the sixth digit will receive either: 2 beeps for a correct code or 3 beeps for the wrong code. Turn the T-handle counterclockwise to open the door. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 14 Le Image. Li the keypad off the shoulder screws, YELLOW arrow. 13. Pull cable, BLUE arrow, out of the door opening, Right Image. Remove the two shoulder screws from the door, YELLOW arrows. E  E L R Triton Systems © TDN 07103-08176 Rev: B...
  • Page 15 6. Go to step 9. 7. Le Image, Insert pick, or small object into the hole of the round disk, arrow. Pry disk off . 8. Right Image, use pliers and pull retaining pin out, YELLOW arrow. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 16 13. Le Image, dial combination. Li and hold the black knob, YELLOW arrow. Open the cabinet. 14. Right Image, remove the two bolts, BLUE arrows, with a (7/16 in) socket. Set aside for later reuse. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 17 17. Le and Center Images, rotate the dial counter-clockwise to unscrew dial. 18. Right Image, remove the two screws, YELLOW arrows, and remove the dial plate 19. Remove the three screws, arrows, and the lock body. E  M L R Triton Systems © TDN 07103-08176 Rev: B...
  • Page 18 4. Le Image, inside of the door, remove two screws on the lock body, YELLOW double arrows. 5. Right Image, DO NOT pull back plate off until white connector, YELLOW circle, disconnected from the circuit board. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 19 10. Remove two screws, YELLOW, GREEN, and BLUE arrows. Remove the backer plate. ARGO 11. Remove the four screws, BLUE arrows. Remove the lock assembly and pull the at cable through the opening. Triton Systems © TDN 07103-08176 Rev: B...
  • Page 20 16. Le Image, hold the front dial assembly and remove the cam screw, YELLOW arrow. Wiggle the gear-cam, GRAY arrow, out of the lock body. 17. Right Image, Remove the dial assembly and sha . Triton Systems © TDN 07103-08176 Rev: B...
  • Page 21 Remove the backer plate. 21. Remove the four screws, BLUE arrows / circles. Remove the lock assembly and pull the at cable through the opening. E  C L R E  B H L R Triton Systems © TDN 07103-08176 Rev: B...
  • Page 22 Triton Systems © TDN 07103-08176 Rev: B...
