WEARABLE PANIC BUTTON
USER MANUAL
1. Specifications
Frequency:
Operating Temperature:
Operating Humidity:
Battery:
Battery Life:
Compatibility:
Supervisory Interval:

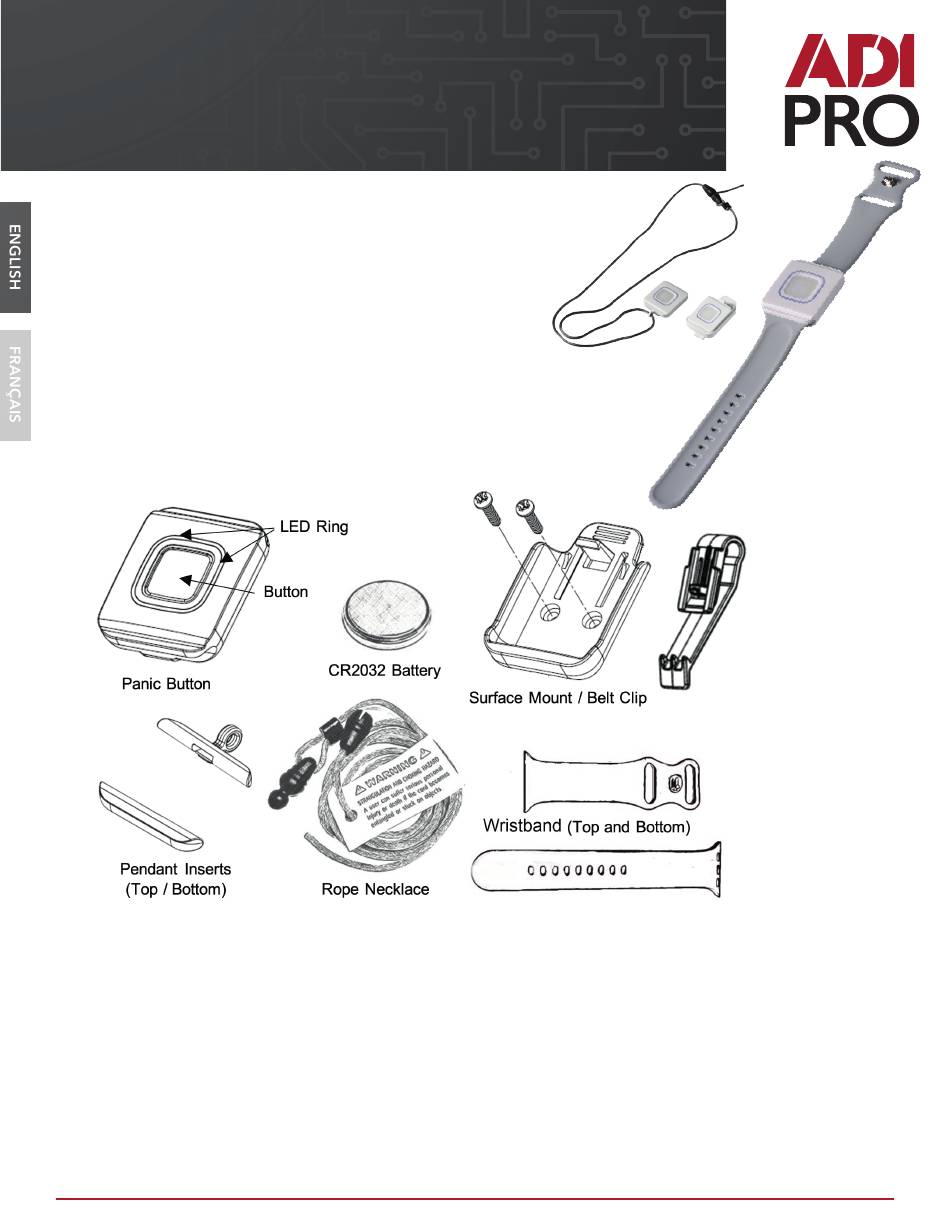

2. Package Contents
1 x Panic Button
1 x Wristband
1 x Belt Clip Adapter
1 x Manual
3. Package Contents
4. Product Configuration
The 0E-PANIC345 can be worn or mounted in four (4) ways:
1.
On a wrist using a compatible wristband (the color of the included wristband may vary).
2.
Around the neck as a pendant using the included pendant inserts and snap-closure, adjustable rope necklace (color may vary).
3.
Mounted to a flat surface with the surface mount bracket and screws.
4.
Worn on a belt with the surface mount bracket plus belt clip.
Note: Users can personalize their Panic Button with Apple Watch® compatible wristbands (38/40/41mm).
ADI PRO TECHNICAL SUPPORT: 1.833.574.9124 | WEBSITE: adiglobal.com/adiexclusivebrands
345MHz
32° to 110°F (0° to 43°C)
0–95% RH non-condensing
One CR2032 Lithium 3VDC
Up to 5 Years
2GIG and Honeywell receivers
Approximately 60 minutes
1 x Rope Necklace
1 x Pendant Inserts (2 pcs set)
1 x Surface Mount Bracket (w/2 screws)
1 x CR2032 battery (included)
0E-PANIC345
© 2024 ADI Global

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0E-PANIC345 and is the answer not in the manual?

Questions and answers

Related Manuals for ADI PRO 0E-PANIC345

Summary of Contents for ADI PRO 0E-PANIC345

  • Page 1 3. Package Contents 4. Product Configuration The 0E-PANIC345 can be worn or mounted in four (4) ways: On a wrist using a compatible wristband (the color of the included wristband may vary). Around the neck as a pendant using the included pendant inserts and snap-closure, adjustable rope necklace (color may vary).

  • Page 2: Double Tap

    5 of 8 or better. 7. Product Operation The 0E-PANIC345 supports up to three (3) different alerts or commands to be triggered through different button presses. The button appears as three sensor zones, each with their own unique serial number (SN).
  • Page 3 KEEP new and used batteries OUT OF REACH of CHILDREN Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. ADI PRO TECHNICAL SUPPORT: 1.833.574.9124 | WEBSITE: adiglobal.com/adiexclusivebrands © 2024 ADI Global...

  • Page 4: Fcc Compliance Statement

    Subject to the terms and conditions of this Limited Warranty, from the date of sale through the period of time for product categories specified in Section 1(b), ADI warrants its ADI PRO products to be free from defects in materials and workmanship under normal use and service, normal wear and tear excepted. Except as required by law, this Limited Warranty is only made to Buyer and may not be transferred to any third party.

  • Page 5: Governing Law

    ADI reserves the right to issue a credit only in lieu of replacement. If any ADI PRO product is found to be in good working order or such product’s inability to function properly is a result of user damage or abuse, the product will be returned to Buyer in the same condition as received and Buyer shall be responsible for any return freight changes.

  • Page 6: Spécifications

    3. Contenu de l’emballage 4. Configuration du produit Le produit 0E-PANIC345 peut être porté ou installé de 4 façons : Au poignet en utilisant un bracelet compatible (la couleur du bracelet peut varier). Autour du cou, à titre de pendentif en utilisant l’accessoire et le collier cordon à longueur ajustable et à fermeture à bouton-pression (inclus, la couleur peut varier).

  • Page 7: Utilisation Du Produit

    5. Association Le bouton d’urgence 0E-PANIC345 prend en charge jusqu’à trois (3) alertes ou commandes différentes, qui peuvent être déclenchées au moyen de différents types d’activation du bouton. Le bouton se présente comme ayant trois zones de capteur, chacune dotée d’un numéro de série unique.
  • Page 8 KEEP new and used batteries OUT OF REACH of CHILDREN Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. ADI PRO TECHNICAL SUPPORT: 1.833.574.9124 | WEBSITE: adiglobal.com/adiexclusivebrands © 2024 ADI Global...

  • Page 9: Garantie Limitée

    à une défaillance des piles de quelque type que ce soit utilisées avec les produits vendus aux termes des présentes. ADI ne garantit que les produits de marque ADI PRO vendus par ADI. Les autres produits portant une marque de tiers sont garantis par le fabricant tiers pendant une période définie par ce dernier, et ADI cède à...
  • Page 10 S’il a été établi que le produit ADI PRO n’est pas défectueux ou que son mauvais fonctionnement résulte d’une utilisation abusive ou de dommages causés par l’utilisateur, le produit sera retourné à l’acheteur dans le même état que celui dans lequel il a été reçu et l’acheteur devra acquitter les frais de transport.
