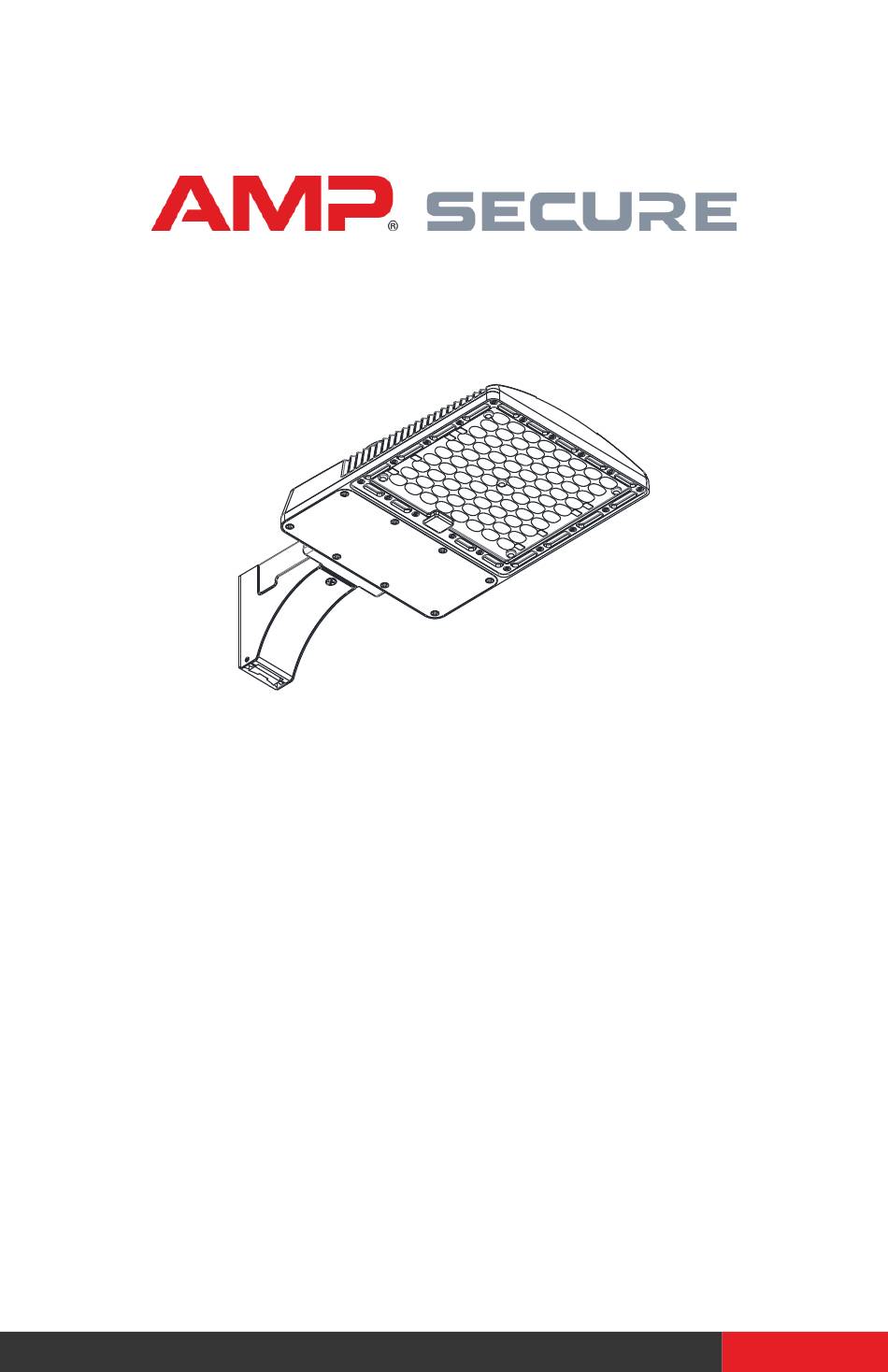

- Page 1 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light ® ITEM: ASA-4301-90S-UNV-S-AM SAVE THESE INSTRUCTIONS - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Fixtures must be wired in accordance with all local codes and the National Electrical Code. Proper grounding is required for safety. -
Page 3: Package Contents
PACKAGE CONTENTS (2) Mounting Screw (1) Luminaire (5) P4 Wire Connectors (1) Photocell (1) Gasket (1) Flat Gasket (1) Backplate PRODUCT DIMENSIONS 7.68” 5” 20.23” 13.93” 10.22” 2.36”... - Page 4 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® REMOVE SCREW ON THE BOTTOM OF THE ARM Access the wiring compartment by removing the screw from the arm cover. Screw Arm Cover REMOVE THE ARM Remove the top (2)
- Page 5 INSTALL THE ARM 5” .39” DIA (2) .79” DIA 3.5” MAX Mount the area light to square or round pole. The backing plate is adjustable and is adjustable to the dimensions on the above drawing. Use the dimensions on the drawing to drill the required hole pattern if the pole is not drilled.
- Page 6 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® PHOTOCELL INSTALLATION Loosen the (2) screws on the receptacle and rotate the photocell receptacle so the arrow points north. Photocell Receptacle Insert the twist lock photocell into the receptacle and rotate until it stops.
- Page 7 INSTALL LUMINAIRE Route the luminaire wires through the hole on the arm. Attach the fixed arm of the luminaire onto the arm and secure with previously removed screws. Hand tighten until snug. Screw Fixed Arm Pole...
- Page 8 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® CONNECT LUMINAIRE WIRES TO SUPPLY WIRES Pole Cover Luminaire Wires Wire Connector Main Supply Wires Feed the supply wires and luminaire wires into the arm wiring compartment. Make the connections as follows:...
- Page 9 CLOSE ARM COVER Screw Arm Cover Carefully insert all wires inside the arm and secure the arm cover with the screw. ACCESS TO SELECTION SWITCHES Using the screwdriver, unscrew the plug from the Plug side of the luminaire.
- Page 10 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® COLOR TEMPERATURE (CCT) & POWER SELECT SWITCHES 5K-4K-3K 40/60/80/90W Color Temperature Selection Switch 5000K- 4000K- 3000K 5K - 4K - 3K 40/60/80/90W Power Selection Switch 40W, 60W, 80W, 90W ACCESS TO SELECTION SWITCHES...
- Page 12 INSTALLATION & MAINTENANCE GUIDE SECURE Area Light - ASA-4301-90S-UNV-S-AM ® 1-813-978-3700 • Mon-Fri 9am-6pm (ET) Specifications and product details subject to change without notice. © Copyright 2024, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
