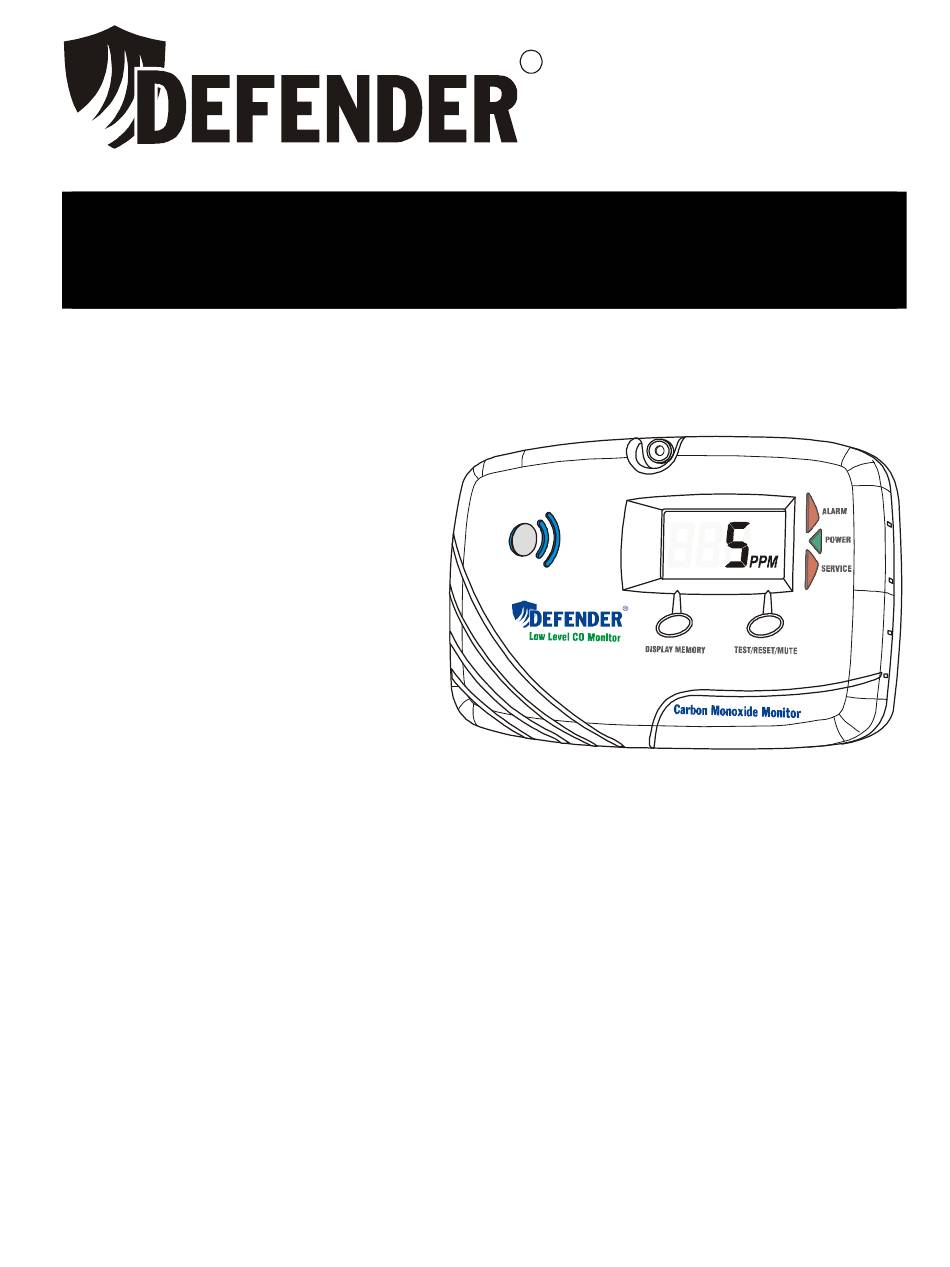

Defender LL6270 Owner's Manual

Low level co monitor
Hide thumbs Also See for LL6270:

Advertisement

Quick Links

Download this manual
Low Level CO Monitor
Owner's Manual
Sealed Lithium Battery Powered
LL6270
Sealed Lithium Battery Powered
Low Level CO Monitor with LCD
Digital Display, Single Station
The UL 2034 standard for residential carbon monoxide (CO) alarms does not
permit listed CO alarms to automatically display or alarm at CO levels below
30 ppm. The Defender LL6270 is designed to provide added protection for
older adults, pregnant women, young children, and persons with medical
conditions who may be more vulnerable to lower CO levels, and is not UL
listed.
When installed in residential applications, this monitor should
supplement, not replace, a UL listed CO alarm.
ATTENTION:
manual for future reference.
Please read all instructions before installation and save this
R
Copyright © 2024 Defender Detectors Inc.
- 1 -
Manual P/N: OM3-6270-90
2024-10-02
