Summary of Contents for HMD Fusion

  • Page 1 HMD Fusion Charging Board Replacement...
  • Page 2 INTRODUCTION guide to replace the charging board in your HMD Fusion phone. this USB-C The charging board includes the port and headphone jack. To replace either of the ports, you must replace the entire board. phone, If you're having issues charging your connecting headphones via the 3.5 mm jack,...
  • Page 3 Step 2 — Remove the SIM card tray Firmly press a SIM eject SIM card tray hole on the left edge of your phone tool into the until the tray ejects. Remove the SIM card tray. Step 3 — Remove the back cover screws mm‑long Use a T3 Torx screwdriver to remove the sixteen 5.0...
  • Page 4 Step 4 During the next four steps, the remaining back cover screws might fall out unexpectedly. To avoid losing screws, you can place a tray or bowl under the phone while you work. Step 5 — Unclip the back cover Flip your phone over so the screen is facing up.
  • Page 5 Step 6 Slide the opening pick along the edge to begin unclipping the back cover. left Step 7 Continue sliding the pick around the perimeter of your phone until the back cover is fully unclipped. The corners can be tricky to unclip and may take some force. If you're having trouble, try prying up with the pick.
  • Page 6 Snap -1 Carefully flip your phone over so the back cover is facing up. edge of your phone, laying the Lift the back cover off the frame flip it over the left cover flat on your work surface. Be very careful not to strain the back cover's delicate cable. During reassembly, place the back cover onto the frame and press around the firmly...
  • Page 7 Snap -1...
  • Page 8 Step 10 — Disconnect the power button Use a spudger to pry up and disconnect the power button press connector. Remove the back cover. Step 11 — Remove the loudspeaker screws Be careful not to puncture or damage the battery your tool during the rest of this with...
  • Page 9 Snap -2 Use your the loudspeaker out of the frame by its metal bracket. fingers to lift Remove the loudspeaker. Step 13 — Disconnect the charging board Slide one arm of a pair of tweezers under the metal neck of the black antenna cable’s ( Refer Page -2 on next Page ) connector head, near the center of the board.
  • Page 10 Snap -2...
  • Page 11 Step 14 Use a spudger to pry up and disconnect the interconnect cable press connector. Step 15 Move the interconnect cable press connector toward the battery to keep it out of the way of the charging board in the next step. You can use tape adhesive (such as painter's tape) to keep the cable out of with light...
  • Page 12 Use tweezers, or your fingers, to move the two antenna cables out of their slots near top edge of the charging board. Step 17 — Remove the charging board screw mm‑long Use a T3 Torx screwdriver to remove the 3.3 screw securing the charging board.

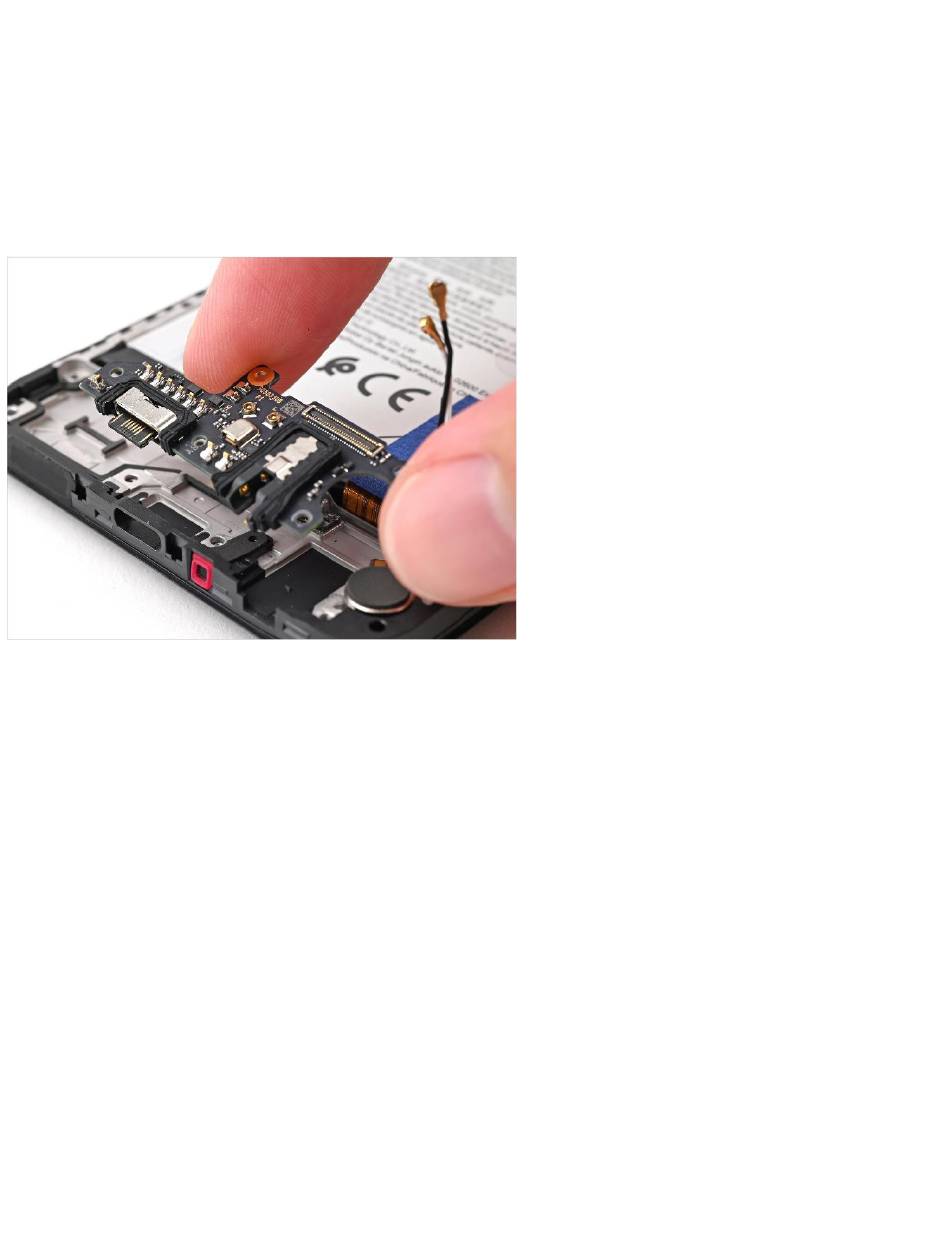

  • Page 13 The top edge of the charging board is adhered to the frame. Insert the flat end of a spudger under the top left edge of the charging board, next to antenna cable connectors. Slide the spudger under the charging board to separate the adhesive. Step 19 Lift the charging board out of the frame and remove it.
