- Page 1 Eagle Onboard air-data measuring system for R/C aircraft. Manual version: 1.0 RC Electronics support@rc-electronics.eu; www.rc-electronics.eu...
-
Page 2: Table Of Contents
Physical overview ............................4 Using the Eagle 2 module ..........................5 Powering the module ..........................5 Mounting the module ..........................5 Connecting module to Android RC electronics app ..................6 Unit settings: ............................. 7 Unit logbook: ............................. 7 Firmware update ............................8 Revision history ............................. -
Page 3: Introduction
Introduction The “Eagle 2” is one component of RC Electronics model aircraft telemetry system. The unit is designed to measure many parameters of an R/C model aircraft and transmit them to the ground via the primary system telemetry back link. The unit is capable of measuring sink/climb rate (Vario), altitude, acceleration of the plane in all axes, noise level, servo pulse on servo input, GPS data with 18Hz refresh rate and supply voltage. -
Page 4: Physical Overview

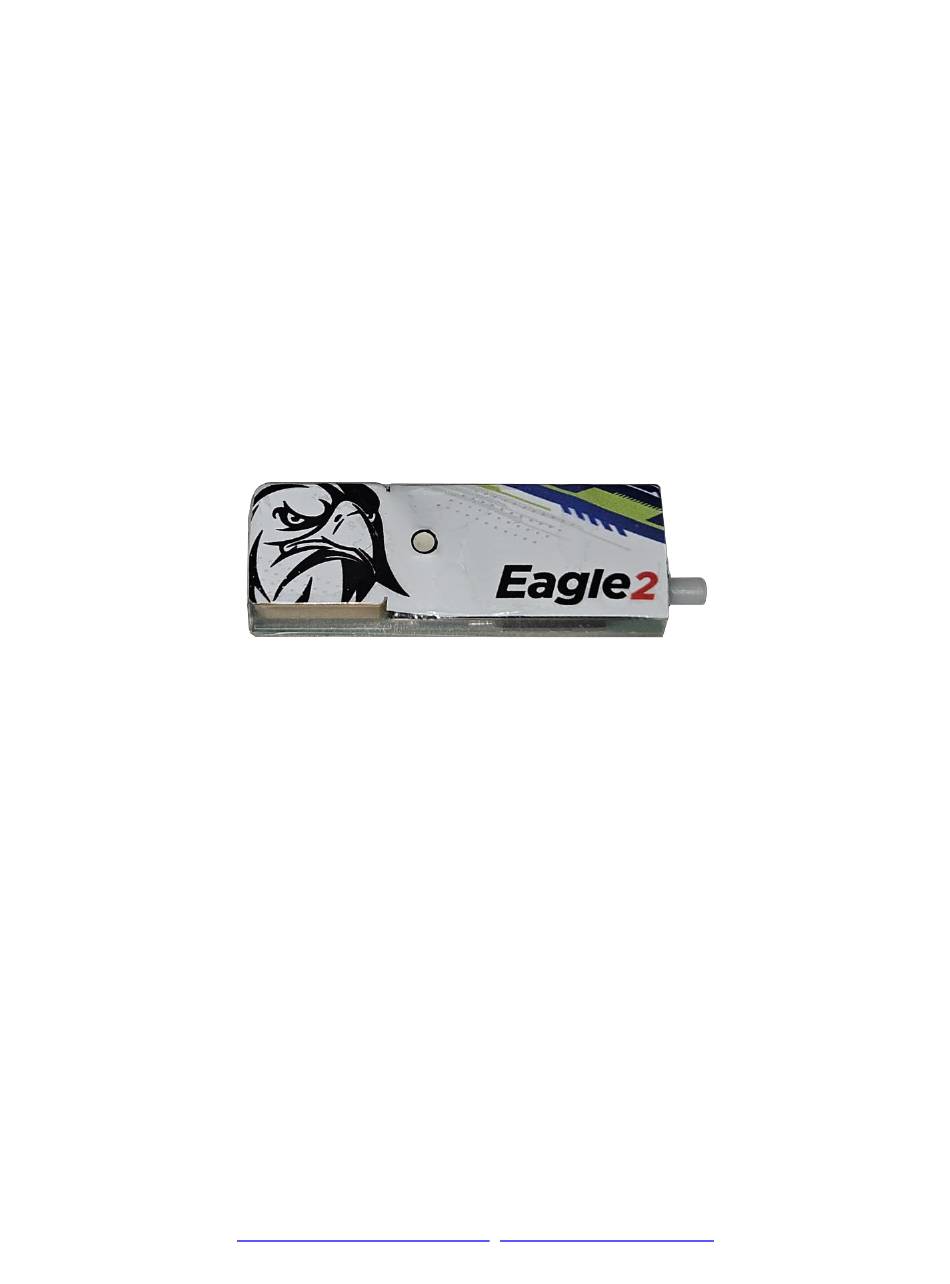

Physical overview Pictures bellow is showing the Eagle 2 unit. It has built in GPS antenna, one pressure port (Pte – total energy compensated pressure from TEK probe) and a multi-color LED to show the status of the unit. JR 3-... -
Page 5: Using The Eagle 2 Module
Be sure to keep the module away from water, fuel and other liquids. Always range check and test the aircraft’s radio systems before flying with the Eagle 2 module installed, to verify that all connections have been made correctly and there is no system interference. -
Page 6: Connecting Module To Android Rc Electronics App
Google Play / Apple store. Unit connects automatically when powered on and app is running! There is no BT pairing needed! Run RC electronics App and power on Eagle 2 unit. How to set up Application, please refer to the application manual! You will be able to see basic info, set the settings and download the IGC flight from device when connected. -
Page 7: Unit Settings
Before upload user must set his www.rcmodelspot.com login data into RC electronics application settings Pressing “CLEAR LOGBOOK” button, will clear the log files from internal memory Eagle - Onboard air-data measuring system for R/C planes. -
Page 8: Firmware Update
Then run the DFU app, select zip file, turn on Eagle 2 and select it under devices and press update. After update unit will reset itself and new version will be in use. In case user tries to upload wrong zip... -
Page 9: Revision History
Revision history 14.09.2024 v1.0 - initial version Eagle - Onboard air-data measuring system for R/C planes. Page 9...
