- Page 1 Eagle Onboard air-data measuring system for R/C aircraft. Manual version: 1.0 RC Electronics support@rc-electronics.eu; www.rc-electronics.eu...
-
Page 2: Table Of Contents
Using the Eagle module ..........................5 Powering the module ..........................5 Mounting the module ..........................5 Connecting module to Android RC electronics app ..................6 Firmware update ............................8 Revision history ............................10 Eagle - Onboard air-data measuring system for R/C planes. Page 2... -
Page 3: Introduction
Introduction The “Eagle” is one component of RC Electronics model aircraft telemetry system. The unit is designed to measure many parameters of an R/C model aircraft and transmit them to the ground via the primary system telemetry back link. The unit is capable of measuring sink/climb rate (Vario), altitude, acceleration of the plane in all axes, noise level, servo pulse on servo input, GPS data with 18Hz refresh rate and supply voltage. -
Page 4: Physical Overview

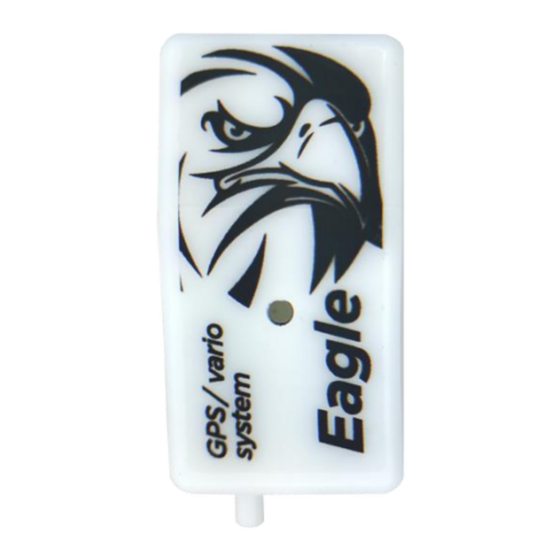

Physical overview Pictures bellow are showing the Eagle unit. It has build in GPS antenna, one pressure port (Pte – total energy compensated pressure from TEK probe) and a multi-color LED to show the status of the unit. It also has 3 connectors. The micro USB is used for future updates, settings and flight log download. The 4 pin connector is prepared for future use (extended bus). -
Page 5: Using The Eagle Module
The Eagle module can be mounted using double-sided tape, cable ties or Velcro. Velcro is recommended, so that the module can be easily removed. Mount Eagle under no carbon surface as it has build in GPS antenna. If there is any carbon or metal part above it, GPS reception will be compromised. -
Page 6: Connecting Module To Android Rc Electronics App
Connecting module to Android RC electronics app Connect the unit to any Android device where RC electronics app was installed from Google Play using a USB cable which has OTG mode supported on Android device side. Such cables (micro USB or USB-C can be purchased from www.rc-electroncis.eu web-shop) - Page 7 Servo trigger in % for arming the task for GPS triangle flying. When such level of servo pulse is detected, additional record is stored in IGC file party telemetry: Select which 3 party telemetry protocol will be used on Servo connector. Eagle - Onboard air-data measuring system for R/C planes. Page 7...
-
Page 8: Firmware Update
Connect the unit to any Android device where RC electronics app was installed from Google Play using a USB cable which has OTG mode supported on Android device side. Such cables (micro USB or USB-C can be purchased from www.rc-electroncis.eu... - Page 9 Click “UPDATE” button Confirm USB connect Wait …. Confirm again after update New version is installed Eagle - Onboard air-data measuring system for R/C planes. Page 9...
-
Page 10: Revision History
Revision history 29.03.2023 v1.0 - initial version Eagle - Onboard air-data measuring system for R/C planes. Page 10...
