Summary of Contents for Inovance ES510-PG-CT1

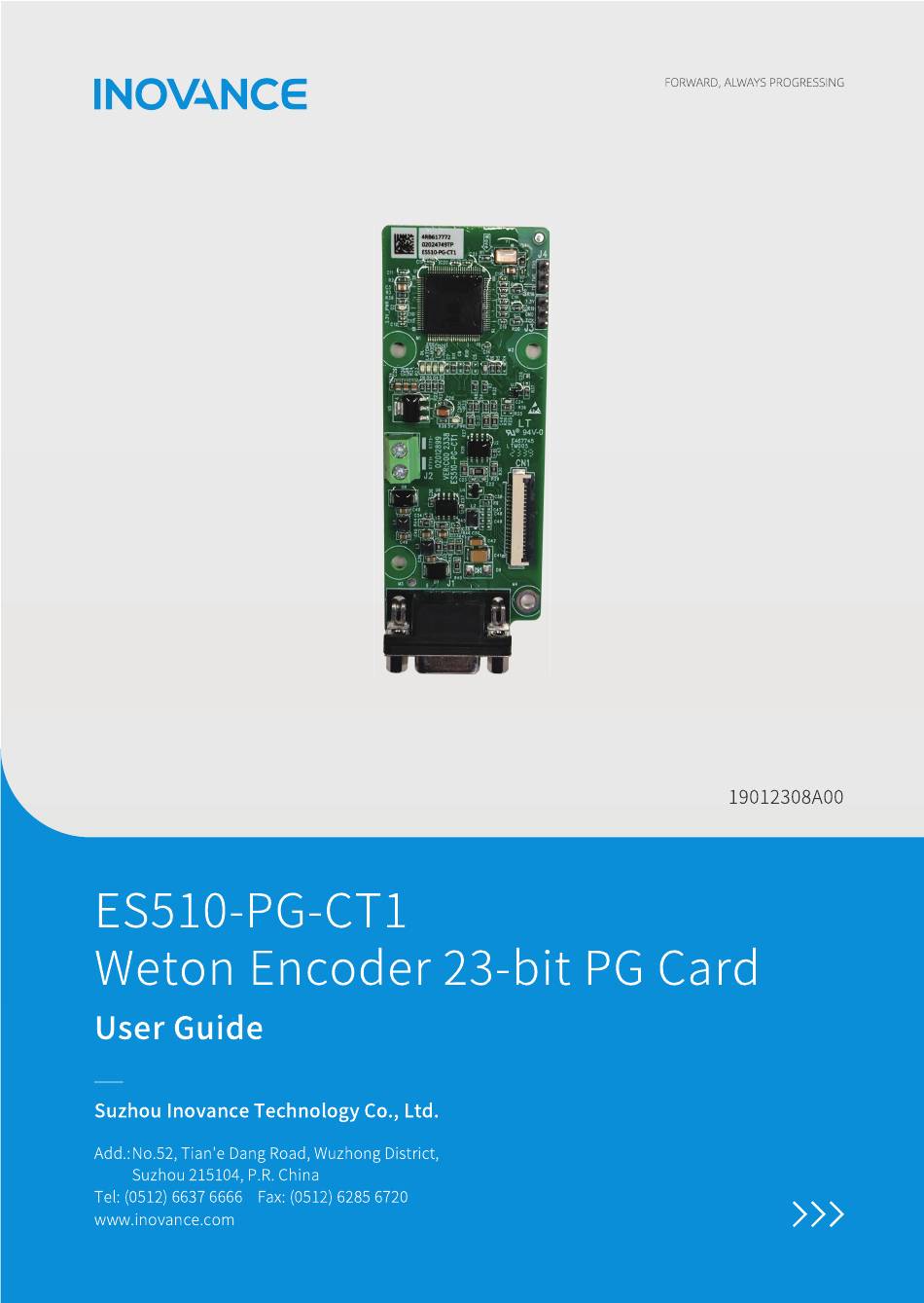

- Page 1 *19012308A00*...
-
Page 2: Table Of Contents
T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Preface ............. 2 1 Product Information . -
Page 3: Preface
, go to "Support" > "Download", search by keyword, and ● then download the PDF file. Scan the QR code below to install the Inovance app, and search for the following ● AC drives in the app to obtain this guide. -
Page 4: Warranty
■ Warranty For faults and damage incurred during normal use in the warranty period, Inovance provides free repair service. (For details of the warranty period, see the purchase order.) A maintenance fee will be charged out of the warranty period. -
Page 5: Product Information
The ES510‑PG‑CT1 card is an absolute encoder signal acquisition card based on ● RS485 bus communication. It is applicable to Inovance A3 series motors with 23‑ bit encoders. The ES510‑PG‑CT1 card is designed to work with Weton 23‑bit encoders using a ●... -
Page 6: Applicable Ac Drives
Figure 1‑1 ES510‑PG‑CT1 card appearance Applicable AC Drives Applicable AC Drive Card Model Order No. MD480‑PLUS MD500‑PLUS MD510 ES510‑PG‑CT1 01320007 MD520 IS580 ES510 ES590 ‑ ‑... -
Page 7: Technical Specifications
Technical Specifications Technical Specifications Item 5 V encoder power supply 5 V/300 mA Encoder resolution 23‑bit Encoder data refresh rate 16 kHz RS485 communication speed Max. 4 Mbps Use a shielded twisted pair (STP) cable as the encoder cable. Determine the wire gauge based on the distance between the encoder and the AC drive. - Page 8 Applicable Motor Aviation Plug Type Cable Code Model Series ESMG1/2 and MEG26/ Straight 1504A294 S58‑P10‑25.0 ESMG1/2 and MEG26/ Straight 1504AW65 S65‑P10‑5.0 ESMG1/2 and MEG26/ Straight 1504AW66 S65‑P10‑10.0 ESMG1/2 and MEG26/ 1504AZ44 ES510‑P10‑6.0 Bent ESMG1/2 and MEG26/ 1504BB72 ES510‑P10‑8.0 Bent Straight MEG20/23 1504B711 ES680‑P10‑3.0...
-
Page 9: Outline Dimensions
Outline Dimensions Figure 1‑2 ES510‑PG‑CT1 card dimensions (unit: mm) ‑ ‑... -
Page 10: Interface Description
Interface Description ■ Interface layout Figure 1‑3 ES510‑PG‑CT1 card interface layout ‑ ‑... -
Page 11: Interface Details
■ Interface details Table 1–1 ES510‑PG‑CT1 card interface function description Function Terminal Terminal Arrangement Mark Pin No. Description Name Serial positive Serial negative PS– Not connected Not connected KTY thermistor KTY– negative Not connected 5 V power supply for the encoder 5 V power supply reference ground KTY thermistor... -
Page 12: Status Indicators
■ Status indicators Table 1–2 ES510‑PG‑CT1 card indicators Indicator Mark Normal Fault Cause Action Communi‑ cation Ground the motor interfer‑ properly and ence or connect the ground Blinking or disconnec‑ Steady OFF I‑NOISE point on the PG steady ON tion (Red) card to the PE between... - Page 13 Indicator Mark Normal Fault Cause Action Communi‑ Slow cation blinking ‑ abnormali‑ Reading Check if the FPC flat ty or motor cable between the disconnec‑ angle Steady OFF PG card and the LATCH tion (Green) Fast control board is between blinking ‑...
-
Page 14: Installation Guide
2 Installation Guide Install the ES510‑PG‑CT1 PG card in the reserved expansion card position on the AC drive with M3x8 screws. The following figure illustrates the installation of the ES510‑ PG‑CT1 PG card on the MD520‑T8 AC drive as an example. Figure 2‑1 ES510‑PG‑CT1 PG card installation ‑... -
Page 15: Electrical Connection
3 Electrical Connection Figure 3‑1 Electrical connection between the AC drive and the PG card ‑ ‑...
