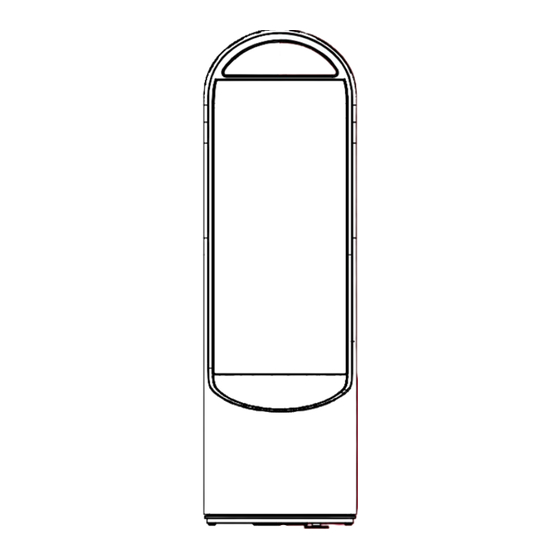

- Page 1 INSTRUCTION MANUAL 2kW DC Ceramic Heater w/ Digital Controls Model: DHCHR20D For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 service agent or a similarly qualified person in order to avoid a hazard. • Keep the supply cord away from the front of the appliance. • Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
- Page 5 Specifications Model no. DHCHR20D Power supply 220-240V ~ 50/60Hz Rated power 2000W Heat settings 2 + ECO Thermostat 5-36°C Timer 0-24hrs Oscillation Weight (net) 1.9kg Dimensions (w x d x h) 151 x 151 x 490mm For greater precision, please always refer to the rating label placed on the product.
- Page 6 Parts Carry handle Air outlet Remote Control panel Air inlet Power cord...
- Page 7 Control Panel LED Display Increase (+) Decrease (-) Timer ECO Mode Oscillation High Heat Fan Mode Low Heat Stand-by Safety Features This appliance incorporates a number of safety devices. In addition to the ‘Important Safety Advice’ section your attention is drawn to the following; Tilt Switch The tilt switch will prevent the heater from working if it is accidentally tipped over on its side.
- Page 8 Operation IMPORTANT - OBJECTS OR CLOTHING MUST NOT BE PLACED ON THIS HEATER. Before using the heater ensure that all warnings and instructions have been read carefully. To begin using the heater simply place the heater on a level surface in an upright position and plug it in to a corresponding power outlet. 1.
- Page 9 Operation Oscillation Function Press the OSCILLATION button to enable oscillation. The 'oscillation' light will illuminate on the control panel, and the heater will begin oscillating. To disable the oscillation function, press the oscillation button again. Fan Mode During operation, press the FAN button to start fan operation without heat. Remote Control The remote control performs the same settings as the control panel on the unit.
- Page 10 Cleaning Over time, dust can accumulate on the heater which can effect performance. It is recommended to clean the unit at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2. Remove any dust build up with a soft brush. 3.
- Page 11 Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,...
- Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
