- Page 1 1080P Video Capture Card User Manual 7324HVC-4K...
- Page 2 When only 50FPS is displaved on the recording software,please make sure lt is connected to the Type-C or USB3.0 port of the computer (not USB2.0) The resolution set on the recording software should be less than or equal to the input resolution. If the frame rate is low, check the connection of the wire to ensure that the wire is normal and tightly connected.
- Page 3 What is the difference between YUY2 and MJPEG? YUY2 is an uncompressed format that offers high-quality video without loss of detai. MuPEG, on the other hand, is acompressed format that reduces file size by discarding some data, resulting in lower video auality.
- Page 4 Firstly, make sure to select " USB 3.0 Audio" for the "audio output" of the video input device, and then select " USB 3.0 Audio" for the "audio input" of the video capture device. Secondly, in OBS, click on "Audio Input Capture" and follow the prompts to set it up.
- Page 5 For HDCP Supported Device, Please Disable HDCP First For Video Capture PS4/PS5: At the PlayStation4/PlayStation5 main menu, navigate to Settings -> System -> HDMl section of the PS4/PS5 interface,and turn off Enable HDCP Switch/Xbox: HDCP is off by default on Switch/Xbox consoles HDCP will activate when media apps such as Netflix or Hulu are started.
-
Page 6: Product Introduction And Features

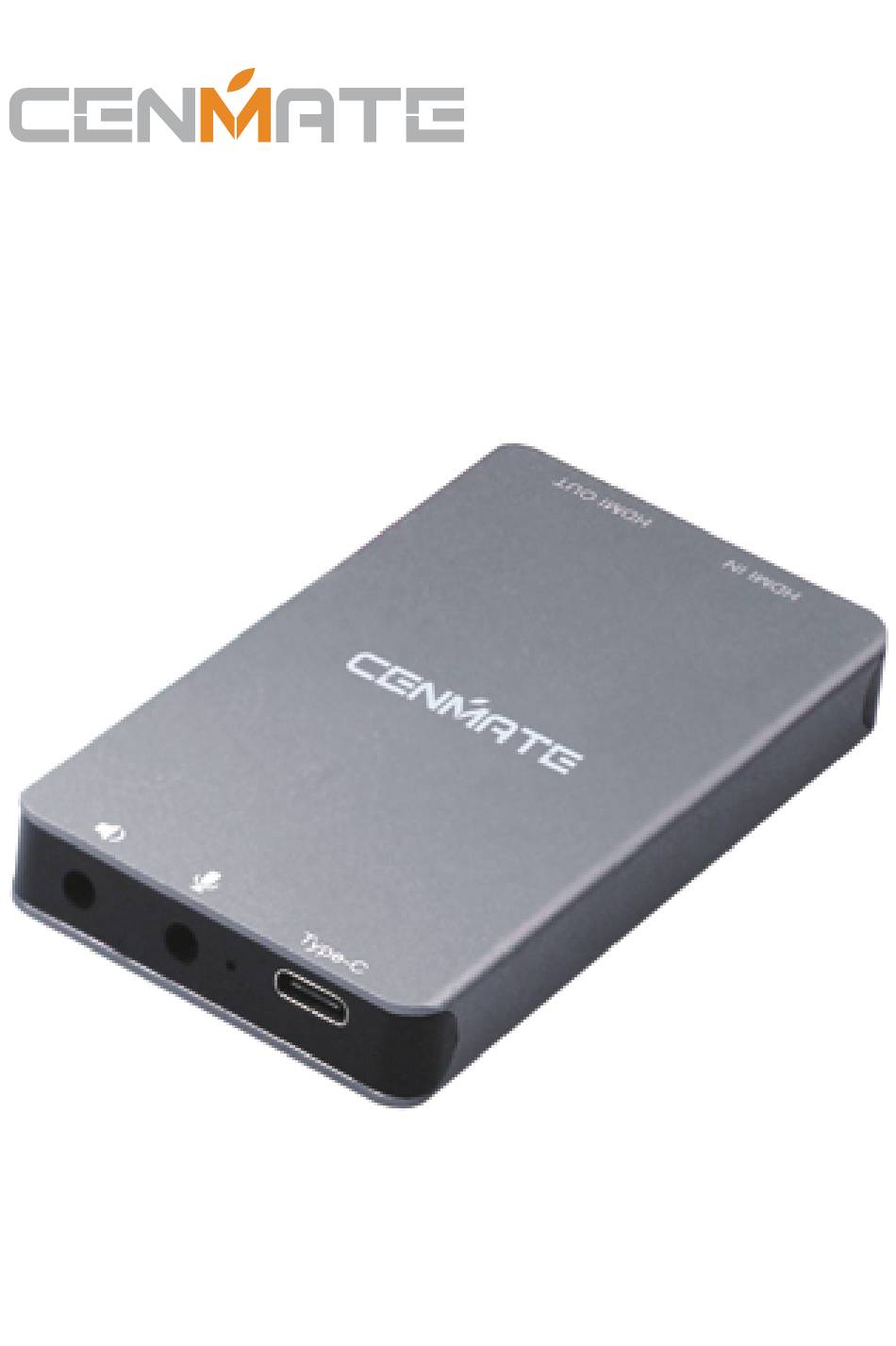

Product Introduction and Features Introduce CENMATE-7324HVC-4K USB3.0 C-type 4K HDMI Capture Board is a capture box product that enables real-time screen monitoring of HDMI video devices that support 4K, as well as real-time capture recording (1080P@60Hz). Capable of recording video overtones from various HDMI source devices... -
Page 7: Specification
Product Components and Specifications Components HD Video Capture Box Body X1 USB3.0 (A/C-C) 3.3FT CableX1 User Manual X1 5 FT HDMI CABLE X1 The rear panel The front panel HDMI IN HDMI OUT AUDIO OUT: AUX port (analog AUDIO speaker HDMIIN: HDMI source instrument connection connection) HDMI OUT: HDMI output display (monitor or... - Page 8 Diagrammatic Sound console Headphones Microphone SWITCH DVD player Camera Laptop Mobile phone Display Connect the computer (USB3.0 port) and the capture box body with a USB cable. Connect the HDMI source instrument and the capture box HDMI IN port with an HDMI cable. Connect the HDMI output machine and the capture box HDMI OUT port with an HDMI cable.
- Page 9 Please download the latest OBS Download OBS:https://obsproject.com/ OBS setup video can be viewed on the product detail page (1) Capture Settings for OBS Software in Windows system. Open the OBS software screen Click on Sources + Then select the "Video Capture Device”...
- Page 10 You can create a new source or select an existing device name, and then click “OK” at the bottom. ⑤ Then open the properties for "video capture device", select "custom" for resolution/FPS Type, "1920×1080" for resolution, "60" for FPS, "YUY2" for video format, "REC.709" for color space ,and "full"...
- Page 11 (2) Suggested parameters for recording video by OBS software (no need to set if don’t record video) Find "Settings" in the lower right corner of the software page, select "video", select "1920×1080" for Base (Canvas) Resolution, and select"1920×1080" for Output (Scaled) Resolution.
- Page 12 1. For the user who uses "Streaming", please click "Output" to set the "8000 Kbps" for Video Bitrate, "Hardware (NVENC)" for Encoder, "128" for Audio Bitrate. 2.For "Recording" users, the recording path & recording quality (affecting the screen quality) can be set, "Indistinguishable Quality, Large File Size" for Recording Quality. "MP4"...
- Page 13 (3) Windows POTPLAYER software setting parameters (with OBS software can only choose one) Open “DaumPotPlayer”, click “PotPlayer” in the upper left corner, select “Open”, and select “Device Settings”. After selection, enter the “property setting”, select “Webcam”, select the corresponding property in the list, and the format can be freely selected according USB 3.0 Audio...
- Page 14 (4) Suggested parameters for recording video by POTPLAYER software (no need to set if no recorded video) Users who need to record can select “PotPlayer”, select “video”, select “video recording”, and “record video”, then select the corresponding properties according...
- Page 15 (5) Sound capture method of capture card in Windows 11 system Right-click the small speaker symbol in the lower right corner of the computer desktop, click “sound properties” Click“More sound sttings”...
- Page 16 Click “Recording”, and then right-click the “USB 3.0 Audio” properties...
- Page 17 Select “Listen”, “listen to this device” by ticking. Click “Advanced” to check whether the “exclusive mode” is ticked, which needs to be ticked.
- Page 18 (6) Capture Settings for OBS Software in the MAC system. Open the OBS software screen Click on Sources + Then select the “Video Capture Device”...
- Page 19 You can create a new source or select an existing device name, and then click OK at the bottom. Then a corresponding attribute parameter table will be created. We need to uncheck "use preset", set the “resolution” to "1920×1080".
- Page 20 (7) Sound capture method of OBS software in MAC system Click on Sources + Then select “Audio Input Capture”...
- Page 21 Then select the name of the device ”USB 3.0 Audio” USB 3.0 Audio...
- Page 22 It's in the top left corner of the desktop, Then click Edit in the upper left corner of OBS software to select “Advanced Audio Properties” Then select ” Monitor Only” in Audio Monitoring ⑥ click “start Recording”...
- Page 23 Tips 1. The main function of the capture card is to enable your device's picture and sound to be output to the computer for use, and to enable the device to output higher resolution and frame rate (based on the highest resolution your device can output and the highest resolution supported by the capture card).
- Page 24 【Quality Assurance】Cenmate provides lifetime technical support.If you have any questions about the product, please don't hesitate to contact us, reply and solve your problem within 24 hours.
