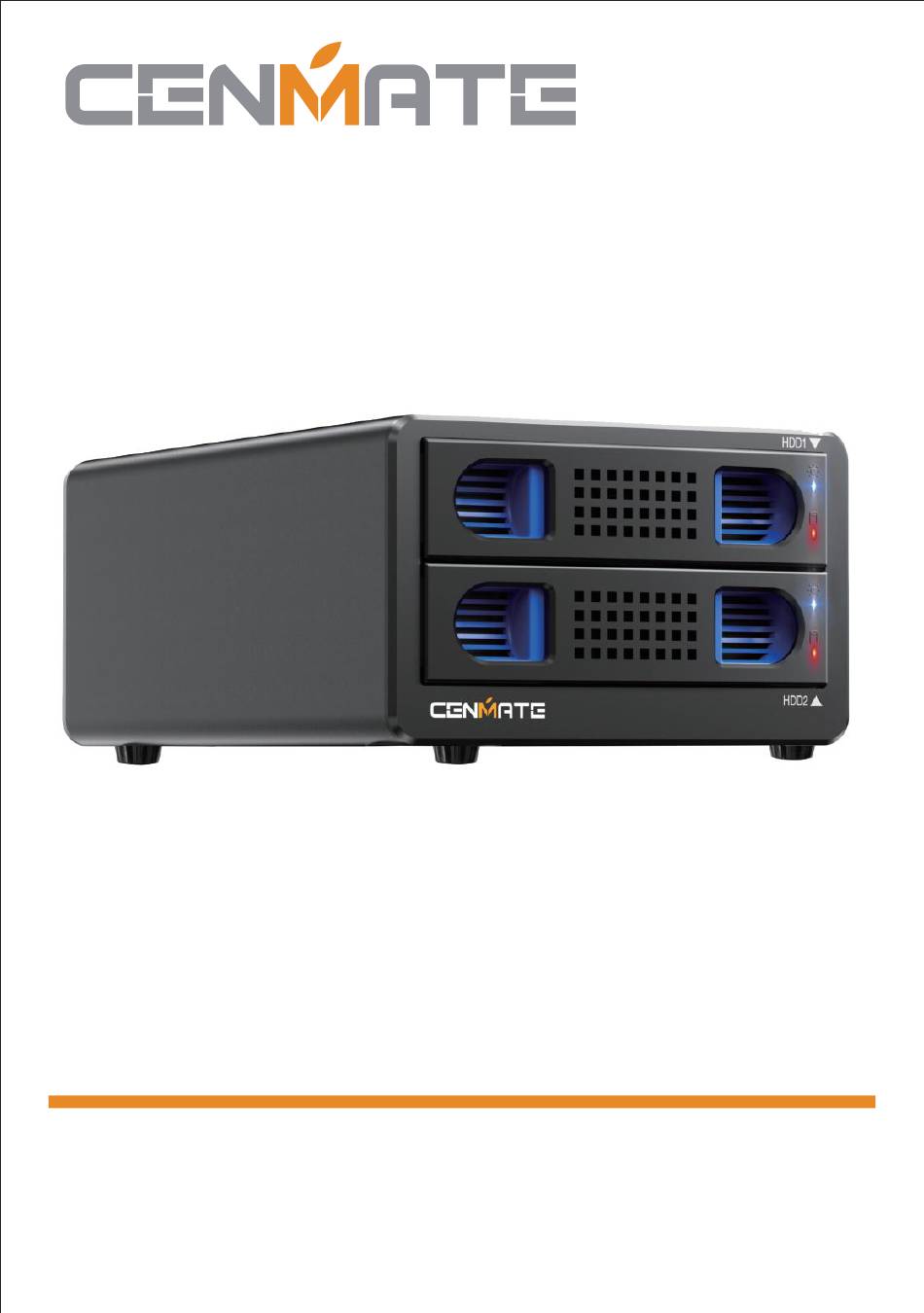

- Page 1 2 Bay External Hard Drive Enclosure for 2.5/3.5" SATA HDD/SSD Model: 802TC-10G PRODUCT INSTRUCTION...
- Page 2 【Quality Assurance】Cenmate provides lifetime technical support.If you have any questions about the product, please don't hesitate to contact us, reply and solve your problem within 24 hours. Technical Support Contact: cenmate23@outlook.com Hard drives making noise during operation, it is not caused by fans.
- Page 3 Qusetion Q1： After connecting new hard drive to the computer, why can't I find the hard drive and display the disc letter? A1: After the new hard drive is connected to the computer, it must be formatted before the system can be recognised and used. Method of operation: First, right-click ‘Computer’, then click ‘Management’, open into the ‘Disk Management’, find the new hard drive, right-click ‘Initialisation ‘Select ‘MBR (hard drive capacity less than or equal to 2TB)’...
- Page 4 CONTENT OS Support 2 Bay 3.5 Inch Hard Drive Storage Windows 2000/ Me/XP/ Vista/ 7/ 8/ 8.1/10 and USB 3.2 A/C Cable above, Mac OS 9.1/10 Mounting screws and screw driver and Linux User Manual 12V Power Supply CONNECTING HDD Pull out the hard drive Install the hard drives from the unit...
- Page 5 For 2.5"SSD/HDD: Use screwdriver open the blue clasp on the side. Connect the USB cable to the computer Type-C Connect the USB 3.2 connector to the unit Type-C USB Host Connect the power connector from the power adapter, and plug the power adapter to the power source Type-C USB Host...
- Page 6 Please Note: For 2.5"SSD/HDD: Use a screwdriver to pry open the clip on the side and then secure them with screws.
-
Page 7: Partition And Format
NOTE: Please follow below information on how to partition and format the drives before use NOTE: Data will be lost when you reset the unit. Partition and Format Note: Formatting is only required for new drives 1. Right click on “My Computer” icon and select “Manage”. When this window appears, select “drive Management"... - Page 8 4. When new disk appears, right click on it and select “New Simple Volume” 5.When the wizard window appears, click on [Next]. 6.Select the partition size we reccomend to use as maximum and click on [Next]. 7.Select the drive letter to assign the hard disk and click on [Next].
- Page 9 9.New partition is complete and your hard disk is ready to use.Click on [Finisk]. Utilizing the USB 3.2 Gen 2 protocol, the 802TC-10G USB memory device delivers data transfer speeds of upto 10 Gbps, twice as fast as its predecessor (802U3-5G)Whether handling...
- Page 10 10Gbps OS Support Windows 2000 or above, MAC OS 10.3 or above, and Linux Power Adapter 12V Power Adapter Enclosure Extruded Aluminum Case 802TC-10G, USB 3.2 Cable, Screws and Screws-Driver, Package Contents Power Adapter and User Manual. Dimension 205x130x80mm Note HDD is not included USB 3.2 to SATA Enclosure...
- Page 11 5. OS Support : Windows 2000 or above, MAC OS 10.3 or above, and Linux It also supports to use daisy-chain with other CENMATE products(2/3/6 bay) by USB-A port, which means the total capacity can be stacked to provide enterprise-class...
-
Page 12: How To Use
How to use 1.Pull out the tray 2.Install the hard drive 3.USB to the computer 4.Plug in the power supply, turn on the power switch 5.The fan rotates and the hard drive light is on indicating that it is normal and you can start using it. Connection hard drive Steady blue Connection indicator (When incompatible with your hard drive, the blue light will show red) (When your hard drive is damaged, it will show a red light) - Page 13 Troubleshooting self-checking steps 1. Check if the device (hard drive) connected to the product is faulty. Connect to the SATA slot on the motherboard via a SATA hard drive to check the status. Verify that the hard drive is partitioned and formatted properly.
- Page 14 Caution Do not connect the 802TC-10G and hard drive (HDD) to a computer when they are not fully assembled. There is arisk of damage and electric shock to the HDD. This device supports SATA(I/II/lII) HDDs! This device is also very teachable to small shocks, so be aware of shocks.
-
Page 15: Firmware Upgrade
If your hard disk is not compatible with this product please scan the QR code to enter our official website to download 802TC-10G upgrade, and then follow the steps on EXCEL to upgrade this product for better compatibility. Need more support, feel free to contact:...
