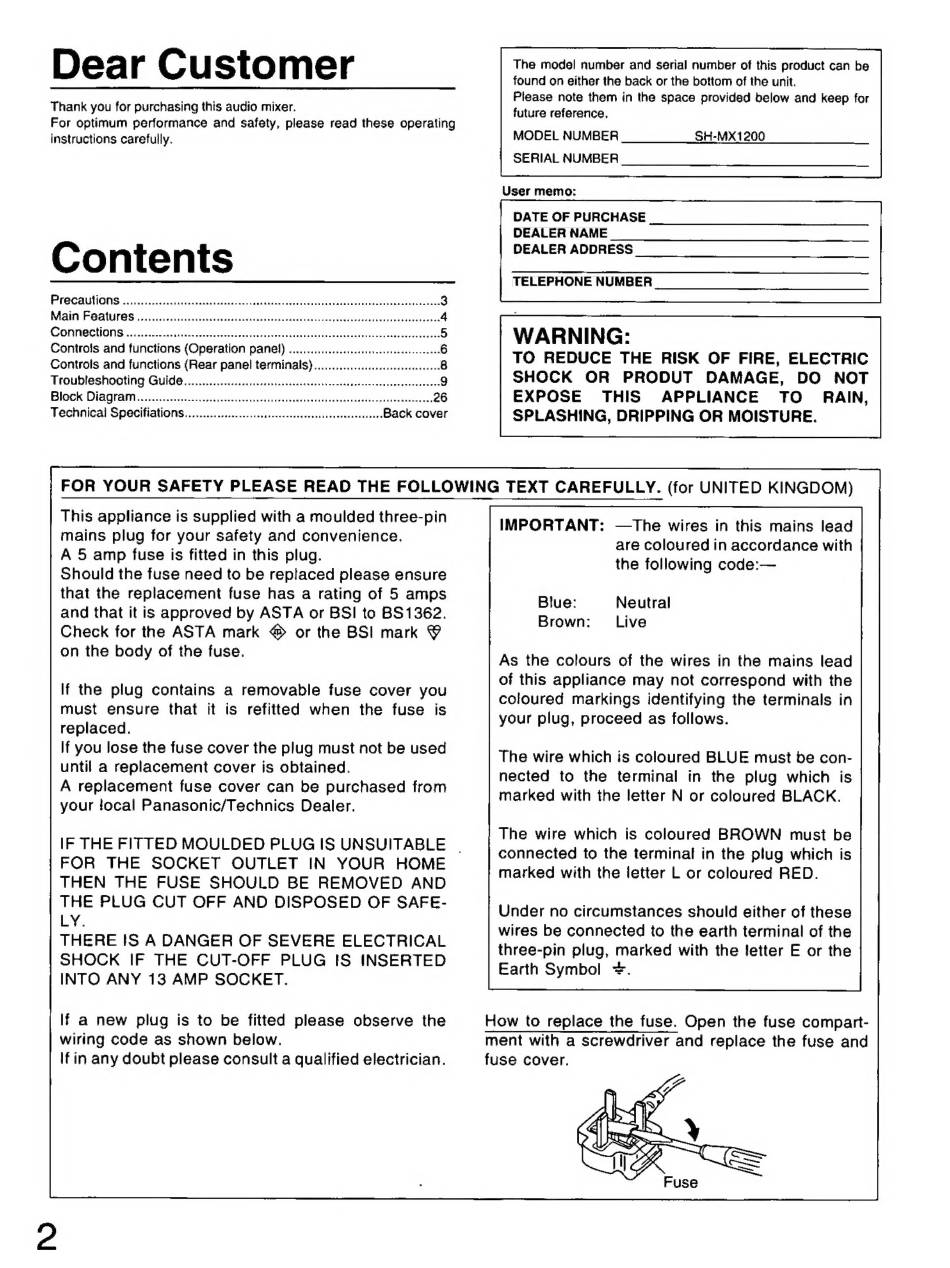

Dear Customer
Thank you for purchasing this audio mixer.
For optimum performance and safety, please read these operating
instructions carefully.
Contents
ae UNE
Main Features E
Controls and functions (Operation panel) ..........................................
Controls and functions (Rear panel terminals)...................................
3
4
Connections ............. ———— E à
6
8
Troubleshooting Guide.............................................. ed
Block Diagrami ЖО ОЛЛО Л Л up bene E
eene BACK cover Technical Specifiations........................
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
SERIAL NUMBER
SH-MX1200
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUT DAMAGE, DO NOT
EXPOSE THIS APPLIANCE TO RAIN,
SPLASHING, DRIPPING OR MOISTURE.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY. (for UNITED KINGDOM)
This appliance is supplied with a moulded three-pin
mains plug for your safety and convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5 amps
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark @ or the BSI mark 9
on the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local Panasonic/Technics Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE .
FOR THE SOCKET OUTLET IN YOUR HOME
THEN THE FUSE SHOULD BE REMOVED AND
THE PLUG CUT OFF AND DISPOSED OF SAFE-
LY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT-OFF PLUG IS INSERTED
INTO ANY 13 AMP SOCKET.
If a new plug is to be fitted please observe the
wiring code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT: —The wires in this mains lead
are coloured in accordance with
the following code:—
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows.
The wire which is coloured BLUE must be con-
nected to the terminal in the plug which is
marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be
connected to the terminal in the plug which is
marked with the letter L or coloured RED.
Under no circumstances should either of these
wires be connected to the earth terminal of the
three-pin plug, marked with the letter E or the
Earth Symbol =.
How to replace the fuse. Open the fuse compart-
ment with a screwdriver and replace the fuse and
fuse cover.
