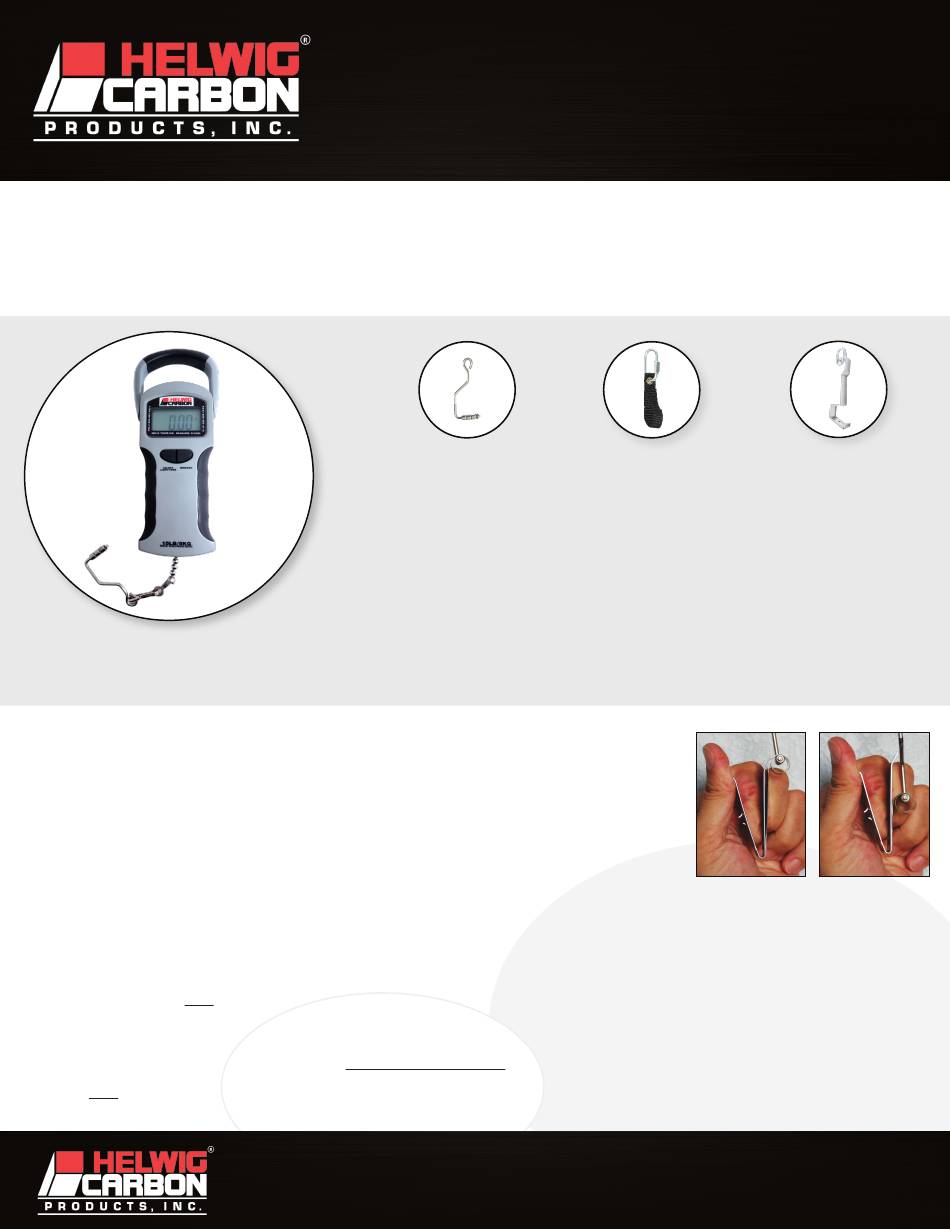

HELWIG CARBON DigiScale Basic Instructions

Improve Reliability & Function With Proper Spring Force
Insufficient and/or Inconsistent Spring Pressure Adversely Affects Motor Performance and Brush Life
Rely on the Helwig DigiScale to measure the effectiveness of your springs. This premium scale offers all the
qualities of a traditional hanging balance with the simplicity, convenience, and accuracy of digital operation.
Now Smaller & Easier to
Use in Tight Locations
Basic Instructions (See Reverse for Detailed Instructions):
1. Press & hold ON button until 8888 flashes on screen. 000 will appear next.
2. When 000 is on the screen, press (do not hold) ON button again. 000 will flash
on screen, indicating scale is zeroed.
3. Connect appropriate attachment to bottom loop of DigiScale, based on type
of spring.
4. Insert roller attachment inside constant force spring or under the red handle
of wear indicator, slide strap around torsion spring finger, or hook turbine-
style attachment under lip of wear indicator.
5. Pull spring back to approximate new brush location (Figure A).
6. SLOWLY let the spring recoil in the direction of brush travel.
Observe spring force and take reading at approximately 1 outer
diameter (OD) of the spring coil (Figure B).
7. Be sure to check ALL springs.
Note: If spot checking & you
find some spring pressures
are too light, be sure to
replace ALL springs!
High-Performance, Hand-Held
DigiScale Measures Spring Force
Features:
Roller attachment
for constant force springs
Large, easy-to-read LCD display with optional backlight
Capacities: (Switchable Units - LB/OZ, LB, KG ) 15lb/8kg
To Calculate Spring Pressure:
Spring Measured Force (lbs.)
Pressure = Brush
(P.S.I.) Thickness (in.) x Width (in.)
8900 West Tower Avenue • Milwaukee, WI 53224-2849
Toll Free Phone: 800.962.4851 • helwigcarbon.com
Email: carboncrew@helwigcarbon.com
Strap attachment
for torsion springs
Precalibrated to factory specs
Memory to store 8 measurements
Auto power off to save on battery life
Extendable handle
Power: 9V alkaline battery (included)
Recommended Range of Spring Pressure
Industrial D.C Applications 4.0 - 6.0 P.S.I. (280-420 g/cm2)
WRIM & Sync. Rings 3.5 - 4.5 P.S.I. (240-310 g/cm2)
High Speed Turbine Rings
Soft Graphite Grades 2.5 - 3.5 P.S.I. (170-240 g/cm2)
Metal Graphite Brushes 4.5 - 5.5 P.S.I. (310-390 g/cm2)
Fractional HP Brushes 4.0 - 7.0 P.S.I. (280-490 g/cm2)
Traction Brushes 5.0 - 8.0 P.S.I. (350-560 g/cm2)
Brush
* For brushes with top and/or bottom angles greater than
25° add an extra 0.5 - 1 P.S.I.
Hook attachment
for turbine style springs
Figure A Figure B
ISO Certified
MADE IN AMERICA
BRO-808
