  • Page 1 BPK – Probe™ Shaft Voltage Detection Device Page 1 of 7...
  • Page 2 Operating Guide BPK-Probe™ Important Safety Information You must understand all the safety statements in this manual prior to operating the BPK-Probe™ The WARNING designation indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.

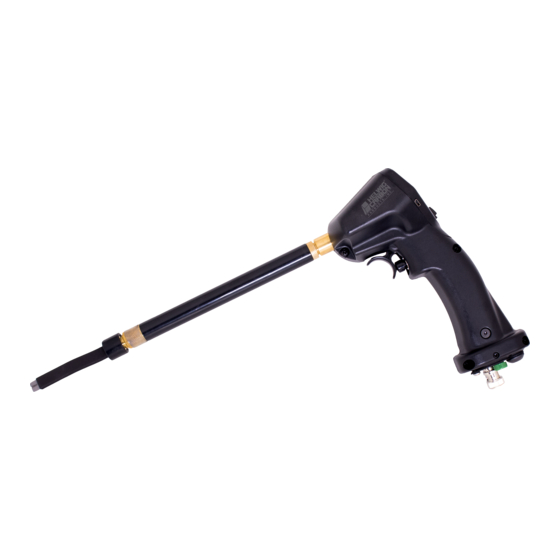

  • Page 3 Purpose of the BPK-Probe™ The BPK-Probe™ is a complete kit including everything you need to determine risk to your motor from damaging bearing discharges. It also demonstrates the effectiveness of a Bearing Protection Kit (BPK) and allows for test data to be stored in on-board memory and/or on an oscilloscope.
  • Page 4 SD card for recording/downloading test results. For a more detailed analysis of the data captured by the BPK-Probe™ it includes a BNC output and cable that are easily connected to the included tablet oscilloscope. To Start a) Verify the motor shaft contact area is clear of debris, oils and contamination.
  • Page 5 Attach the ground wire to the BPK-Probe™ (Figure 5). Locate a clean, paint-free ground source and secure the ground clamp (Figure 6). Figure 5: Attach ground wire to probe. Figure 6: Locate a ground source and secure the ground clamp.
  • Page 6 Figure 8 Figure 9 f) With the BPK-Probe™ sensor tips against the motor shaft, press and hold the trigger switch. The Helwig Carbon logo will show (Figure 10). Next a sampling screen will appear (Figure 11), continue to hold the trigger switch. When sampling is complete the screen will show a real-time test result (Figure 12).
  • Page 7 Video Tutorial The video tutorial is not a substitute for reading the BPK-Probe™ Important Safety Information and Instructions for Use. For a video tutorial of the BPK-Probe™, visit Helwig Carbon Products on YouTube at www.youtube.com/user/Helwigcarbon (Insert Helwig contact information) Page 7 of 7...
