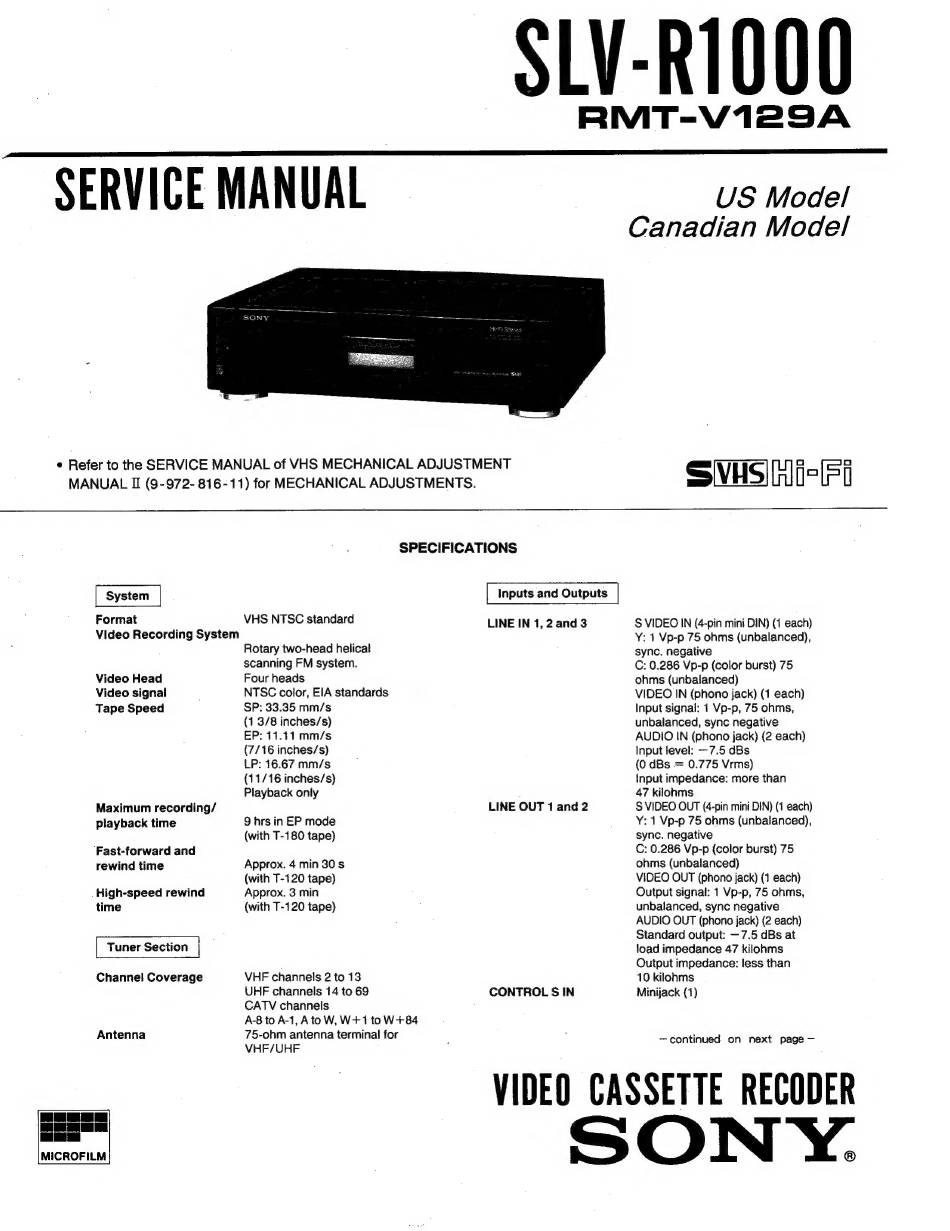

Sony SLV-R1000 Service Manual

SLV-R1000
RMT-V129A
US Model
Canadian Model
¢ Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENT
MANUAL II (9-972- 816-11) for MECHANICAL ADJUSTMENTS.
SVS [lic lPi
SPECIFICATIONS
Format
Video Recording System
Video Head
Video signal
Tape Speed
Maximum recording/
playback time
'Fast-forward and
rewind time
. High-speed rewind
time
Channel Coverage
Antenna
VHS NTSC standard
Rotary two-head helical
scanning FM system.
Four heads
NTSC color, EIA standards
SP: 33.35 mm/s
(1 3/8 inches/s)
EP: 11.11 mm/s
(7/16 inches/s)
LP: 16.67 mm/s
(11/16 inches/s)
Playback only
9 hrs in EP mode
(with T-180 tape)
Approx. 4 min 30s
(with T-120 tape)
Approx. 3 min
(with T-120 tape)
VHF channels 2 to 13
UHF channels 14 to 69
CATV channels
A-8 to A-1, A to W, W+1 to W+84
75-ohm antenna terminal for
VHF/UHF
Inputs and Outputs
LINE IN 1, 2and 3
LINE OUT 1 and 2
CONTROL S IN
S VIDEO IN (4-pin mini DIN) (1 each)
Y: 1 Vp-p 75 ohms (unbalanced),
sync. negative
C: 0.286 Vp-p (color burst) 75
ohms (unbalanced)
VIDEO IN (phono jack) (1 each)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN (phono jack) (2 each)
Input level: —7.5 dBs
(0 dBs = 0.775 Vrms)
Input impedance: more than
47 kilohms
S VIDEO OUT (4-pin mini DIN) (1 each)
Y: 1 Vp-p 75 ohms (unbalanced),
sync. negative
C: 0.286 Vp-p (color burst) 75
ohms (unbalanced)
VIDEO OUT (phono jack) (1 each)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT (phono jack) (2 each)
Standard output: — 7.5 dBs at
load impedance 47 kilohms
Output impedance: less than
10 kilohms
Minijack (1)
— continued on next page —
