Summary of Contents for Endress+Hauser Picomag

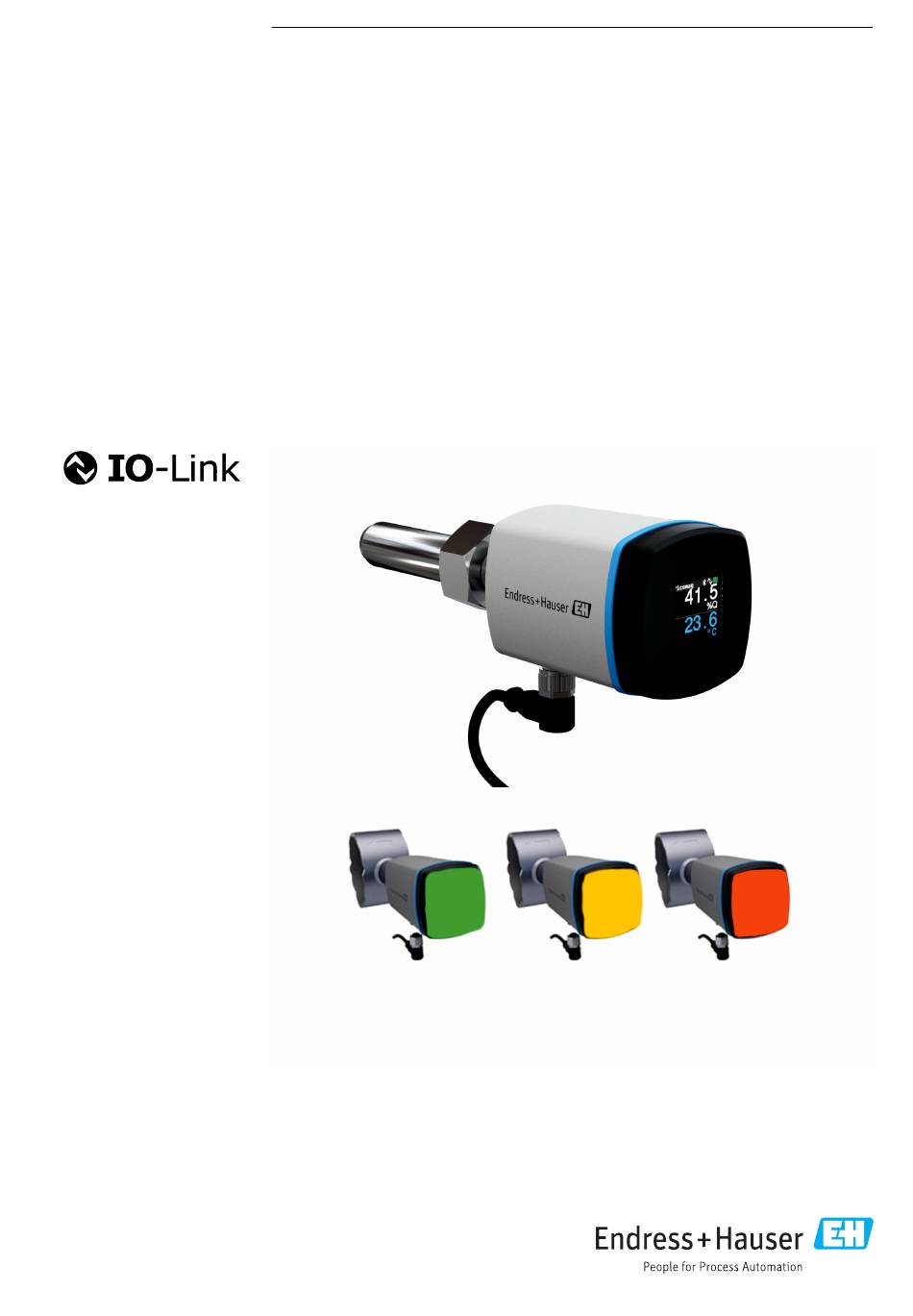

- Page 1 Products Solutions Services BA02388D/06/EN/01.24-00 71681147 2024-11-26 Valid as of version 01.00.zz (Device firmware) Operating Instructions Picomag Insertion IO-Link Electromagnetic flowmeter...
- Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
-
Page 3: Table Of Contents
Picomag Insertion IO-Link Table of contents Table of contents About this document ....5 Electrical connection ....19 Document function . - Page 4 Table of contents Picomag Insertion IO-Link 15.1.2 Brazil ......36 15.1.3 Europe ..... . . 36 15.1.4 India .
-
Page 5: About This Document
Picomag Insertion IO-Link About this document About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Symbols For Certain Types Of Information
® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Apple® Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. -
Page 7: Endress+Hauser
Picomag Insertion IO-Link About this document Android® Android, Google Play and the Google Play logo are trademarks of Google Inc. Endress+Hauser... -
Page 8: Basic Safety Instructions
Basic safety instructions Picomag Insertion IO-Link Basic safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. -
Page 9: Operational Safety
Picomag Insertion IO-Link Basic safety instructions Operational safety Risk of injury! ‣ Operate the device in proper technical condition and fail-safe condition only. ‣ The operator is responsible for interference-free operation of the device. Product safety This measuring device is designed in accordance with good engineering practice to meet state-of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. -
Page 10: Access Via The Smartblue App
Basic safety instructions Picomag Insertion IO-Link 2.7.3 Access via the SmartBlue app Two access levels (user roles) are defined for the device: the Operator user role and the Maintenance user role. The Maintenance user role is the default setting. If a user-specific access code is not defined (in the Set access code parameter), the default setting 0000 continues to apply and the Maintenance user role is automatically enabled. -
Page 11: Incoming Acceptance And Product
(www.endress.com/deviceviewer): all the information about the measuring device is displayed. • Enter the serial number on the device label into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the measuring device with the Endress+Hauser Operations App: all the information about the measuring device is displayed. -
Page 12: Storage And Transport
Storage and transport Picomag Insertion IO-Link Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Store in a dry place. ‣ Do not store outdoors. Storage temperature → 32 Transporting the product Transport the measuring instrument to the measuring point in the original packaging. -
Page 13: Product Description
Device plug Sensor tip with 4 electrodes (measuring electrodes and empty pipe detection electrode) Product functionality Picomag Insertion is a sensor that can measure flow velocity, temperature and conductivity of electrically conductive liquids. Two different measurements can be made. • Flow measurement: Displays the measured value continuously. -
Page 14: Mounting
Mounting Picomag Insertion IO-Link Mounting Mounting location A0055692 Preferably install the sensor in an ascending pipe. Mounting position A0055691 Display Display parallel to piping Install the sensor in such a way that the medium flow will strike the measuring electrodes correctly. -
Page 15: Orientation For Horizontal Pipe
Picomag Insertion IO-Link Mounting Orientation for horizontal pipe 45° A0052006 This orientation is recommended if the device is installed in a horizontal pipe. This ensures that the transmitter is not additionally heated by the flowing medium and the maximum ambient temperature of the transmitter is observed. In addition, this orientation ensures that the measuring electrodes are largely immersed in the flowing medium. -
Page 16: Welding Socket For Pipes Dn 25
Mounting Picomag Insertion IO-Link The measuring instrument is mounted in steel and stainless steel pipes using a welding socket. The welding sockets can be ordered as an accessory → 30. Two different types of welding socket are available, depending on the nominal diameter. -
Page 17: Burn Hazard
Picomag Insertion IO-Link Mounting 1. Insert the sensor into the welding socket taking into account the flow direction, see arrow on transmitter housing. Ensure that the device plug is positioned in the direction of the pipe axis. A0055820 2. Tighten the metal union nut by hand. -
Page 18: Post-Mounting Check
Mounting Picomag Insertion IO-Link Post-mounting check Is the device undamaged (visual inspection)? Does the measuring instrument correspond to the measuring point specifications? For example: • Process temperature • Process pressure • Ambient temperature • Measuring range Is the position of the measuring electrode plane horizontal? ... -
Page 19: Electrical Connection
Picomag Insertion IO-Link Electrical connection Electrical connection Electrical safety In accordance with applicable national regulations. Connecting requirements 7.2.1 Requirements for connecting cable National regulations and standards apply. Connecting cable M12 × 1 A-coded Conductor cross-section At least 0.12 mm (AWG26) - Page 20 Electrical connection Picomag Insertion IO-Link Assignment Color Description Blue Supply voltage - I/O 1 Black Input/output 1, can be configured independently of I/O Switch output configuration version The switching behavior of I/O 1 and I/O 2 can be configured independently of one another.
-
Page 21: Connecting The Device
Picomag Insertion IO-Link Electrical connection Current output configuration version A0046581 6 Current output, active, 4 to 20 mA Plug (measuring device) Socket (customer side) Supply voltage + Supply voltage - The current flows from the output to L-. The maximum load may not exceed 500 Ω. A bigger load distorts the output signal. -
Page 22: Post-Connection Check
Electrical connection Picomag Insertion IO-Link A0052112 Ground cable In the case of non-grounded pipes: The device must be grounded using the ground cable accessory→ 30. Post-connection check Are the device and cable undamaged (visual inspection)? Are the mounted cables strain-relieved? ... -
Page 23: Operation Options
• Access to measured values, device status and diagnostic information The SmartBlue app is available to download free of charge for Android devices (Google Playstore) and iOS devices (iTunes Apple Store): Endress+Hauser SmartBlue Directly to the app with the QR code:... -
Page 24: System Integration
System integration Picomag Insertion IO-Link System integration The measuring device has an IO-Link communication interface. The IO-Link interface allows direct access to process and diagnostics data and enables the user to configure the measuring device on the fly. Properties: • IO-Link Specification: Version 1.1 •... -
Page 25: Commissioning
Picomag Insertion IO-Link Commissioning Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-installation" check→ 18 • Checklist for "Post-connection" check→ 22 10.2... -
Page 26: Operation
Operation Picomag Insertion IO-Link Operation 11.1 Offline quick view of configuration If you tap on the side of the housing (e.g. on the arrow indicating the flow direction) with your fist, the device shows an overview of the preset parameters. -
Page 27: Diagnostics And Troubleshooting
Picomag Insertion IO-Link Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Remedial action Local display dark and no output Supply voltage does not match the Apply the correct supply voltage signals voltage specified on the nameplate. -
Page 28: Diagnostic Information On Local Display
Diagnostics and troubleshooting Picomag Insertion IO-Link 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Diagnostic message Alarm... -
Page 29: Overview Of Diagnostic Events
Picomag Insertion IO-Link Diagnostics and troubleshooting 12.3 Overview of diagnostic events Diagnostic Status signal [ex- Event text Cause Remedial measures event factory] Coil. circ. fail. Coil/frequency failure Replace the measuring Coil current PWM instrument. outside tolerance range Temp. circ. Temperature sensor Replace the measuring fail. -
Page 30: Accessories
Various accessories are available for the device, and can be ordered with the device or at a later stage from Endress+Hauser. An up-to-date overview of accessories is available from your local Endress+Hauser sales organization or on the product page of the Endress +Hauser website: www.endress.com. -
Page 31: Technical Data
Picomag Insertion IO-Link Technical data Technical data 14.1 Input Direct measured variables • Flow velocity at the sensor tip • Temperature • Conductivity Calculated measured variable Volume Measuring range 0.05 to 10 m/s Flow velocity measurement Measuring range –10 to +85 °C (+14 to +185 °F) -
Page 32: Mounting
Technical data Picomag Insertion IO-Link Maximum measurement error, current output Additional error ±20 µA Repeatability ±10 µA Response time T90 Typically 200 ms The response time T90 is the time a measuring system needs to display 90% of the change of the measured value. -
Page 33: Mechanical Construction
Picomag Insertion IO-Link Technical data 14.8 Mechanical construction Dimensions A0055689 Dimensions in SI units [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] M12 × 1 AF 0 Dimensions in US units [in] [in] [in] [in] [in] [in] [in] [in] [in] M12 ×... -
Page 34: Digital Communication
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments). -
Page 35: 14.11 Documentation
Picomag Insertion IO-Link Technical data designated standards. By selecting the order option for UKCA marking, Endress+Hauser confirms a successful evaluation and testing of the device by affixing the UKCA mark. Contact address Endress+Hauser UK: Endress+Hauser Ltd. Floats Road Manchester M23 9NF United Kingdom www.uk.endress.com... -
Page 36: Appendix
Appendix Picomag Insertion IO-Link Appendix 15.1 Radio approvals 15.1.1 Argentina CNC ID: C-22455 15.1.2 Brazil ADENDO AO MANUAL Modelo: Picomag 366 8 -1 -07311 A0037714 Para maiores informações, consulte o site da ANATEL: www.gov.br/anatel/pt-br Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. -
Page 37: Indonesia
CAN ICES-003(A) / NMB-003(A) Changes or modifications made to this equipment not expressly approved by Endress+Hauser Flowtec AG may void the user' s authorization to operate this equipment. Français Le présent appareil est conforme aux CNR d' i ndustrie Canada applicables aux appareils radio exempts de licence. -
Page 38: Mexico
R-C-EH7-Picomag 상호 : 한국엔드레스하우저 주식회사 기자재명칭(모델명): 특정소출력 무선기기(무선데이터통신시스템용무선기기) / Picomag 제조국 및 제조국가 : Endress+Hauser Flowtec AG / 프랑스 제조년월 : 제조년월로 표기 *사용자안내문 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환 경에서 사용하는 경우 전파간섭의 우려가 있습니다. -
Page 39: 15.1.12 United Arab Emirates
Picomag Insertion IO-Link Appendix A0041612 15.1.12 United Arab Emirates TRA Registered ER68711/19 15.1.13 Other countries Other national approvals are available on request. Endress+Hauser... -
Page 40: Io-Link Process Data
Appendix Picomag Insertion IO-Link 15.2 IO-Link process data 15.2.1 Data structure 95… 87… 79… 71… 63… 55… 47… 39… 31… 23… 15… 7…0 numb … … … … … … …96 Data Volume flow in l/s Conductivity in µS/cm Totalizer in l... -
Page 41: Io-Link Isdu Parameter List
Picomag Insertion IO-Link Appendix 15.3 IO-Link ISDU parameter list The individual parts of a parameter description are described in the following section: Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) Identification Device tag 0x0018 32 (max.) string... - Page 42 Appendix Picomag Insertion IO-Link Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) Totalizer Reset 0x016A uint cancel=0 cancel reset=1 System Units Unit Volumeflow 0x0226 uint l/s=0 l/min l/h=5 fl. oz/min=4 m³/h=1 l/min=2...
- Page 43 Picomag Insertion IO-Link Appendix Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) Output 1 Operating Mode 0x01F4 uint P-Out=0 IO-Link IO-Link is set if connected to a I-Out=1 master S-In=2 S-Out=3 IO-Link=4...
- Page 44 Appendix Picomag Insertion IO-Link Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) Pulse output P-Out Pulse Value 0x03E8 1000 float 0.5/1.0/2.0/10.0 10¯⁹ Unit selection list from Unit 9.9·10⁹ Volume Switch output S-Out 1...
- Page 45 Picomag Insertion IO-Link Appendix Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) T-End-Value 0x02C4 float +70 °C for temperature Unit selection list from Unit Temperature s-Start-Value 0x02C1 float 0 µS/cm for conductivity...
- Page 46 Appendix Picomag Insertion IO-Link Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) Switch output S-Out 2 Switch Polarity 0x035D uint PNP=0 NPN=1 Switch Function 0x0352 uint alarm=0 alarm off=1 on=2 lim.vol.flow=3 lim.temp.=4 lim.vol.=5,...
- Page 47 Picomag Insertion IO-Link Appendix Name ISDU ISDU Size Data type Access Value range Factory setting Range limits (hex) (dec) (Byte) s-End-Value 0x02F4 float 1000 µS/cm for temperature from Conductivity Display Display Layout 0x01C3 uint QV=0 QT=1 Qs=3 VT=2, Vs=4 Ts=5...
-
Page 48: Index
Index Picomag Insertion IO-Link Index About this document ......5 Magnetism ....... . 32 Accessories . - Page 49 Picomag Insertion IO-Link Index Output ....... . . 31 Performance characteristics ....31 Power supply .
- Page 52 *71681147* 71681147 www.addresses.endress.com...
