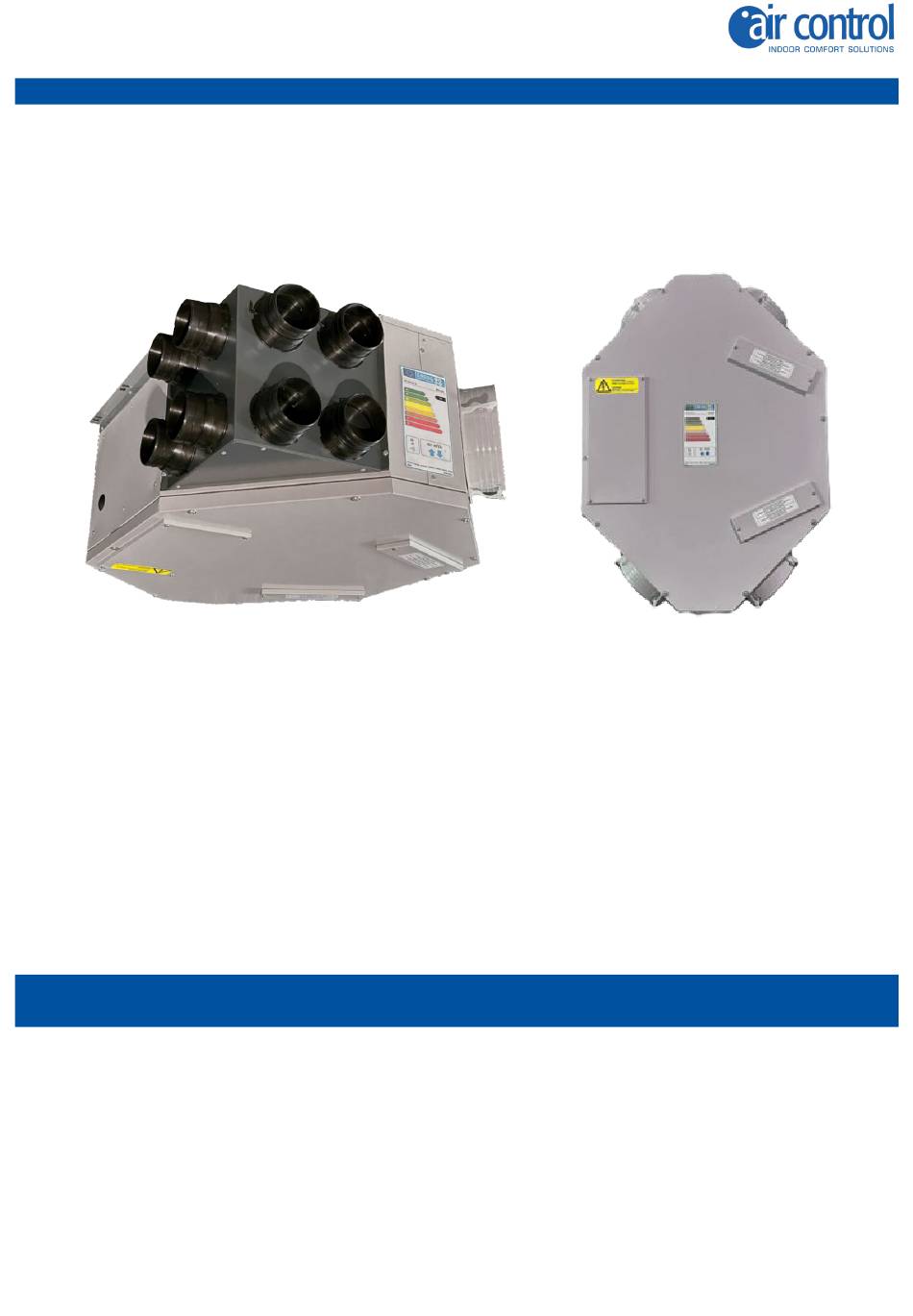

- Page 1 INSTALLATION, USE AND MAINTENANCE MANUAL HIGH EFFICIENCY HEAT RECOVERY UNIT URC DOMO SMART Page 1...
- Page 2 INDEX GENERAL INFORMATION ..............................3 1.1.1 INTRODUCTION ..............................3 1.1.2 BASIC SAFETY RULES ..................................1.1.3 SYMBOLISM..............................4 1.1.4 WARNINGS ..............................5 1.1.5 COMPLIANCE ..............................6...
-
Page 3: Cleaning Or Replacing Filters
4.1.7 CONNECTION OF THE WATER COOLING BATTERY ACCESSORY -BAF- ....17 MAINTENANCE ................................18 5.1.1 CLEANING OR REPLACING FILTERS ..................... . 18 5.1.2 HEAT EXCHANGER CLEANING . - Page 4 • It is forbidden to modify the safety or regulation devices without the authorization and instructions of the appliance manufacturer. • It is forbidden to pull, detach or twist the electrical cables coming out of the appliance, even if it is disconnected from the electrical power supply.
- Page 5 Positioned on one side of the machine. Please remember the presence of electrical hazards and we recommend reading the manual before carrying out any operation. Located next to the condensation water drain. Connect to the water drain as indicated in the corresponding section of this manual.
-
Page 6: Construction Features
RoHS2 2011/65/EU • WEEE 20212/19/EC 1.1.6 GAMMA - 1- - 2- URC DOMO SMART (1) Defines the maximum flow rate 2) Electronic version ZS: BASE Electronics 20: 200 m3/h 40: 400 m3/h ZE: ADVANCED Electronics 1.1.7 IDENTIFICATION The unit can be identified by the nameplate located on the lower front panel of the unit. -
Page 7: Main Components Of The Unit
The URC DOMO SMART units are suitable for internal, ceiling or floor installation and external installation with a roof (additional accessory). For the URC DOMO SMART units, electric batteries (external to the structure) and modules with heating or cooling batteries (water supply fluid) are available. -
Page 8: Dismantling And Disposal
The unit is shipped fully pre-charged with refrigerant gas in the circuits and with non-freezing oil in the compressors. Under no circumstances may there be water in the hydraulic circuits, since the unit is carefully emptied after testing. Upon arrival, the customer is required to inspect the unit, including the internal areas, to verify that it has not suffered any damage during transport;... -
Page 9: Installation Conditions
INSTALLATION 2.1.1 INSTALLATION CONDITIONS The unit must be installed in accordance with national and local regulations governing the use of electrical devices and in accordance with the following indications: install the unit inside residential buildings with ambient temperatures between 0°C and 45°C; avoid areas near sources of heat, steam, flammable and/or explosive gases and particularly dusty areas;... -
Page 10: Condensate Drain Connection
Wall Mount – Unit V To mount the unit on the wall you need: Position the unit against the wall so that the side of the electrical panel is at least 30 cm away from adjacent walls. fix the unit to the wall, using the brackets already installed on the unit and using suitable anchoring systems (plugs, threaded rods, chains, etc.) and check that it is level using a spirit level. - Page 11 give the exhaust pipe a slope of at least 2%; provide for the possibility of disconnecting the exhaust pipe for any maintenance (particularly in the case of ceiling installation); Always connect the siphon to the condensate drain onEXPULSION SIDEof the unit. make sure the drain end of the hose is at least below the water level of the siphon;...
-
Page 12: Vertical Version
VERTICAL VERSION V Outside air Expulsion Resumption Input Internal The units are shown from below (H version) and from the front (V version) In the H1 and H2 versions, always connect the exhaust pipe closest to theEXPULSION SIDEand consequently plug the one present on the intake duct with the appropriate cap. -
Page 13: Electrical Connections
Absolutely avoid running electrical cables in direct contact with pipes or components inside the unit After the first moments of operation, check the tightening of the power terminal screws. Table for sizing the power line. Electrical Data Size URC DOMO SMART 200 URC DOMO SMART 400 Supply voltage T/P/F 230V / 1Ph / 50Hz... - Page 14 Each URC DOMO SMART unit is equipped with a type of regulation, chosen by the customer. 4.1.3 BASIC ADJUSTMENT (CNV-BPM COMMAND) The URC DOMO SMART unit is equipped with an internal compartment for the electrical connection, with a connection terminal block. The terminal block contains the fan cables, both for power and signal.
- Page 15 4.1.4 CNV-SMART ADJUSTMENT The URC DOMO SMART unit is equipped with an electronic control board, wired inside the unit. The panel is equipped with protection fuses for all electrical components (fans, any additional accessories such as 2 or 3-way valves for batteries, electrical resistors, active type probes).
- Page 16 • Control the switching on and off of the URC DOMO SMART unit based on time slots. • Control a 2 or 3 way valve for post water battery, with on/off signal. Batteries and their valves are available as accessories •...
- Page 17 4.1.5 CONNECTION OF THE COMPLETE ELECTRIC BATTERY ACCESSORY WITH REGULATION -BE- The circular section electric post-heating units consist of a galvanized sheet metal frame with wire resistance. They are equipped with circular flanges that facilitate installation on the duct. The side electrical box already complete with cable gland allows access to the components inside: •...
-
Page 18: Maintenance
MAINTENANCE To ensure that the unit always functions correctly and optimally, all maintenance operations must be carried out periodically. 5.1.1 CLEANING OR REPLACING FILTERS To replace the filters, or clean them, proceed as follows: remove power from the unit; open the filter covers using the dedicated screws; remove dirty filters;... - Page 19 Attention!Never touch the fins of the exchanger, handle the View unit for exchanger removal exchanger by holding it only on the closed sides. 5.1.3 GENERAL UNIT CLEANING It is recommended to occasionally check and clean the fans, condensation drain and internal walls of the unit. These operations must be carried out only by qualified personnel (installer).
- Page 20 ALARMS 6.1.1 GENERAL INFORMATION In case of problems or failures, note the model and serial number of the unit you own (found on the identification plate attached to the side of the unit) and contact the installer. Below is the table of unit malfunctions. For all alarms indicated by the control panel, refer to the specific manual. ANOMALY DESCRIPTION CAUSE REMEDY...
- Page 21 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 01- 2025 AIR CONTROL SRL Via Colico 10, 20158 Milan (MI) Tel.
