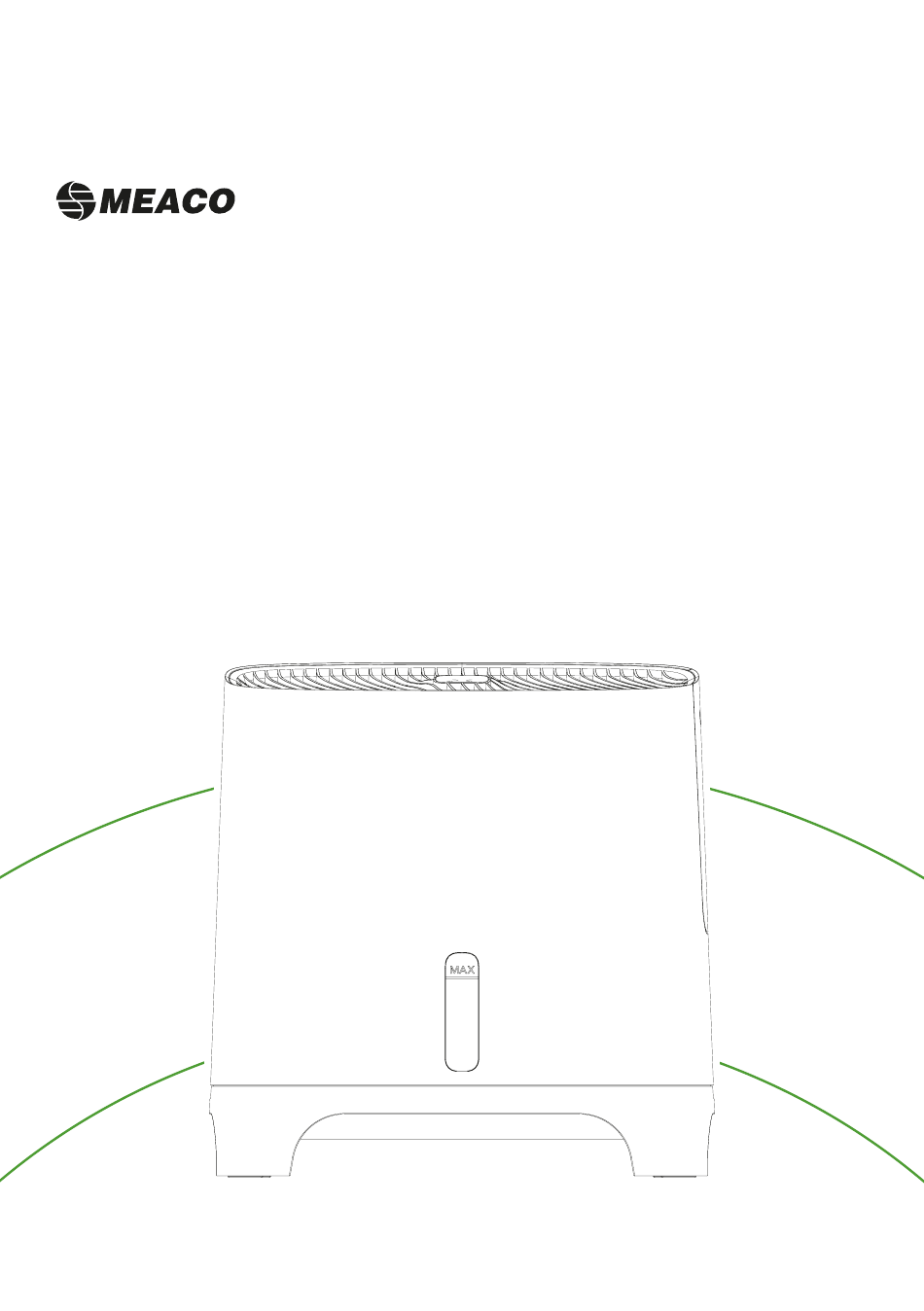

- Page 1 Armin ® Evaporative Humidifier Instruction Manual...
- Page 2 Thank you for choosing Meaco Thank you for choosing Meaco, we really appreciate it. We have designed the Meaco Armin range of evaporative humidifiers because we recognise the ® importance of a good humidifier to your family’s health, and we also understand the frustration that comes with owning and using a humidifier in hard water areas.
-
Page 3: Table Of Contents
Contents Safety information ........Register your Meaco warranty ....What’s included .......... Product identification ........First steps ............ Operation............Water Tank ........... Maintenance ..........Storing ............Troubleshooting .......... Meaco customer care ........ Specifications ..........Warranty terms & conditions ...... [EN]... -
Page 4: Safety Information
If these areas become wet for any reason, thoroughly dry them before using the humidifier. If in doubt, do not use the humidifier and consult a qualified electrician or contact Meaco. Setting your target: We recommend not setting the target relative humidity higher than 60% RH, as mould growth can occur at 68% RH, especially where you have organic materials in the room or outside walls. -
Page 5: Instructions About The Weee
Declaration of conformity Hereby, Meaco declares that this appliance is in compliance with Directive 2014/35/EU and 2014/30/EU with the relevant statutory requirements. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: https://www.meaco.com/pages/compliance-data... -
Page 6: Register Your Meaco Warranty
Register your Meaco warranty Your Meaco humidifier comes with a free 3 year warranty, simply register your details online and you’ll be covered for parts and labour for 3 years from the date of purchase, subject to the terms and condition of the warranty. -
Page 7: What's Included
What’s included Carefully unpack the humidifier. Keep all packaging materials away from children. We recommend flat packing and keeping hold of the box should you need it in the future. 1. Meaco Armin 680 ml/h Evaporative Humidifier ® 2. 2x evaporation pads 3. -
Page 8: Product Identification
Product identification Display Silvertex 10. Water tank flap ® Air Outlet Silvertex holder / 11. Base ® Grill Max fill level indicator 12. Air inlet Cover Water tank 13. Plug and cable Evaporation pads Water tank window Important! Remove the bag around the evaporation pads before use. [EN]... -
Page 9: First Steps
First steps When you first receive your humidifier, it is important you follow the steps below carefully: Check your humidifier and its box and packaging for any transport damage. In case of damage to the humidifier, inform the sender immediately. Choose where you would like to locate your humidifier. -
Page 10: Operation
Operation When the humidifier is first plugged into the mains it will beep once and the display will light up for 2 seconds. All buttons on the control panel only require a short press - press the buttons firmly and quickly (unless you are turning on Child Lock, in which case hold the Night Mode button for 3 seconds). - Page 11 Turbo Mode: Press the Turbo button once to enter Turbo Mode. The fan speed will increase to High. Press Turbo mode again to turn off Turbo Mode, the fan speed will decrease to Medium. Night Mode: Press the Night Mode button once to enter Night Mode. The fan speed will be reduced to Low;...
-
Page 12: Water Tank
Water tank When the water tank is empty and requires filling, the water tank empty indicator will flash for 5 seconds, the humidifier will beep 3 times and the fan will turn off. The water tank can be filled in 3 different ways: Pour water into the water tank Remove the top cover from Remove the top cover from... -
Page 13: Maintenance
Maintenance To ensure your humidifier is always performing at its best, it’s important to regularly clean it. Always unplug your humidifier from the mains before cleaning. Grill and fan blades • The grill and fan blades only need cleaning when visibly dirty. •... - Page 14 The grill will stay connected to the humidifier, rest it on the side. Use a soft dry cloth to clean the fan blades. Repeat the above process in reverse to put the humidifier back together. [EN]...
- Page 15 Evaporation pads • The evaporation pads do not require cleaning. • In order to prolong the life of the evaporation pads they can be turned 4 times (upside down and back to front). This should be done when you can visually see the limescale building or when they start to smell of limescale.
- Page 16 Humidity sensor filter The humidity sensor filter is a small blue pad found under the humidifier lid. • Clean the blue pad once a month. • Clean by running the pad under a tap and giving it a squeeze. Wait for the blue pad to dry before putting it back in the humidifier.
-
Page 17: Storing
3. Store the humidifier in a dust-free location away from direct sunlight, preferably covered with a sheet of plastic or purchase a storage bag from meaco.com. Troubleshooting If you come across a problem with your humidifier, check the table below and try the suggestions. -
Page 18: Meaco Customer Care
Meaco customer care If you have a question about your Meaco humidifier, contact our Customer Service team who will be happy to help. Make sure you have your serial number and details of where and when you purchased your humidifier. -
Page 19: Warranty Terms & Conditions
3. If your humidifier has been opened or tampered with or not genuine components have been fitted by yourself or anyone other than a Meaco engineer, your warranty is invalid. 4. Components subject to normal wear and tear, Silvertex... - Page 20 Version: EN304 Meaco (U.K.) Limited, Meaco House, Parklands, Railton Road, Surrey GU2 9JX, United Kingdom meaco.com...
