Roland SH-3A Service Note page 25

Hide thumbs Also See for SH-3A:

Advertisement

6.

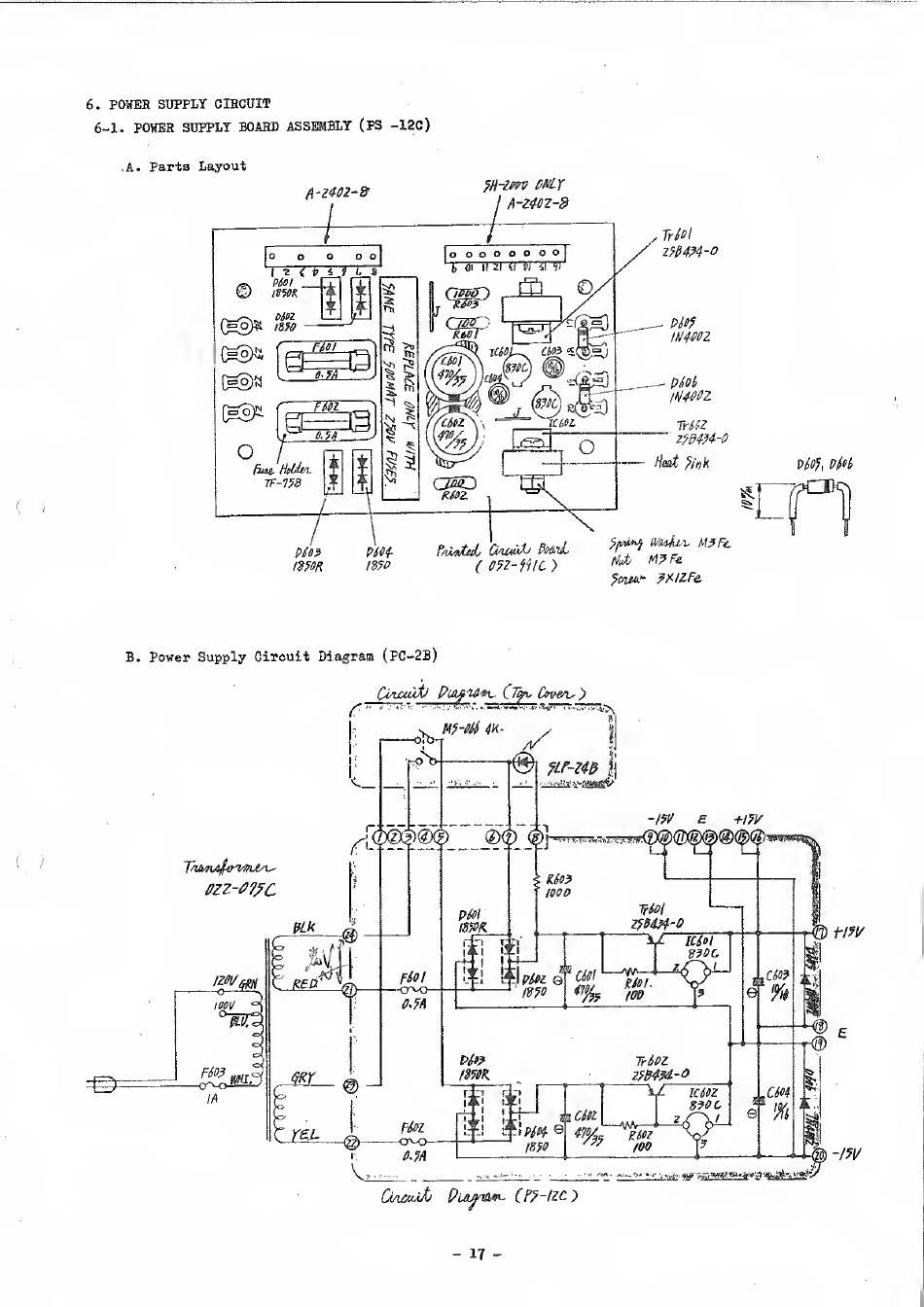

POWER SUPPLY CIRCUIT
6-1.
POWER SUPPLY BOARD ASSEMBLY
(PS -12C)
,A.
Parts Layout
