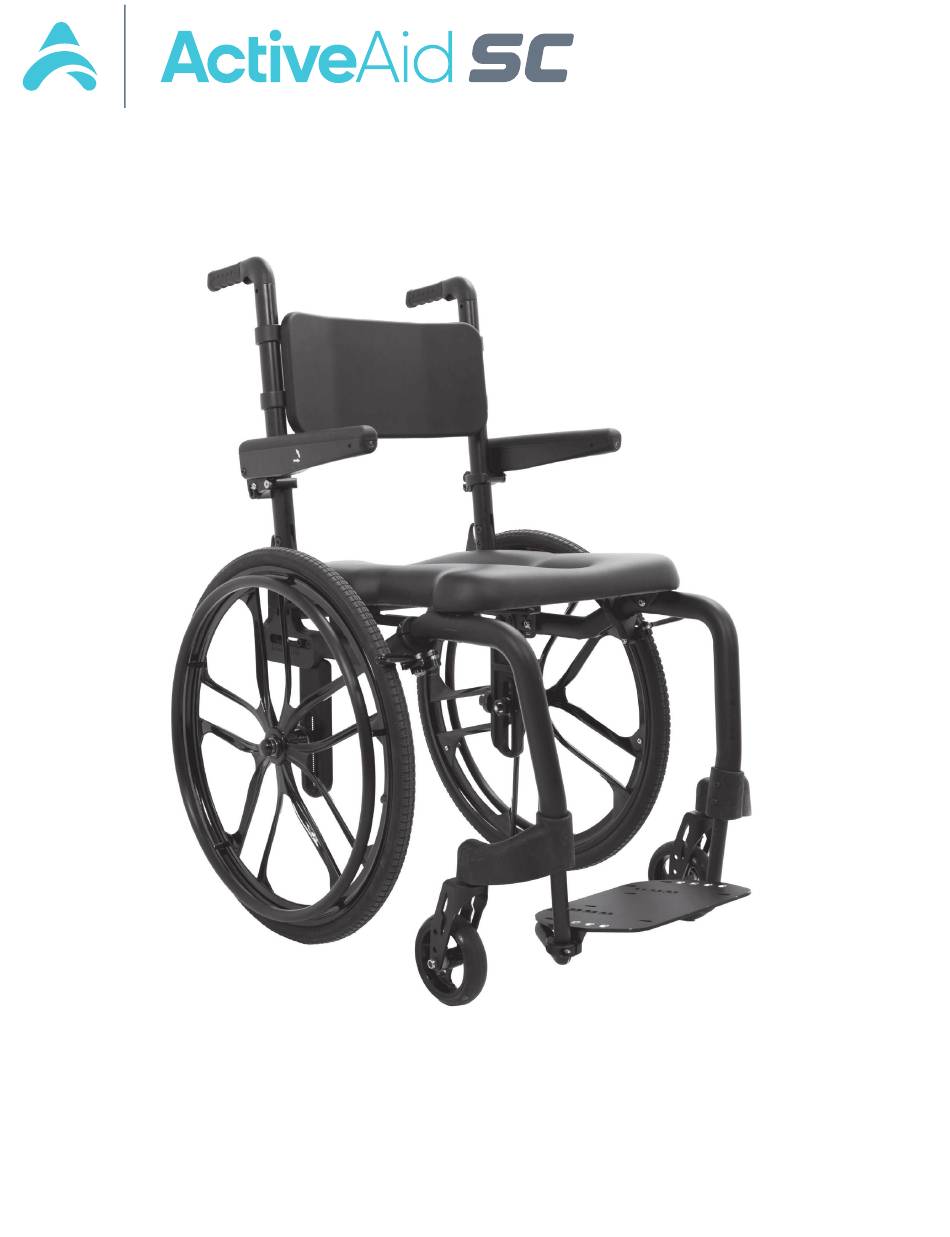

Page 1
INSTRUCTIONS FOR USE Please ensure these instructions stay with the product at all times. A copy can be downloaded from our website activeaid.com Note: The information contained in this document is subject to change without notice. Dealer/Supplier: Please make sure the user of this shower commode chair receives and understands the product information.
Page 2
ymbol egend CAUTION SEE INSTRUCTIONS FOR USE WARNING DATE OF MANUFACTURE SERIAL NUMBER MANUFACTURER MEDICAL DEVICE UNIQUE DEVICE IDENTIFIER CERTIFICATION LABEL/UNIQUE DEVICE IDENTIFICATION LABEL Serial Number Unique Identifier Item Number Item Description Serial Number Date Purchased Serial #...
able of ontentS Introduction Product Description Intended Use Indications for Use Contraindications Essential Function and Performance Expected Life Product Disposal Safety Features Serious Incidents/Adverse Events Safety Precautions Product Specifications Biocompatibility and Allergen Statement Product Materials Recommended Use, Storage and Transport Conditions Assembly Instructions (Intended for Dealer/Distributor use only) Fitting and Adjusting Preventive Maintenance...
If you find the font size is too small to read, this manual is available online for viewing at activeaid.com. The PDF can then be scaled on screen to a font size that is more comfortable for you.
afety recautionS Please read and understand all safety precautions and user instructions prior to use. Call Altimate Medical, Inc. with any questions or for additional information Altimate Medical, Inc. manufactures a wide variety of shower commode chairs to meet the varied needs of users. However, Altimate is not a healthcare advisor and does not know the needs and medical condition(s) of each user.
roduct PecificationS BIOCOMPATIBILITY AND ALLERGEN STATEMENT The materials used in the construction of Altimate Medical products are specified to be as inert and non-allergenic as possible, with the greatest emphasis on medical benefit to the widest range of user. Users which have known sensitivities to certain materials may inquire for specific information on specific components.
SSembly Do not over-tighten hardware attaching any options to the frame. This could cause damage to the frame tubing or permanent damage to the threaded fastener or option. 1. Remove all parts from the shipping box. Remove all packaging and lay parts out. Tools Required: 2-Open End Wrenches 7/8"...
Page 9
5. Remove the tape from the spacer block and spacers, discard tape. Note: There may be up to 5 spacers depending on the Pan Hanger Drop that was ordered. 6. Remove the plug and spring from the assembly and separate the spacer block, spacer(s) and bolts.
Page 10
9. Insert the spring into the middle hole of the spacer block. Insert the black plug into the middle hole of the spacer block, making sure the rounded end of the black plug is upright. 10. Place the commode pan track onto the spacer block as shown, lining up the holes and the track opening facing towards the center of the seat.
Page 11
13. Place one front caster assembly onto frame legs as shown. The caster mounts with the curve outwards towards the rear of the chair. Note: Make note of the notches in the frame legs for Step 15. NOTCH 14. Place the other front caster assembly onto the other side of the frame leg, making sure the caster mounts with the curve outwards towards the rear of the chair.
Page 12
17. Line up holes on the front caster assembly, foot plate frame and frame legs, insert bolts, start all 4 bolts before tightening each bolt. 18. If the bolted axles were ordered, withe handrim to the outside of the frame, line up the wheel with the wheel mount hole on the frame.
Page 13
21. For the Quick Release Axles, depress button on the axle end to recess the ball locking pins, and start the bolt through the wheel. Continue depressing the button to insert the bolt into the wheel mount. Repeat for the other wheel. Note: The ball locking pins will secure the axle in place when the button is released.
Page 14
25. With the holes lined up, making sure the nut is still in place on back tube, insert the bolt from the inside and tighten securely. Repeat step for the other side. 26. If the angle-adjustable and foldable back was ordered, flip back up to the vertical position.
Page 15
29. Press the side tab in on each side of the latch to lock the latch and back into position. 30. If the flip up armrests were ordered, using an allen wrench, remove the 2 bolts from the clamp assembly. If the Multi-Adjustable Flip Up Armrests were ordered, skip to Step 33.
Page 16
33. If Multi-Adjustable Flip Up Armrests were ordered, place the armrest onto the front shoulder bolt on the assembly as shown. SHOULDER BOLT 34. Press the plunger tab, lower the arm onto the rear shoulder bolt and depress the plunger tab to lock into position. Repeat steps for the other armrest.
Page 17
37. Insert Push Handle Stroller Style into the two clamps on the back frame. 38. Insert 4 screws that were set aside in Step 35, start all 4 screws first before tightening and tighten securely. 39. Buckle the straps back together. 40.
Page 18
41. Insert Push Handle into back frame as shown. Insert bolts and tighten securely. Repeat step for the other side. 42. Remove the screw and locknut located at the end of the anti-tipper tube, (the side without the small wheel) and set aside. 43.
Page 19
45. If the Swing-Away Gooseneck Flip-Up Foot Plates were ordered. Remove the clamp and ratchet handle from the clamp assembly. 46. Place the clamp on the frame as shown, with hole side towards the front and the slots facing up. Insert ratchet handle into the hole on the outside of the frame and tighten securely.
Page 20
49. If the side guards were ordered. Insert side guard onto the bracket as shown. Repeat steps for the other side. 50. If the Toggle Wheel Locks were ordered, loosen the screw to rotate the Toggle Wheel Locks into position. 51.
Page 21
53. Swing the Swing-Away Adjustable Lateral out towards the front of the chair. 54. Place Swing-Away Adjustable Lateral into position. Repeat steps if the other side Swing-Away Adjustable Lateral was ordered. 55. Using allen wrench, loosen screw at pivot points to adjust the position of the lateral pad.
The ActiveAid SC should be ordered and shipped in a configuration suitable to the intended user. Due to the complexity of several settings, any adjustments to the Adjustable Rear Axle Placement (ARAP), Seat Slope, Back Height and Arm Height after final assembly/delivery should only be performed by technically competent persons only such as Dealer/Distributor or Medical Professional.
Page 23
itting and djuSting ONLY TO BE PERFORMED BY TECHNICALLY COMPETENT PERSONS ONLY SUCH AS ADJUSTABLE REAR AXLE PLACEMENT (ARAP) DEALER/DISTRIBUTOR OR MEDICAL PROFESSIONAL. 9. Flip the unit back upright, place silver plate onto the bolts. Place the 2 nuts onto the bolts. 10.
Page 24
itting and djuSting ONLY TO BE PERFORMED BY TECHNICALLY COMPETENT PERSONS ONLY SUCH AS DEALER/DISTRIBUTOR OR MEDICAL PROFESSIONAL. SEAT SLOPE There are 4 Seat Slope positions, to adjust the Seat Slope, using a allen wrench remove the bolt under the seat from the bracket as shown on each side of the seat.
itting and djuSting STROLLER HANDLE HEIGHT 1. Using an allen wrench, loosen the 2 bolts on each clamp on each side on the back frame. FLIP-UP ARMRESTS 1. To flip up the armrest, pull the armrest towards the front of the unit and flip up. 2.
itting and djuSting ANGLE-ADJUSTABLE AND FOLDABLE BACK ANGLE 1. There are 3 positions for the Angle-Adjustable and Foldable Back angle, 0˚,7˚, and 14˚. 2. Pull both back levers on each side of the back. 3. Position the latch into the one of the 3 locations, making sure the other side is in the same position. Press the side tab in on each side of the latch to lock the latch and back into position.
ANTI-TIPPERS 1. To lower anti-tippers, use a allen wrench and open ended wrench to remove nut and bolt. 2. Position anti-tipper into desired position leaving about a 1/2 clearance from the floor. 3. Insert bolt into hole, place nut onto bolt and tighten securely. SWING-AWAY GOOSENECK FLIP-UP FOOT PLATE HEIGHT To adjust the foot plate height, loosen the ratchet handle and place into the desired position.
Discontinue use of the product if any of the checks fail and contact your Dealer/Distributor for replacement of worn or damaged parts. Use only recommended ActiveAid replacement parts; use of any other parts may void your warranty and cause damage to your device.
The ActiveAid SC is classified as a Class I Medical Device under US, and Canadian regulations. Altimate Medical, Inc. as manufacturer with sole responsibility declares that the ActiveAid SC conforms to the requirements of ISO 13485 Medical devices - Quality management systems – Requirements for regulatory purposes, ISO 17966 Assistive products for personal hygiene that support users –...
artS ePl acement Contact your Dealer/Distributor to request replacement for worn or damaged components. Please have the serial number available when you call. Your Dealer/Distributor will contact Altimate’s Customer Service to obtain the necessary items for your specific device. artS etail eatS...
arranty This warranty is extended only to the original purchaser/customer (or supplier non consumer who does not buy or resell). Altimate Medical, warrants the device against defects in materials and workmanship as listed below. • Frames – 3 year warranty •...
