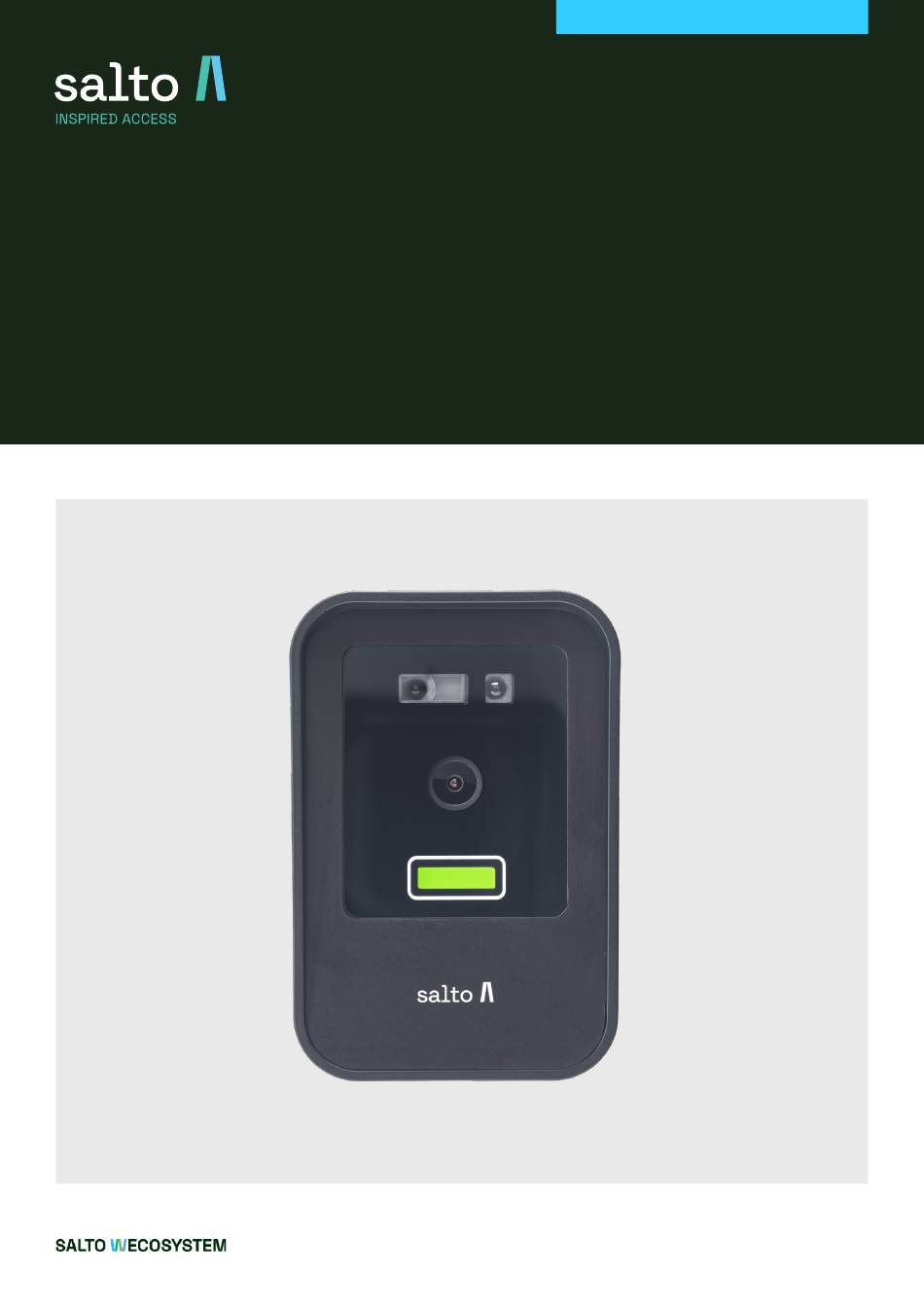

INSTALLATION GUIDE

Salto Orion

Model Electronic Info: FRO01

01/27

227972 - ED.0 - 08/07/2024

Table of Contents

Need help?

Do you have a question about the FRO01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salto FRO01

Page 2: Table Of Contents
What’s in the box? 05 - 06 Orion Camera Orion Control Unit Placement 09 - 10 Installation 11 - 32 Commissioning 33 -41 Specifications and Requirements 42 -44 02/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 3: Considerations
In a situation such as a busy road this could cause unnecessary load upon the network. Cameras should be positioned such that there is a minimum of 2m between the Orion Camera and any adjacent roadway. 03/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 4 300mm to approximately 600mm. Accommodating Disabilities Where an access point is wheelchair accessible, the Orion Camera will need to be set slightly lower, or two cameras should be fitted. 04/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 5: What's In The Box
INSTALLATION GUIDE I Salto Orion What’s in the box? Orion C Orion C Orion C Face Plate Camera Wall Mount (X4) (X4) Bung Orion C 3 meter Cat6 shielded cable 05/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 6 INSTALLATION GUIDE I Salto Orion What’s in the box? Orion CU Orion CU Orion CU (Control Unit) (Control Unit) (Control Unit) DIN mount Fixing plates (X4) (X4) 06/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 9: Placement
Installation of a Control Unit above a ceiling behind the locked door (not in the corridor or space outside the locked door), using the provided Orion C 3 metre-long cable. 09/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 10 Installation of a Control Unit in a cabinet behind the locked door (not in the corridor or space outside the locked door), using the provided Orion C 3 metre-long cable. 10/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 11: Installation
Using the window, position the Camera Wall Mount at the correct height and mark the hole centres. Ensure the wall mount is positioned horizontally using a spirit level. 11/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 12 Drill 4 holes for the mount points and the access hole for the RJ45 cable. INSTALLATION Mount the Orion C Wall Mount using the wall Plugs and Screws. 12/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 13 Route the RJ45 Cable to the Camera Wall Mount making sure the minimum bend radius of 60mm is observed. A larger bend radius is preferred. Ensure there is no strain on the cable connection. 13/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 14 Locate the Wall Mount into the Wall Mount. tongue into the slot on the top of the Orion Ensure there is no strain on Camera casing. the cable connection. 14/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 15 Using a T8H security screwdriver, gently remove the security screw until it is clear of the inside wall. Avoid using electric screwdrivers to minimise damage to the device. INSTALLATION STOP 15/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 16 INSTALLATION GUIDE I Salto Orion INSTALLATION Control Unit Din Rail Mounting Option INSTALLATION Orion CU Din Rail Type assembly 16/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 21 QR code is moved away or the program has restarted. INSTALLATION STOP Status display returns to flashing yellow to indicate precommission standby mode. 21/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 22 Be sure to engage the screwdriver with one of the slots before attempting to turn it. Turn very small amounts to adjust. Take care not to damage the head of the adjuster 22/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 23 Orion Server, please go to the Orion Software User Manual. The Orion Console allows each Orion Camera to COMMISSION be paired with its associated SALTO door using a uniquely generated QR code. Orion Console Login screen: Orion Console Credentials Entry...
Page 25 LED will turn off and then show a flashing blue light whilst the Camera is initializing. This will turn to continuous white once initialization is complete. 25/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 26 A final layer of protection and integrity is provided by this cover. Therefore, take special care to ensure that the cover is stuck correctly to the full surface of the camera casing. 26/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
Page 27: Specifications And Requirements
The install process will harden the server installing an configuring a firewall and OS updates. Access Control System For Integration with SPACE (Space minimum version 6.9 with SPACE) OPT-0018 (SHIP interface). 27/27 227972 - ED.0 - 08/07/2024 Copyright © 2024 Salto Systems, S.L.
