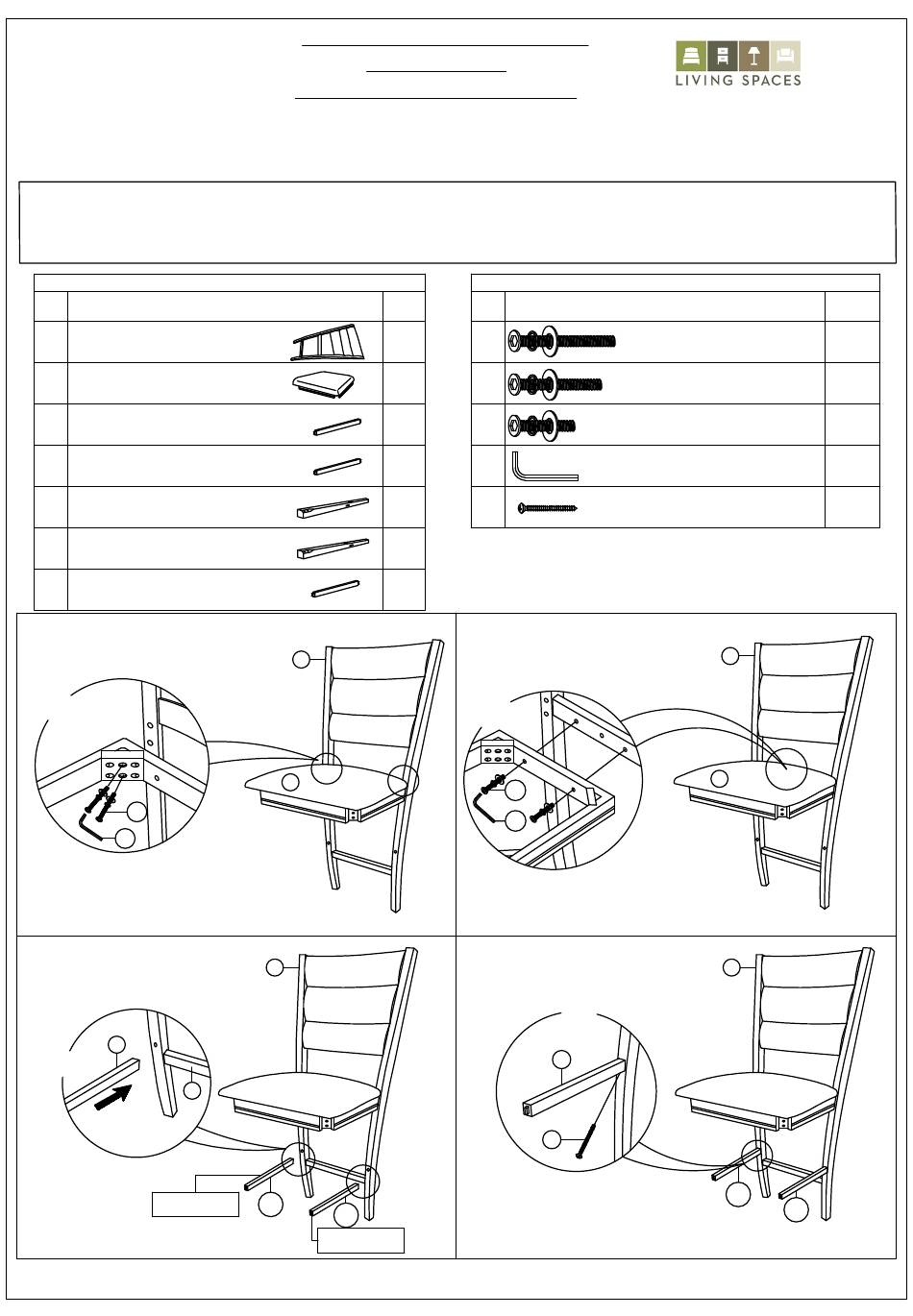

Living Spaces 2750AG Assembly Instruction

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may
come loose inside the carton during shipment.
Identify and count all parts.
NOTE: ASSEMBLE THE CHAIR ON A FLAT & SOFT SURFACE. DO NOT TIGHTEN ALL THE SCREWS UNTIL THE
CHAIR HAS BEEN PUT A FLAT /HARD SURFACE ADJUST & LEVEL ALL THE LEGS SO THAT THEY DO NOT
WOBBLE. ONCE ADJUSTED THEN TIGHTEN ALL THE SCREWS.
PARTS LIST
NO DESCRIPTION
1 CHAIR FRAME BACK
2 BOX SEAT
3 SIDE STRETCHER (RIGHT)
4
SIDE STRETCHER (LEFT)
5
FRONT LEG (RIGHT)
6
FRONT LEG (LEFT)
7 FRONT STRETCHER
STEP 1
x4
A
D
STEP 3
3
x2
1
MARKING
R-RIGHT
NOTE: TO ENSURE CHAIR DURABLE AND LONG LASTING, PLEASE CHECK ENTIRE CHAIR PART WHETHER IT'S IN SAFE AND ORDINARY CONDITIONS.
ASSEMBLY INSTRUCTION
2750AG-S-24
COUNTER HEIGHT CHAIR
QTY
1
1
1
1
1
1
1
1
2
1
3
4
MARKING
L-LEFT
HARDWARE LIST
NO DESCRIPTION
JCBC SCREW (NYLOK) M6 X 80MM
A
WITH LOCK WASHER & WASHER
JCBC SCREW (NYLOK) M6 X 60MM
B
WITH LOCK WASHER & WASHER
JCBC SCREW (NYLOK) M6 X 35MM
C
WITH LOCK WASHER & WASHER
ALLEN KEY M4
D
E
STEP 2
x2
C
D
STEP 4
x2
3
E
PAN HEAD #8 x 32MM
1
2
1
3
4
QTY
4
4
2
1
6
Page 1 of 2
