Living Spaces 2773LG-S-24 Assembly Instruction

ASSEMBLY INSTRUCTION
INSTRUCCIONES
HARDWARE LIST / LISTA DE TORNILLO
BOLT (Ø1/4" x 20 x 3-1/8")
A
(Chair back leg corner)
BOLT (Ø1/4" x 20 x 2-3/8")
B
BOLT (Ø1/4" x 20 x 1-1/2")
C
(Chair back center)
D SCREW (#8x45mm)
ALLEN KEY ( 4mm )
E
STEP 1 STEP 1
2
1
STEP 3
2
4
1
DO NOT TIGHTEN ALL BOLTS UNTIL COMPLETELY ASSEMBLED !
NO APRETER LOS TORNILLOS HASTA ARMAR COMPLETAMENTE
(Front leg)
3
5
6
7
2773LG-S-24 (COUNTER HIGH TABLE)
2773LG-S-24 (MESA ALTA DE MOSTRADOR)
PARTS LIST / LISTA DE PARTES
4PCS
1
2
4PCS
3
2PCS 4
5
6PCS
6
1PC
7
STEP 2

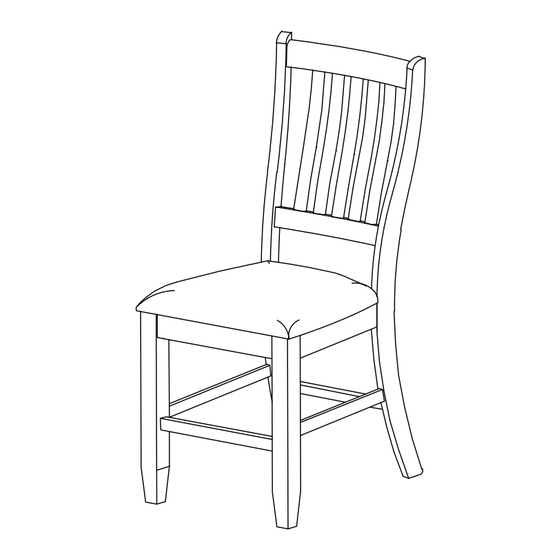

FINISH
D
CHAIR BACK
CUSHION WITH SEAT FRAME
RIGHT FRONT LEG
LEFT FRONT LEG
FONT STRETCHER
RIGHT STRETCHER
LEFT STRETCHER
3
2
4
5
6
7
1PC
1PC
1PC
1PC
1PC
1PC
1PC
E
1 of 1
