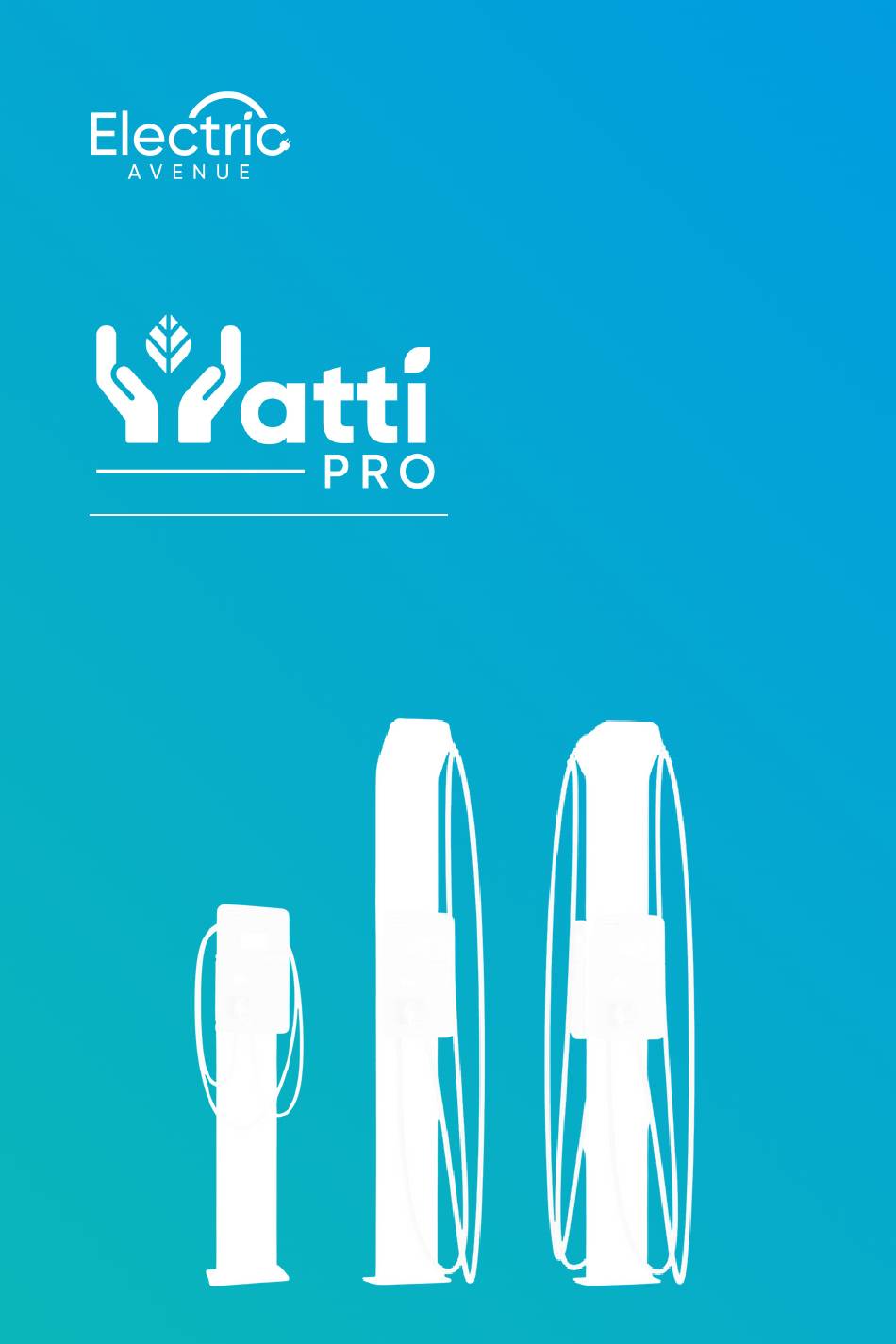

- Page 1 WATTI PRO PEDESTAL INSTALLATION & USER GUIDE...
- Page 2 Images in this manual are for illustration purposes only and may differ from the delivered product. © 2024 Electric Avenue Manufacturing Inc. All rights reserved. This document is protected by the copyright laws of Canada, the United States and other countries.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Getting Started Pedestal Base Dimensions................Pedestal Top Dimensions................Pedestal Components.................. Installation Preparing the Concrete Pad............... Pedestal Base Installation................Pedestal Top Installation................Cable Retractor Installation................ -
Page 4: Getting Started
GETTING STARTED PEDESTAL BASE DIMENSIONS WARNING: This pedestal is not to be used as a junction box or WARNING: cable conduit. It is a pass-through for EMT, ENT, flex conduit or armored cable only SIDE FRONT 330 mm 65 mm 250 mm ⌀... -
Page 5: Pedestal Top Dimensions
GETTING STARTED PEDESTAL TOP DIMENSIONS WARNING: This pedestal is not to be used as a junction box or WARNING: cable conduit. It is a pass-through for EMT, ENT, flex conduit or armored cable only FRONT SIDE: DUAL SIDE: SINGLE... -
Page 6: Pedestal Components
GETTING STARTED PEDESTAL COMPONENTS Lower Pedestal Base AC Through Hole LAN Through Hole Side Wiring Accees Window Pedestal Top with Cable Management Retractable Cable Clamp Back Cover Plastic - ⌀18 and ⌀22 Cable Clip Assembled Cable Clamp... -
Page 7: Installation
INSTALLATION PREPARING THE CONCRETE PAD CAUTION: The built concrete pad should be compliant with local CAUTION: regulatory requirements. The following dimensions and struction- related descriptions are the minimum requirements only. CONCRETE PAD SCHEMATIC Cable Conduit Suggest: Charging current 32A: Use 1/2" conduit Charging current 48A: Use 3/4"... -
Page 8: Concrete Pad Dimensions
INSTALLATION PREPARING THE CONCRETE PAD CONCRETE PAD DIMENSIONS Unit: mm Fig. 3 First, build the concrete pad for the pedestal. The compressive strength must be over 3000psi. Reference Fig. 1 and Fig. 2 (page 5) and the concrete pad dimensions (W400mm x L400mm x H500mm) as shown in Fig. -
Page 9: Pedestal Base Installation
INSTALLATION PEDESTAL BASE INSTALLATION STEP 1 The pedestal base has 4 holes to align with the anchor bolts in the concrete pad. Place the pedestal base on the concrete pad, ensuring the holes in the pedestal base fit over the anchor bolts. - Page 10 INSTALLATION PEDESTAL BASE INSTALLATION Option 2: Through the back LAN cable through holes AC Cable through holes (RJ45 8P8C Modular Plug) *(RJ45 8P8C Modular Plug Crystal head of metal shell, Cat. 6 STP or above specification wire) STEP 3 Remove the (3) screws on the charger in the order bottom-side-side (1-2-3 as shown) to remove the wall-mount bracket from the charger.
-
Page 11: Need Assistance
PEDESTAL BASE INSTALLATION STEP 4 Attach the wall mount bracket to the pedestal using the four screw holes to fasten the bracket of the charger. The positions are shown below: ⌀20 ⌀30.5 ⌀19 NEED ASSISTANCE? Electric Avenue Technical Support: 1-888-353-2283 support@goelectricave.com... - Page 12 INSTALLATION PEDESTAL BASE INSTALLATION STEP 5 Attach the Watti Pro EV charger to the mounting bracket. Align the charger equipment in a horizontal direction, so that the AC connector of the equipment can be inserted into the conductive spring plate of the wire box.
- Page 13 INSTALLATION PEDESTAL BASE INSTALLATION If you wish to use metal hoses, you need your own IMPORTANT: two hose waterproof joints. Lock Nut Washer Body Seal Sealing Nut Connector Suit to RCCN Suit to RCCN Thread Panel Thread Item No. Thread conduit item no conduit item no O.D.
-
Page 14: Pedestal Top Installation
INSTALLATION PEDESTAL TOP INSTALLATION STEP 1 STEP 2 Install the cable Remove the 4 M48L screws management system. from the back cover. STEP 3 STEP 4 Lock the 2 M820L screws. Screw the cover back onto the support. -
Page 15: Cable Retractor Installation
INSTALLATION CABLE RETRACTOR INSTALLATION STEP 1 Pull the cable ring down to the appropriate height and stop the movement of the cable, locking it in place. STEP 2 Refer to the outer diameter of the cable to select the appropriate inner ring (D18 or D22) for the cable clamp. Insert the inner ring into the cable clamp. - Page 16 INSTALLATION CABLE RETRACTOR INSTALLATION STEP 3 Use the cable clamp screws to lock the ring in place, then tug once to release the cable back into place. STEP 4 Repeat on the other side if using dual stations.
- Page 17 Always Be Charging...
