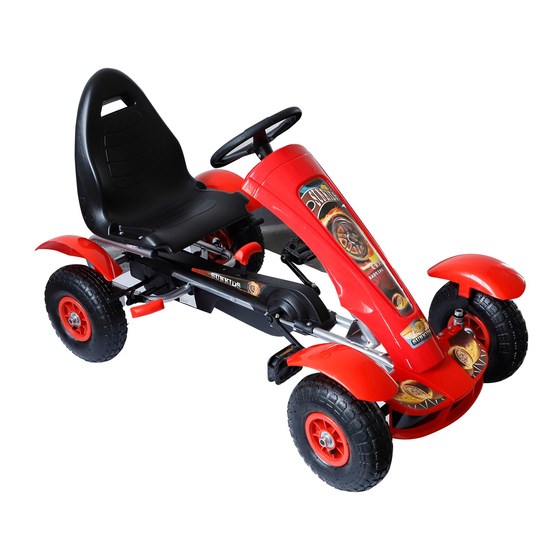

Pedal go-kart

Advertisement

Available languages

Available languages

Quick Links

WARNINGS:
Not suitable for children under 5 years of age
Maximum capacity of 50kgs
Adult supervision required at ALL TIMES
Children should be instructed on of how to apply
brakes before use
This product should not be operated on public roads,
highways or bicycle paths
Read 'Safe operation' section before use
Always inspect and maintain product prior to use
The toy should be used with caution since skill is
required to avoid falls or collisions causing injury to the
user or third parties.
SAFE OPERATION:
This product must be assembled by an adult and
checked by an adult before use
Ensure nuts and bolts remain securely fastened before
use
Lubricate the chain often
Ensure the tyres are pumped up before use – use hand
pump only (maximum 30 PSI)
Perform a brake test before use
Do not store in direct sunlight
EN
PEDAL GO-KART
Operating Instructions
and Assembly Manual
Execution Standard:EN71-1,2,3
Please read this manual carefully before use
Caution: For correct and safe operation of this product, be sure to read this
instruction manual carefully before use. Please retain this user manual for
future reference.
341-028

Advertisement

loading
Need help?

Need help?

Do you have a question about the 341-028 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOMCOM 341-028

  • Page 1 SAFE OPERATION: 341-028 This product must be assembled by an adult and checked by an adult before use Ensure nuts and bolts remain securely fastened before Execution Standard:EN71-1,2,3...
  • Page 2 Parts List (included): Assembly Instructions: 1. Fit the steering tube into the kart chassis. A、Kart Chassis B、Steering Tube C、Front Faring Insert the steering shaft from the bottom the chassis,making sure you align the hooked end with the yoke in the steering rack. D、...
  • Page 3 Fit the steering wheel to the steering shaft,using the 35mm Fix the seat using the 4x45mm nut,bolts&washers, unt and bolt. The seat frame has 2 positions you can alter these to suit the child. Fix the front faring at the base using 2x10mm screws. Fit the mud guards, by pushing them over the grips, they don’t click Under the mud guard the will be a write R for right &L for...
