ARCOL eMirror Joystick User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
eMirror Joystick
User Manual
English
V 11/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eMirror Joystick and is the answer not in the manual?

Questions and answers

Related Manuals for ARCOL eMirror Joystick

Summary of Contents for ARCOL eMirror Joystick

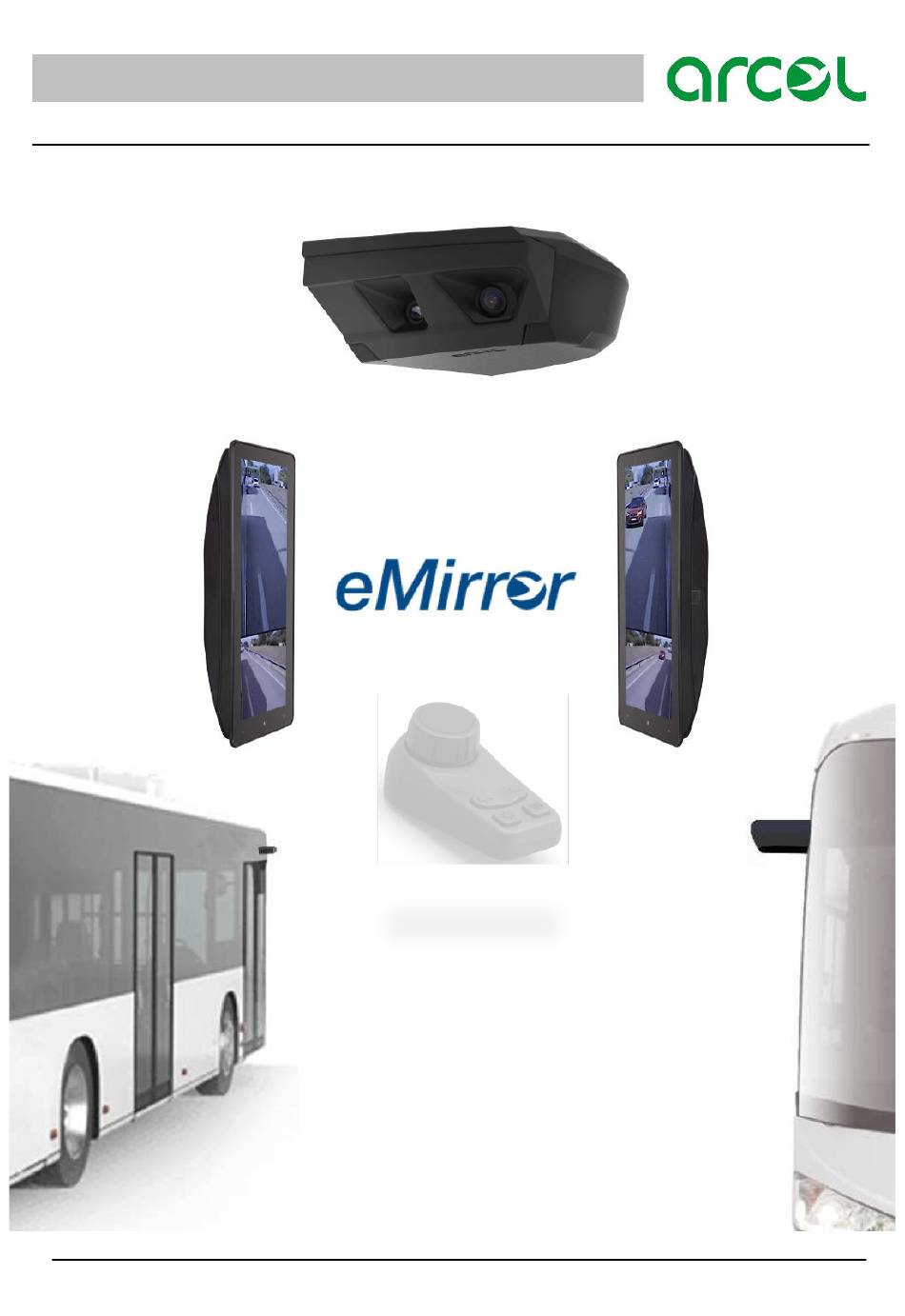

  • Page 1 Joystick User Manual English V 11/2024...

  • Page 2: Table Of Contents

    Joystick Content Page 1. Joystick connection 2. System configuration 3. Options menu 3.1. Heating 3.2. Brightness 3.3. Reference lines 3.4. Change to class V 3.5. Change to class VI 4. Joystick shortcuts 5. “Settings” configuration 5.1. Reference lines configuration 6.

  • Page 3: Joystick Connection

    Joystick 1. Joystick connection To use eMirror Joystick it’s necessary to connect Joystick with a special cable. The first step is to power off system and disconnect power cable from eMirror. After that, connect the joystick with the special cable provided as indicated at below.

  • Page 4: Options Menu

    Joystick 3. Options menu 3.1. Heating It’s possible to configure camera heating as it indicated below: Heating automatic mode. When camera sensor temperature reaches inferior threshold eMirror enables camera heating until the camera reaches the superior threshold. [Default value] Heating is off.

  • Page 5: Change To Class

    Joystick 3.4. Change to class V System allows to show the class IV or V on monitor located at passenger's side as it indicated as following: Monitor at passenger's side shows class V. Monitor at passenger's side shows class IV. [Default value] 3.5.

  • Page 6: Settings Menu

    Joystick 5. “Settings” menu The following steps will lead you to configure different functions of the system. Step 1 Press “Settings” icon on icon bar during 5s and release it. So, configuration menu will appear on class IV side of the display:...
  • Page 7 Joystick Step 2 Select “Configure” option (text highlighted in grey) and it will appear the different parameters of the system to change: - System Power-off Seconds: Move the bar to define time desired. This is the time the unit will remain active after the KL-$$/Contact signal is removed.
  • Page 8 Joystick Step 4 Select “Unit status” option to check the hardware of the eMirror system: Figure 6.- Unit status menu Step 4 Select “Reboot unit” option to see the most of changes done during system configuration: Figure 7.- Reboot unit menu...

  • Page 9: Reference Lines Configuration

    Joystick 5.1. Reference lines configuration - Once on “Configure” menu, select “Reference lines” option. This allows you to configure each of the three reference lines individually. Selecting each line item, you can set its position and width on display moving each of the sliders.

  • Page 10: Change Log

    Joystick 6. Change log V 05/2023 - Document release V11/2024 - Manual updated acc. to eMirror SW 2.0 English V 11/2024 10 of 10 *The information in this document is subjected to change due to continuous product improvements.
