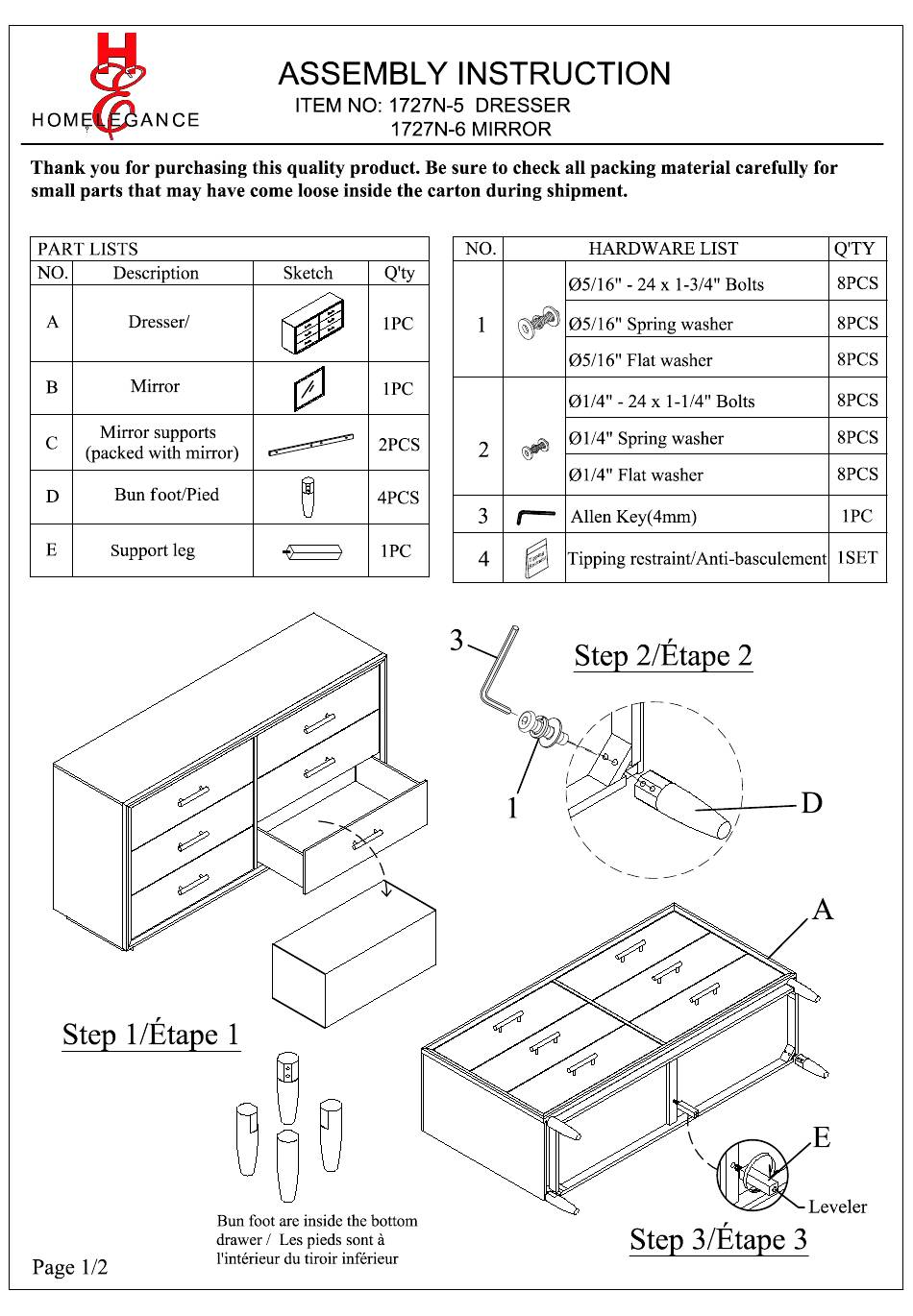

Homelegance 1727N-5 Assembly Instruction

ASSEMBLY INSTRUCTION
G HOMELE ANCE
ITEM NO: 1727N-5 DRESSER
1727N-6 MIRRO R
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may have come loose inside the carton during shipment.
PART LISTS
NO. Description
Dresser/
Sketch Q'ty
1PC
A
NO. HARDWARE LIST Q'TY
Mirror
1PC
B
Mirror supports
(packed with mirror)
2PCS
C
3
8PCS
Allen Key(4mm)
1PC
8PCS
8PCS
1SET 4
1
4PCS
D
Ø5/16" - 24 x 1-3/4" Bolts
Ø5/16" Spring washer
Ø5/16" Flat washer
8PCS
Ø1/4" - 24 x 1-1/4" Bolts
Ø1/4" Spring washer
Ø1/4" Flat washer
8PCS
8PCS
2
1PC
E
S
upport leg
Step 1/Étape 1
Bun foot are inside the bottom
drawer / Les pieds sont à
l'intérieur du tiroir inférieur
Leveler
Step 3/Étape 3
Step 2/Étape 2
Page 1/2
Bun foot/Pied
Tipping restraint/Anti-basculement
A
E
D
3
1
