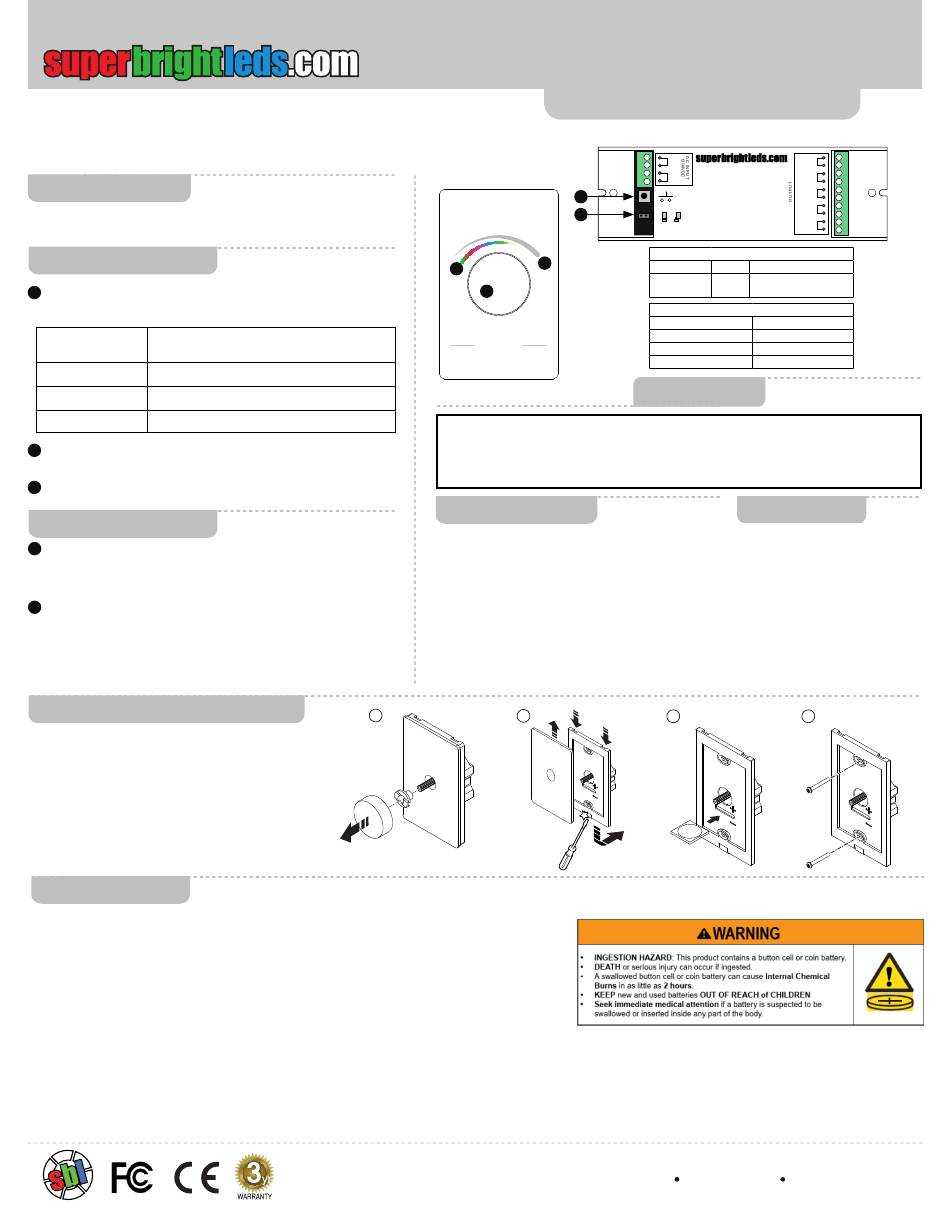

superbrightleds EZD-RGB-WM Instructional Sheet

Wireless led rgb wall switch for ez dimmer series controllers

Advertisement

Quick Links

Important: Read all instructions prior to installation.
Wireless LED RGB Wall Switch
for EZ Dimmer Series Controllers
Parts Included
1 - 868MHz RGB LED Dimmer Wall Switch
1 - 3V CR2032 Battery
Wall Switch
1. On/Off/RGB Color/Brightness Push Dial
1
Push dial for remotely activating/controlling RGB light strips.
Turns light on/off. If the receiver Controller Pairing Switch
Single Press
has been depressed, a single dial press on the Wall
Switch pairs the Switch to the Controller.
Increases or decreases LED intensity until you release,
Double Press
turning LED on will remember the last memory position
During color mode, scrolls through RGB light strip colors.
Left/Right Movement
During dimming mode, controls LED intensity level
Hold Press
Increases LEDs to maximum intensity
2. Color Gradient
2
Visual key representing the specific dial colors.
3. Dimming Level
3
Visual key representing the dial brightness level.
Controller
4. Pairing Switch
4
To Pair Wall Switch to Controller, push once and then push Wall
switch. Lights will blink once to indicate linking. To unpair Wall
Switch(es), push and hold until lights blink twice.
5. Master/Slave Jumper
5
Set Jumper to Master for main Controller. Master emits
syncronization signal to Slave Controllers. Set Jumper to Slave
to receive syncronization signal from Master Controller. Use
Master for the first Controller in each zone. To acheive precise
syncronization between Controllers in one zone, set additional
Controllers to slave.
Wall Switch Instructions
1. Pull off dial and collar from front plate.
2. Using a flat head screwdriver, pry rear switch
housing away from front plate.
3. Insert battery with tray into slot, matching the
polarity on the battery with the slot labels.
4. Fasten wall switch using mounting screws.
5. Reinstall front plate, collar and dial.
Battery Safety
• Remove and immediately recycle or dispose of used batteries according to local regulations and keep
away from children. Do NOT dispose of batteries in household trash or incinerate.
• Even used batteries may cause severe injury or death.
• Call a local poison control center for treatment information.
• Non-rechargeable batteries are not to be recharged.
• Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating)
or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
• Ensure the batteries are installed correctly according to polarity (+ and -).
• Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or
rechargeable batteries.
• Remove and immediately recycle or dispose of batteries from equipment not used for an extended period
of time according to local regulations.
• Always completely secure the battery compartment. If the battery compartment does not close securely,
stop using the product, remove the batteries, and keep them away from children.
2 - Mounting Screws
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation. Any changes
or modifications in construction of this device which are not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Set-Up Instructions
Remote
1. Follow illustrated steps to remove the Battery Tray. Insert the
Controller
1. Make sure power to the Controller is disconnected.
2. Using a small flathead screwdriver, loosen the labeled
3. Matching light strip wires with labeled slots on the Controller,
4. Turn power on and wait until light strip illuminates. If it does
1
Rev Date: V2 02/14/2025
4400 Earth City Expy, St. Louis, MO 63045
Instructional Sheet
EZD-RGB-WM
4
5
3
2
1
Push ON/OFF
3V battery included with the Wall Switch.
terminal screws visible on the top of the controller.
insert wires and tighten terminal screws. Be sure wire
conductor, not wire insulation, is secured in terminal.
not come on, check light strips and wiring connections.
2
TEMP RANGE: -20ºC-+50ºC
W
MASTER
SLAVE
Part Number:
EZD-RGB-WM
Controller: EZD-4C8A
EZD-4C8A Controller
V+
V+
EZD-4C8A
Easy Dimmer Series
V-
PRI:
CH1
Uin=12-36VDC
lin=8.3A
SEC:
CH2
Pairing
Uout=1x(12-36)VDC
Switch
Iout=4x8A
CH3
Pout=1x(96-288)W
TEMP RANGE: -20ºC-+50ºC
CH4
MASTER
SLAVE
EZD-4C8A Controller
Input Voltage Current
Output Wattage
12~36 VDC
4 X 8A 384W(12V) 768W(24V)
1152W(36V)
EZD-RGB-WM Wall Switch
Operating Voltage
3 VDC
Battery Size
CR2032
Operating Frequency
868 MHz
FCC ID#
2ACUQ2836
FCC Statement
Safety
DO NOT install with
power applied to
controller.
DO NOT expose
the Wall Switch or
Controller to moisture.
3
4
866-590-3533
superbrightleds.com
